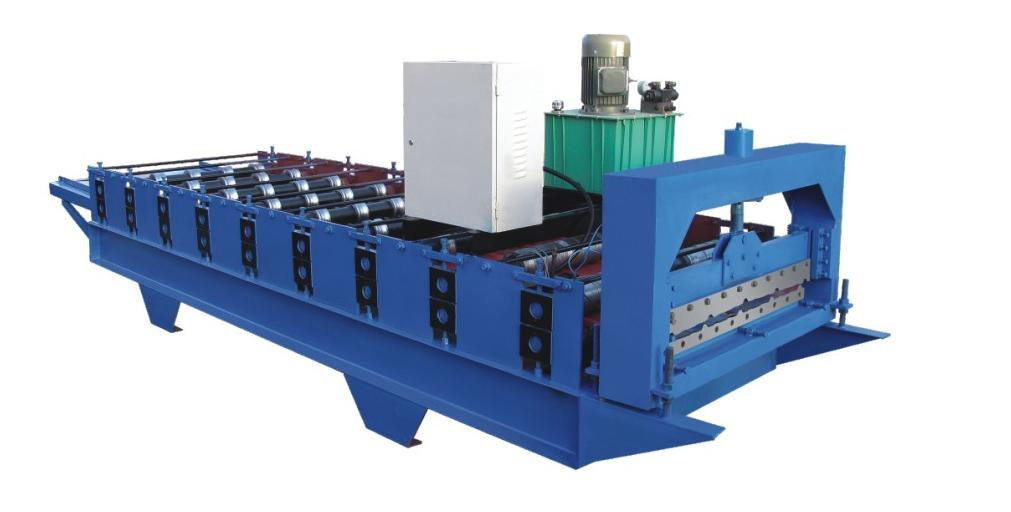

| Prod Model: |
XS-900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable To Process: |
Color Steel Plate |
| Thickness Of The Plate: |
0.3-0.8mm |
| Width Of The Plate: |
1-1.25m |
| Productivity: |
6-8m/Min |
| Size: |
5*1.4*1.21.2m |
| Weight: |
2.5t |
| Forging Forming Method: |
Mold Forging |
Product Description
Our machine has been designed according to the customers' requirment.
We can provide technical guilding, installation, debugging, production and maintenance service.
We have 9 years professional experience in the field of Roll Forming Machinery.
Main parameter
MACHINE COMPONENTS: (1) Un-coiler 1 set(2) Roll-Forming M/C 1 set(3) Hydraulic Pump station1 set(4) Hydraulic Cutting 1 set(5) PLC Control System 1 set
Rack 1set
Process flow
Feeding ---Roll Forming--Cutting --Racking
|
Suitable to process |
Color steel plate |
|
Thickness of the plate |
0.3-0.8mm |
|
Width of the plate |
1-1.25m |
|
Productivity |
6-8m/min |
|
Rollers |
10 |
|
Rolling material |
Forging steel 45# |
|
Diameter of the roller |
Φ70mm |
|
Mould material |
45#,lathe-turning,chrome-plating |
|
Frame |
250H |
|
Specifications of frame |
Q235 |
|
Thickness of the frame |
12mm |
|
Chian |
15.24mm |
|
Reducer |
NO.4(speed ratio1:59) |
|
Control system |
PLC |
|
Size |
5*1.4*1.2m |
|
Weight |
2.5t |
|
Main motor power |
3kw |
|
Hydraulic power |
3kw |
|
Voltage |
380V or 220V |
|
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
