Chemical Self-Priming Pump (ZX)

Chemical Self-Priming Pump (ZX)
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: ZX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: All
Size: 1--12inch
Working Pressure: High Pressure Pump
Position Of Pump Shaft: Horizontal Pump
Impeller Number: Single-Stage Pump
Influent Type Of Impeller: Single Suction Pump

Product Description

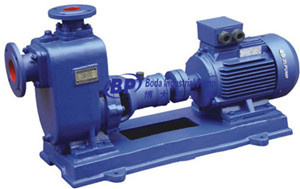

ZX centrifugal chemical self-priming pump

1. ZX chemical self-priming pump
2. Mature casting technical
3. Lost wax mold
4. Professional chemical manufaturer



Summarize:
The Series ZX self-primming pumps are newly developed self-priming centrifugal pumps for clean water or chemicals. The pumps have the compact structure, the long life expectancy and the high energy-efficiency to operate smoothly and reliably. It is just need to check the amount of liquid in the pump for self-priming before starting pumping. The self-priming centrifugal pumps are widely used for applications in the chemical, dyestuffs, petroleum, pharmaceutical, brewery, paper and pulp, metallurgical and mining industries and for oil discharge of oil carrying ships, as well as for water supply and sewage drainage of municipal, industrial and emergence services.


Main Advantages:
a) has compact structure, convenient operation, stable operation, easy maintenance, high efficiency, long service life, and a self-priming function etc
b) In pipeline no need to install bottom valve, before work only to ensure the pump body reservoir has led to a quantitative liquid.
c) simplifies the pipeline system, and improves the working conditions



Application:
a) It is applicable for city environmental protection, building, fire control, chemical engeering, pharmacy, dyestuff, printing and dyeing, brewage, electricity, electroplating, paper making, petroleum, mine, equipment cooling, tanker discharging, etc.

b) It is applicable for clear water, seawater, liquid containing acid or alkali chemical medium, and generally pasty slurry.

c) It can work with any types and specifications of filter press, so it is an ideal type to deliver the slurry to the filter for the filter pressing.

Model Capacity Q Head
(m)
Suction
(m)
Speed
(r/min)
Self-priming performance (min/5m)    Power (Kw)
(m 3 /h) (L/s) Shaft Motor
25ZX3.2-20 3.2 0.9 20 6.5 2900 1.9 0.46 1.1
25ZX3.2-32 3.2 0.9 32 6.5 2900 1.8 0.8 1.5
40ZX6.3-20 6.3 1.8 20 6.5 2900 1.9 0.87 1.5
40ZX10-40 10 2.8 40 6.5 2900 1.5 2.7 4
50ZX15-12 15 4.2 12 6.5 2900 2.4 1.1 1.5
50ZX18-20 18 5 20 6.5 2900 1.9 1.8 2.2
50ZX12.5-32 12.5 3.5 32 6.5 2900 1.5 2.1 3
50ZX20-30 20 5.6 30 6.5 2900 1.5 2.6 4
50ZX14-35 14 3.9 35 6.5 2900 1.5 2.7 4
50ZX10-40 10 2.8 40 6.5 2900 1.5 2.7 4
50ZX12.5-50 12.5 3.5 50 6.5 2900 1.4 4.3 5.5
50ZXZX15-60 15 4.2 60 6.5 2900 1.3 6.2 7.5
50ZX20-7.5 20 5.6 7.5 6.5 2900 1.3 9.8 11
65ZX30-15 30 8.3 15 6.5 2900 2 1.9 3
65ZX25-32 25 6.9 32 6 2900 1.5 4.4 5.5
80ZX35-13 35 9.7 13 6 2900 3.4 1.9 3
80ZX43-17 43 12 17 6 2900 1.8 3.1 4
80ZX40-22 40 11.1 22 6 2900 1.9 4.4 5.5
80ZX50-25 50 13.9 25 6 2900 1.5 5.2 7.5
80ZX50-32 50 13.9 32 6 2900 1.5 6.8 7.5
80ZX60-55 60 16.7 55 6 2900 1.5 15 18.5
80ZX60-70 60 16.7 70 6 2900 1.2 20.1 22
100ZX100-20 100 27.8 20 6 2900 1.8 7.8 11
100ZX100-40 100 27.8 40 6 2900 1.8 16.3 22
100ZX100-65 100 27.8 65 6 2900 1.8 27.7 30
100ZX70-75 70 19.4 75 6 2900 1.8 24.3 30
150ZX170-55 170 47.2 55 5 2900 1.8 39.2 45
150ZX170-65 170 47.2 65 5 2900 1.3 46.3 55
150ZX160-80 160 44.4 80 5 2900 1.2 53.6 55
200ZX400-32 400 111.1 32 5 1450 2 52.1 55
200ZX280-63 280 77.8 63 5 1450 1.5 73.9 90
200ZX350-65 350 97.2 65 5 1450 1.5 97.2 110
250ZX550-32 550 152.8 32 5 1450 2 72.3 75
250ZX400-50 400 111.1 50 5 1450 2 80 90
250ZX450-55 450 125 55 5 1450 2 102.1 110
250ZX400-75 400 111.1 75 5 1450 1.5 125.6 132
300ZX600-32 600 166.7 32 5 1450 2 79.2 90
300ZX500-50 500 138.9 50 5 1450 2 104.6 110
300ZX550-55 550 152.8 55 5 1450 2 117.6 132
Shijiazhuang Boda Industrial Pump Co., Ltd is a corporation working for international pump market in P. R. C. It mainly operates pump & pump driven equipments, pump parts & resistance wearing castings, others hydraulic machinery, accessories etc. The products contain slurry pumps, API 610 petrol-oil & chemical pumps, waters pumps which have tens of series, more than one hundred varieties, thousands of models. They are widely used in mining, metallurgy, coal mining, electric power, petroleum, chemical, water supply and drainage industry and so on.
Boda is specialized in the manufacture and sales of slurry pump and pump parts. The slurry pumps are designed for the harshest abrasive and corrosive pumping environments. They can be made of high chrome, a wide variety of elastomers or the latest in ceramic materials for longer service life and higher efficiencies. Also they are parts interchangeable with one of the most recognized brands worldwide in the slurry pump business.
It is our eternal pursue to do our best to meet the customer's requirements. We are always maintaining the operation principle "First class quality, Advanced technique And Best service". We receive the reputation of several firms in the world for high quality, fair price, in time delivery. Our company has a company tenet ' Moral Team, Good Quality Product, Brand Service' and a principle 'Quality is No. 1, Customers are Paramountcy' in order to provide clients an excellent product and satisfied service.
