Casting & Forging Manufacturers and Factories

Home Casting & Forging Products Centrifugal Spinner Machine/ Garment Extractor (SS75) CE Approved & SGS Audited

Centrifugal Spinner Machine/ Garment Extractor (SS75) CE Approved & SGS Audited

Centrifugal Spinner Machine/ Garment Extractor (SS75) CE Approved & SGS Audited
Price: US $ 1600-4000UNIT
Trade Terms: FOB,CFR,CIF
Min Order: 1UNIT
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: SS751-500/SS754-1200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operational Method: Continuous, Continuous~
Structure: Three-Legs Suspended Structure
Operation Pressure: No Pressure
Movement Way: Extracting or Squeezing
Heating Mode: No Need Heating
From Min. Capacity To Max. Capacity: From 25kg to 500kg
Capacity In Dia In Mm: From 500mm to 1500mm
Capacity In Dia In Inch: From 20'' to 60
Material: Stainless Steel 202 or 304 or 316 Grade
Certificates: ISO CE
Dewatering Capacity: From 25kg to 500kg
Dewatering Speed: From 1000rpm to 750rpm
Motor Power: From 1.5kw to 10kw
Specification: From Dia 500 to 1500mm
Dimension: 2000*2000*1020mm
Net Weight: From 220kg to 2800kg

Product Description

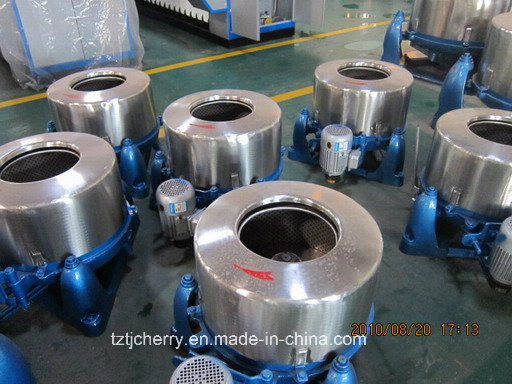

SS751-754 series extracting machine:

1. Extracting machine, Industrial extracting machine, Commercial extracting Machine, Hydro extractor, Dewatering machine, Industrial dewatering Machine, Automatic extracting machine, Hydro extracting machine

2. Three-legs suspended structure consists of the following parts: Triangle basement, casting steel legs, drum, outer body, motor and brake device in the machine which can be stopped in short time.

3. Independent three legs suspended instruction can avoid shock caused by unbalanced loading.

4. Equipped with special brake arms which is durable and reliable make the machine safer.

5. The motor will start with slow speed then to the required speed gradually. Then drum will be driven by triangle rubber belt, running smoothly and synchronously.

6. Stainless steel inner drum and body.

7. High efficiency, easy operation, low noise and safety, and used widely in the field, such as hotel, restaurant, laundry house, water washing plant, and laundry equipment for garment, fabric, apparel.

8. The drum size is from 500mm to 1500mm and its capacity is from 25kg to 220kg.

9. CE and ISO9001 certificates.

10. Packing: With wooden box
modelcapacity
   (kg)
   motor
   power
    (kw)
Rotate speed
r/min
drum diameter
(mm)
Drum height
(mm)
overall dimensions
(mm)
weight
( kg)
SS752-500251.510005002601000*1000*650220
SS752-600452.210006003001250*1250*700420
SS753-8008049108003401500*1500*800720
SS751-10001305.590010003801800*1800*9001050
SS754-12002207.575012004802000*2000*10201500
SME301-1505001075015006002550*1950*14002800

Taizhou Tongjiang Washing Machinery Factory is specializing in producing textile washing machines with various specifications available.

Our main products include industrial washing machine, extracting machine, fully-automatic washer and extractor, drying machine, ironing machine, carpet washing machine and laundry equipment, etc. These products are new in type and low in power consumption. They are widely used in various trades, such as textile, printing, dyeing, silk, garments and chemical industries, hotels, restaurants, hospitals and laundry houses.

Recently, our factory successfully developed a chlorine washing machine and a foam washing machine which filled up domestic blank. They can replace the ones we had always imported from the USA.

Our products have a ready market not only in China but also in Southeast Asia. We ensure superb quality and reasonable price. We take full responsibility of repair, replacement or refund if serious quality problems happen. All our products enjoy life-long service and all the spare parts for them are available.

You are welcome to visit our factory and order our products.
