Casting Steel Aluminum Ingot Molds
Price: |
US $ 1600-2000/Ton |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P |
Prod Model: |
ingot mold |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Surface Treatment: |
Sand Blast |
Tolerance: |
Gtb 19 DIN 1683 |
Delivery Condition: |
Grinding and Painting |
Certificate: |
En 1024 3.1 |
Material: |
Steel |
Application: |
Metallurgy |
Product Description

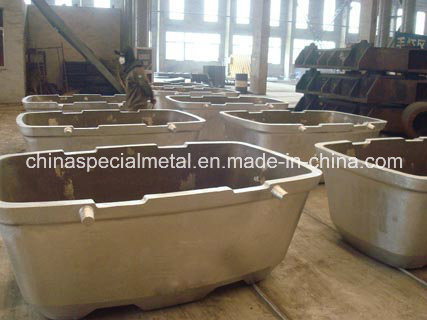

Casting Steel Aluminum Ingot Molds
Ingot mould, which is used in metallurgical and melting fields, is a cast mold in which the liquid steel solidificated into a ingot.
Material
We CSM ingot moulds are made from Cast Ductile Iron and Cast Steel.
Cast Ductile Iron is similar to following material standard:Standard Specifications for Cast iron |
Country | Standard | Grade |
Australian | AS 1831 | 450-10 |
USA | ASTM A 536 | 64-45-12 |
Europe | EN 1563 | GJS400-15 |
Japan | JIS G5502 | FCD450-10 |
International | ISO 1083 | 450-10 |
All the material will according to customer specific requirement.
Cast Steel Ingot mould, which is similar to the following standards, we will offer the material specification as you required.Standard Specifications for Cast Steel |
Country | Standard | Grade |
United Kingdom | BS 3100:1991 | A2 |
USA | ASTM A 27 | 60-30 |
Germany | DIN1681 | GS45 |
Japan | JIS G7821:2000 | SC42 |
International | ISO 3755:1991 | 230-450 |

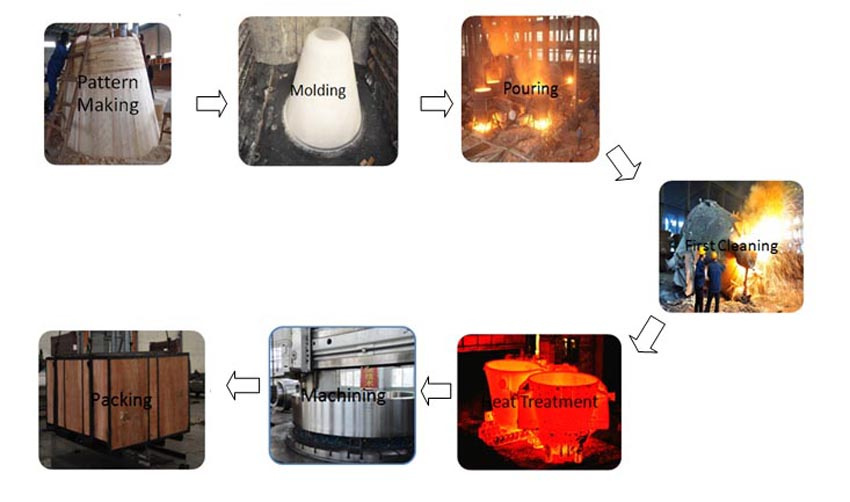

Production Process
1. Wooden pattern Production
2. Molding
3. Pouring
4. First cleaning5. Heat treatment - grinding (inspection)6. Rough machining (inspection)-finishing machining (inspection)7. Packing-deliveringQuality Assurance The fabrication route is governed by the provisions of the implemented Quality System ISO 9001: 2000. The standard documentation ensures the full traceability of every process step:Manufacturer test certificates according to DIN EN 10.204 § 3.1 including chemical composition, mechanical properties and non-destructive examination;Dimensional check supported with a "as-built" sketch;Record of the heat treatment chart
China Special Metal Group Limited (CSM), a supplier of metal material & machinery products, devotes to offer high quality of castings, high-precision machining products, welded fabrications and forgings to valued customers from all over the world. Meanwhile, we offer the design engineering and turnkey project as well.
Our group owns four mainly manufacturing bases. Casting bases in Xinxiang and Yiyang; The welding fabrication base in Wuxi; Special alloy base in Xi'an. Our Shanghai base is the commercial and engineering center. We have our own ISO 9001 certificate.

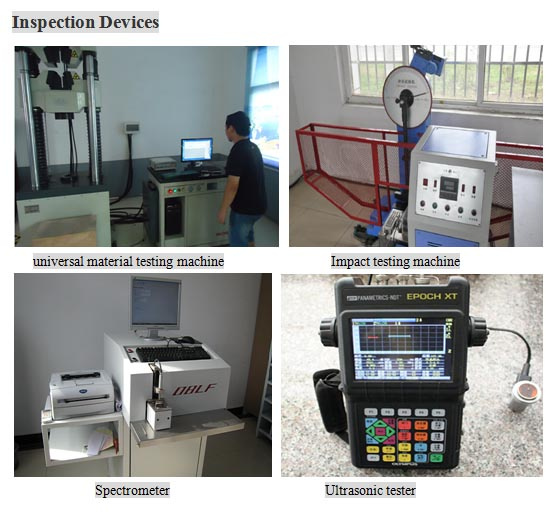

We have 2 sets of 30 Ton alkaline electric arc furnace; 8sets of transferring ladle with capacity of 35ton, 50tons, and 75tons; 2 sets of baked charter; 4 sets of large heat treatment furnace and the supporting facilities including oxygen generation station, air compression plant, natural gas station, CO station and 22 sets of lifting equipment machines. The lifting capacity reaches 200tons. We own 5 sets of large-scale molding equipment. Meanwhile, we also have the GS1000 vacuum direct reading spectrometer made by OBLF and other inspection equipments like carbon sulfide high-speed analyzer, microcomputer three elements of high-speed analyzer, digital ultrasonic flaw detector, multipurpose magnetic powder flaw detector such as chemical equipment, except that we also own leveraged universal strength tester, SAC thumping machine. Simulating the casting process by the CAE software to ensures the new quality level castings. All the castings are process by arc gouging, carbon dioxide gas gouging, shot-blasted in order to get the surface quality.
Our products include Metallurgical equipment, Cement & Mining machinery. The castings singe weight is up to 120MT. The main products are casting ladles, slag pot, ingot moulds, mill housings, chucks, girth gear & wheel for cement and mining machinery, grinding table and grinding roller for mills, case and covers for pumps, body and beams for all kinds of machine.
