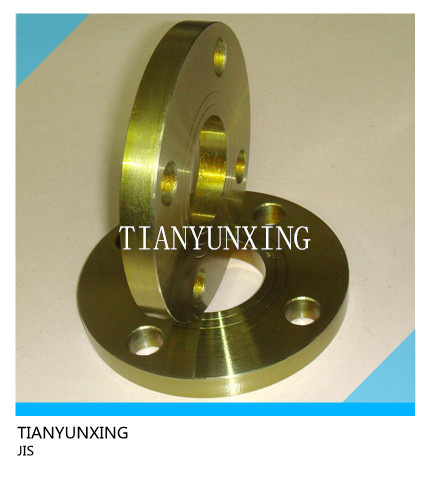

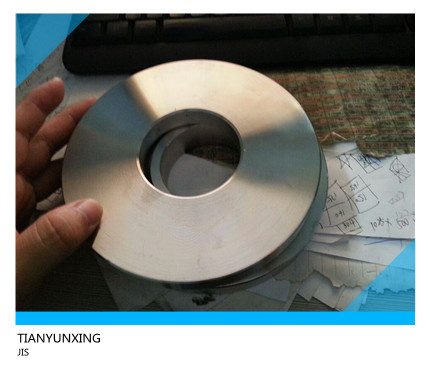

Carbon Steel 10k Sop JIS Slip on Flanges

Name: Carbon Steel 10k Sop JIS Slip on Flanges
Brand: china-castingforging.com
SKU: 663110672
Availability: InStock
Rating: 4.6 (137 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Tianjin Tianyunxing Imp. & Exp. Co., Ltd.

Showroom Product Company Profile

Prod Model:	jis
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface:	Yellow Painting
Standard:	JIS
Type:	Welding Flange
Material:	Carbon Steel
Manufacturing Way:	Forging

Product Description

JIS Flanges:

1. Size: 15mm-6000mm

2. Type: SOP

3. Standard: JIS B2220

4. Material: A105 A694F42, A694F52, A694F60, A694F65, A694F70 and so on
  F304/F304L/F316/F316L/F321/F347H/F316Ti/s3275/904L/S31803/2205/F51.
  F11, F22, F12, F5, F9, F91

5. Class: 5k,10k,16k, 20K

6. Surface:
ANTI-RUST OIL OR PAINTING

7. 8" and bellow size will packed by plywood case.
10" and above size will packed by plywood pallet

8. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on

9. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform

Materials	Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH and so on
	P250GH, P280GHM 16MN, 20MN ,20#
	Stainless Steel: ASTM A182, F304/304L, F316/316L and so on
	Alloy Steel: A182 F11, A182F22, A182F12, A182 F5, A182F91, A182 F9 and so on
Types	Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed
	Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange
	Blind Flange/Blank flange, Lap Joint Flange /LJ Flange
	Socket Weld Flange/SW Flange Threaded Flange/Screwed Flange
	Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring
	Custom Flange/Special Flange Hot/Cold/Electro Gavanized Flange
Standards	ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES
	JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504
	BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123
	GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES
Pressure &Ratings	150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5
	PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI
	PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504
	PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80
	PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80
	600kPa, 1000.1600.2500.4000.-SANS 1123
	5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503
	TABLE D, TABLE E ,TABLE F-BS 10, AS2129
	CLASS D, CLASS E, CALSS F, AWWA C207
Surface Treatment	Rust Prevention , Black Paint Coating or Phosphating Treatment with Black Color
	Varnish Paint Coating, Varnish Oil Coating,
	Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white, Coating thickness 20~30μm)
	Hot Dip Galvanizing Coating (Coating Thickness 200μm around)
Technical	Forging
Application	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry
Application	and general pipes connecting projects etc.
Inspection	Quality Control System-Well Equipments and Machinery-Well Workers and Engineers
Packing	Wooden Pallets or Wooden Cases or As Customers' Requirements
Payment Terms	L/C Or 30 % Advance By T/T and The balance Will be Paid After the copy of B/L
Delivery Time	30 Days \after the Advance or the L/C
After-Sales Service	Orders and Products Tracking System

We are Tianyunxing Imp. & Exp. Co., Ltd, which is approved by the Foreign Economic Trade Ministry of the People' S Republic of China, handling the business of manufacture and export steel pipe fittings and industrial valves. Our boss invests money to two factories, which manufacture pipe fittings, the other manufacture forged flanges. Pipe fittings are according to ANSI/ASTM, JIS, DIN, API, GOST and non-standard. The sizes are 1/2" up to 24" for seamless, 26" up to 110" for welded. 1/2" up to 6000mm for flanges and valves as per DIN, ANSI, AS, BS, JIS and we also can produce according to your drawings, 150lbs -2500lbs.

Our products have been widely used in contruction, oil field, water treatment, metallurgy, pipe lines, chemical industry and so on.

We always export our products to Europe, Russia, Vietnam, Middel east, Africa, USA, Korea, Japan, Singapore, Thailand and so on.

Looking forward to cooperating with you, and welcome to visit our factory.

You are assured you will be very happy to work with us, we wont let you down!
