| Prod Model: |
Z94/C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Mingyang |
| Model: |
Z94c |
| Usage: |
Making Mormal Nails |
| Capacity: |
200-450PCS/Min |
| Diameter Of Material: |
0.9-4.5mm |
| Warranty Time: |
12months |
| Certification: |
CE |
| Operation: |
Easy |
| Power: |
Low |
| Quality: |
Excellent |
| Type: |
Casting&Forging Machine |
Product Description

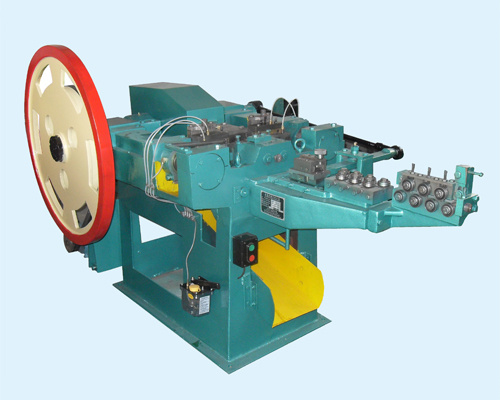

Nail making machine
Process flows:
Steel wire --- wire drawing --- nail making --- nail washing --- finished nail.
Nail making machine is a special purpose machine which is designed for processing various size of nails. The assortment of our products is complete. The nail machine is used for producing various nails and special nails. It has wide uses, simple operation, and reliable run. We will supply various machine fittings and necessary fine auxiliaries for you.
Material:
The diameter of Q195 steel/Q235 steel is 6.5mm in the market. The user can draw the steel wire by wire drawing machine. After get the diameter of steel wire you need, and then can make nails by automatic nail making machine.
Features
(1) The machine has attractive appearance, rational structure and high efficiency. It's also v durable in use, easy to maintenance with adequate durability.
(2) All the main components are made of quality steel, such as shaft, cams and gear.
(3) Use control handle at the inlet place in order to control incoming line at any time during operating.
(4) A friction gear is installed between crankshaft and flywheel. It plays a protective role of safety when the machine breaks down or overloaded.
(5) The machine makes use of full automatic production procedure. Once start, it could make nails continuously.
|
Serial number |
Product name |
Model |
Main purpose |
diameter of wire |
Power(kw) |
Weight(kg) |
Designed output |
|
1 |
Nail making machine |
Z94-5.5C |
Manufacturing 4-6 inches of nails |
3.8-5.2mm |
5.5 |
2300 |
200pcs/min |
|
2 |
Nail making machine |
Z94-4C |
Manufacturing 2-4 inches of nails |
2.8-4.5mm |
4.0 |
2000 |
260pcs/min |
|
3 |
Nail making machine |
Z94-3C |
Manufacturing 1.5-3 inches of nails |
1.8-3.1mm |
3.0 |
1000 |
300pcs/min |
|
4 |
Nail making machine |
Z94-2C |
Manufacturing 1-2 inches of nails |
1.2-2.8mm |
2.2 |
800 |
350pcs/min |
|
5 |
Nail making machine |
Z94-1C |
Manufacturing 0.5-1 inches of nails |
0.9-1.8mm |
1.1 |
500 |
450pcs/min |
Gongyi Xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, which is the biggest manufacturing base of charcoal making machinery. And we are the one of the earliest and largest manufacturers of renewable fuel & energy equipments and related machinery.
After 15 years development, now our company becomes an independent economic entity with the integration of science, engineering and trading department. our products and are widely accepted in both domestic and world market, and also exported to more than 30 countries, such as England, Russia, Sweden, Poland, Iran, Sudan, South Malaysia, Indonesia, Vietnam, etc.
Why the client choose us, because:
1. one of the largest manufactures of the briquette machine in China
2. the earliest manufacture of the briquette machine in China with 20 years experience,
3. get the ISO certificate and SGS certificate
4. We have the test center of the machine, and we bulit one realted company ( making the briquette and charcoal )with our machine.
5. Every machine will test before delivery and we will send the test video and other realted video to our client
6. all the motor of the machine with the CE certificate
7. product quality get the local government
guarantee
8. recommend clients for free, offer the layout drawing and the profit table
9. change the electrical power for free during warranty time.
10. offer the install video and free stuff training
Our main production line include:
Charcoal / Biomass Briquette Plant for Agro-Forestry Wastes
Wood Pellet Mill / Feedstuff Pelletizing Plant
Straw fuel briquette production line
Animal feed pellet machine
Vegetable Oil Milling Plant for Food Oil or Biodesel
Roller Briquette Press for Coal / Charcoal powder
Turn-key Flour Milling Plant and Flour Milling Machines
Custom Roll Forming Mill / Cold Roll Forming Mill
High Efficiency Spindle Motors for Maching Centers
We hope sincerely to become your Chinese supplier and partner in the mechanical field.
