| Prod Model: |
AF-MIC120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Shanghai Arch Sheet Roll Forming Machinery |
| Machine Color: |
as Require |
| Machine Size: |
7.5m*1.6m*1.5m |
| Machine Weight: |
8t |
| Control System: |
PLC |
| Cutting Type: |
Hydraulic |
| Driven Type: |
Chain |
| Usage: |
Roof and Wall |
| Size Of Container: |
40gp |
| Life Long: |
10year |
| Forging Forming Method: |
Mold Forging |
Product Description

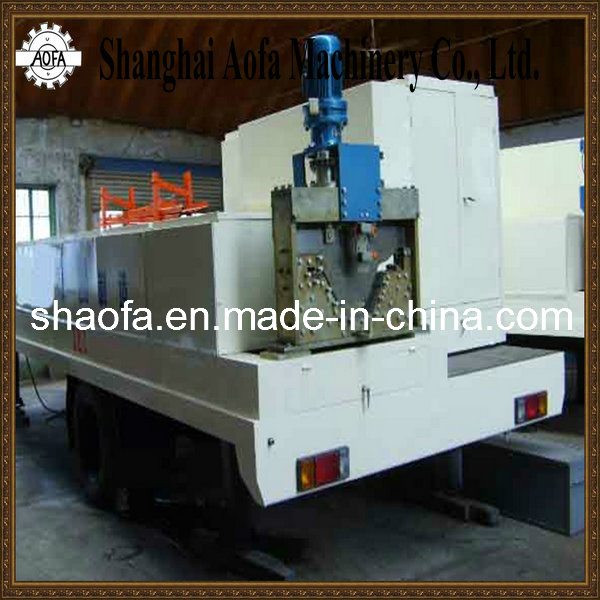

Shanghai arch sheet roll forming machinery
Other machine we manufacture
Cold roll forming mahcine, color steel roll forming machine, roof and wall panel machine, decking floor roll forming machine, floor decing forming mahcine, stud and track roll forming machine, Z and C purlin machine, highway guardrail roll forming machine, cable tray machine, and so on.
Working flow:
Decoiler-----feeding----- leveling ------roll forming ------ cutting-----curving----output table
Machine Components:
1Decoiler 1set
2Forming device 1set
3Punching device 1set
4Cutting device 1set
5Bending device 1set
6Contorl system 1set
7Output table 1set
Techical Description:
Material thicknee: 0.8-1.5mm
Effective width: 610mm
Feeding width: 914mm
Main Motor Power: 7.5kw
Cycloidal Pinwheel Reduction Box: BWD14-29-7.5KW
Drive Sprocket: Pitch of 25.4mm
Number of Rack Wall: 21
Rack: I-beam welded and destressing
Unit Dimensions: 10m× 1.3m× 1.2m
Production Speed: 0-12m/min
Axle Diameter: 70 mm and thermal fining
Number of Forming Stations: 14
Forming Shear Blade Material: Cr12
Heat Treatment of Sharing Blade: HRC58° C-62° C
Heat Treatment of rollers: 42-46 degrees
Cutting to Length: 10m/± 1.5mm
Rolling Material: 45# Steel
The product dimensions is up to the PRC's standard for Construction Product: GB/T12755-91
The single surface of Cr electroplating rollers: 0.05mm
We can produce machine as different profile drawing.
Contact person: Abby Song
Mobile number: 0086-18701854523
|
Terms |
|
|
Payment type |
35% T/T prepaid and balance should be paid before loading |
|
Delivery time |
30days after receving advance payment. |
|
Guarantee period |
18monthes free service/ pay service all the machine life |
|
Installation and training |
If buyers visit our factory and check the machine,
we will teach you how to install and use the machine,
and also train your workers/technician face to face.
Without visiting, we will send you user manual
and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,
please arrange board and lodging and other necessary things. |
We mainly supply high quality roll forming machine. We have achieved good performance up to now, sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
Our factory mainly produce all kinds of roll forming machine, for example, rofo sheet roll forming machine, c purlin roll forming machine, glazed tile roll forming machine, deck floor roll forming machine, sandwich panel production line and so on.
Our factory is established form 2010, up to now, we have sold machines to Canada, Bolivia, South Africa, Dubai, India, Russia and many other countries,
Hope we can cooperate happily
