| Prod Model: |
LJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"-96" |
| Package: |
Wooden Case |
| Pressure: |
Class150-Class2500 |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Forging |
| Standard: |
BSW |
| Type: |

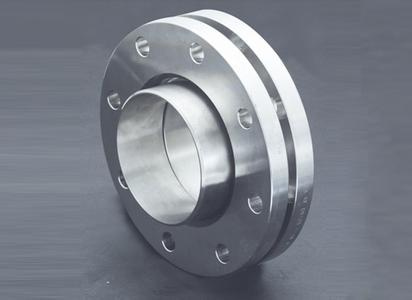

Lap Joint Flange |
Product Description
Size: DN15--DN2000, DN15--DN1500
Material: Carbon Steel, A105, P250GH, P245GH, C22.8, SS400, SF440A, S235JR
Standard: DIN, ANSI B16.5. EN1092-1. DIN. JIS. GOST
Model Number: Forged flange
Standard or Nonstandard: Standard
Shape: Roundsurface treatment: Antirust oil
Packing: Wooden pallets
Superiority: TUV. PED. CE / ISO9001: 2008
Flange Type: SO Flange, WN Flange, BLD Flange, W Flange, H Flange
1) ANSI B16.5, ASME B16.47 FLANGE
Size range: 1/2" to 80" DN15 to DN2000
Design: Welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: Carbon steel A105, stainless steel 304/304L, 316/316L
Coating: Black paint, yellow transparent paint, cold and hot DIP galvanize
Package: Seaworthy plywooden case, wooden pallet
2) EN1092-1 FLANGE
Size range: DN15 to DN2000
Design: Type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking
Type12 slip on flange, type 13 threaded flange
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material: Carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L
Coating: Black paint, yellow transparent paint, cold and hot DIP galvanize
Package: Sea worthy plywooden case, wooden pallet
3) DIN FLANGE
Size range: DN15 to DN2000
Design: Slip on flange DIN2573, 2576, 2502, 2503, 2543, 2545
Welding neck falnge DIN2631, 2632, 2633, 2634, 2635
Blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40
Threaded falnge DIN2565, 2566, 2567, 2567
Loose flange DIN 2641, 2642, 2656, 2673
Material: Carbon steel ST37.2, stainless steel 1.4301, 1.4404
Coating: Rust-proof oil, transparent paint, cold and hot galvanize
Package: Sea worthy plywooden case, wooden pallet
4) GOST FLANGE
Size range: DN15 to DN 2000
Design: Plate falnge 12820-80, welding neck flange 12821-80
Pressure: PN6, PN10, PN16, PN25, PN40
Material: Carbon steel CT-20, stainless steel 304/304L, 316/316L
Coating: Rust-proof oil, cold and hot galvanize
Package: Sea worthy plywooden case, wooden pallet
5) JIS FALNGE
Size ragne: 15A to 2000A
Design: SOP, BIND, SOH,
Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K
Material: Carbon steel SS400, stainless steel SUS304, SUS316
Coating: Rust-proof oil, cold and hot galvanize
Packing: Sea worthy plywooden case, wooden pallet
Founded in 2007, covers an area of 12, 000 square meters, 130 km east of Shanghai, close to Shanghai-Nanjing Expressway, location and convenient transportation. Companies with an annual output of more than 3, 000 tons of all kinds of flanges. Of stainless steel, special steel, carbon steel, alloy steel, duplex steel and other materials, are exported to Japan, the U. S., France, Germany, Italy and other countries and regions. The company has import and export rights, to undertake foreign direct customer orders, in accordance with JIS, ANSI, EN, DIN, BS, GB, SABS other domestic and international standards of production standard flanges and forgings, but also according to customer's drawings or samples require the production of non-standard parts. Company production equipment, from blank to finished full quality control, strong technical force, and has a perfect quality assurance system and a set of modern physical and chemical detection equipment. In recent years, has passed the ISO9001 quality system certification, the German TUV Rheinland ISO9001 & PED certification, special equipment (pressure pipe) manufacturing license. Stable quality, reasonable price, quality service, welcome your guidance!
