Aluminum/Alumina/Al2O3/Aluminium Ceramic Foam Filter

Name: Aluminum/Alumina/Al2O3/Aluminium Ceramic Foam Filter
Brand: china-castingforging.com
SKU: 685070442
Availability: InStock
Rating: 4.5 (146 reviews)

Price:	US $ 0.05-0.10piece (depend on size)
Trade Terms:	FOB,CFR,CIF
Min Order:	200piece (depend on size)
Pay Type:	T/T

Contact Supplier

Beihai Xiaoming International Import and Export Trading Co., Ltd.

Showroom Product Company Profile

Prod Model:	CFA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specification:	Diameter=30~500mm H=5~20mm
Ppi:	10-60ppi
Thickness:	12-25mm
Application:	Alumina Alloy Foundry
Feature:	Long Time Materials
Type:	Refractory Material
Shape:	Rectangle, Round, Square
Refractoriness (',℃):	1200 Celsius Degree
Material:	Alumina

Product Description

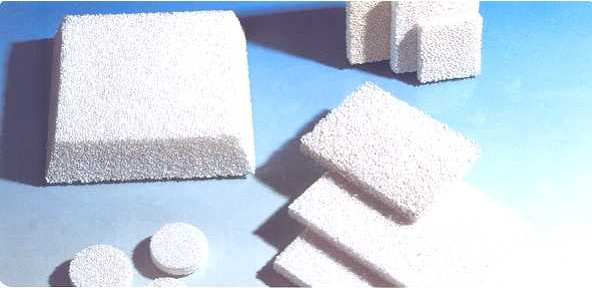

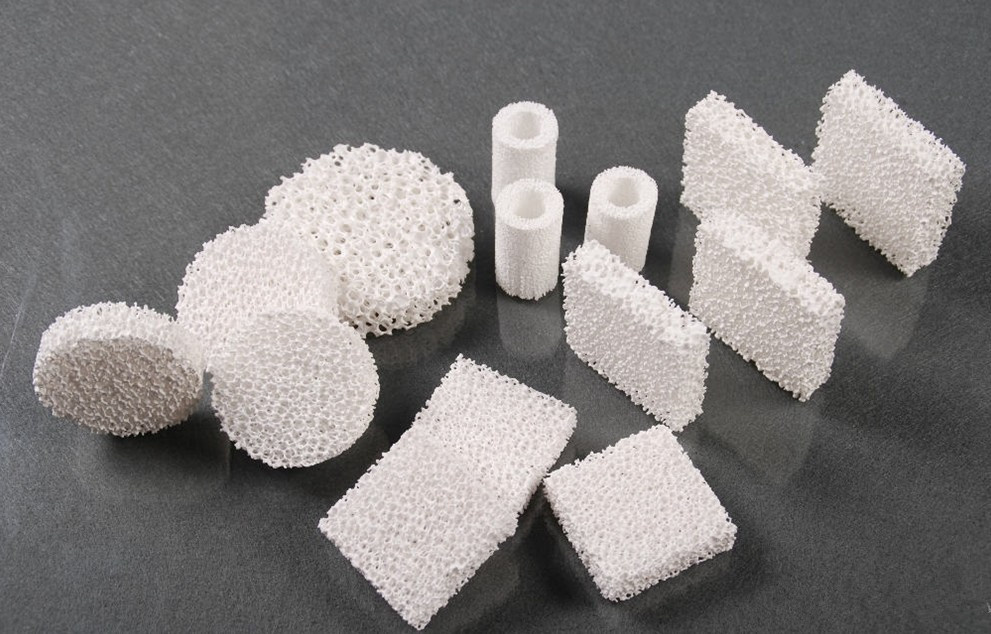

Alumina Ceramic Foam Filter
Ceramic foam filters are different from aperture specifications from 10 to 45ppi, with different sizes and shapes. Besides the general specification ,we can offer the product according to the customers requirements. Even aperture, high porosity, proper sinter, high strength of anti-flexing and anti-compression, effective filtering. It is widely applied to the aluminium fusant filter equipment of continuous casting, half-continuous casting, gravity casting, and low pressure casting.

Specifications
*even aperture, high porosity, proper sinter
*high strength of anti-flexing and anti-compression

Production process
*three-dimensional network structure and connected pores organic foam
*using four correction center distance and automatic extrusion
*1320ºC Drying and solidification

Application
*Effectively remove and absorb impurities
*Improve the surface quality, product performance and microstructure effectiveness.
*Mainly used in the domestic, construction, electricity, condensing tubes, cable and other aluminum alloy precision casting.

Thickness mm	Aperture PPi	Volume intensity g/cm3	Tortuous intensity in normal temperature N/cm2	Pressure resistence intensity in normal temperature N/cm2	Pressure resistence intensity in high temperature N/cm2	Refractory temperature	Air discharging capability cm3/g	Porosity %
15-100	10-45	0.35-0.45	≥38	≥80	≥45	≥1800	≤5	≥85

Specification mm	Area M2	Maximum metal volume of pouring (kg/min)	Optimum volume of pouring (kg/min)	Typical capacity of filtering (T)
178X178X50	0.0213	57.00	25-45	4.2
229X229X50	0.0387	118.00	35-102	6.9
305X305X50	0.0745	198.00	90-165	13.8
381X381X50	0.122	325.80	130-265	23.2
432X432X50	0.160	427.20	210-350	34.5
508X508X50	0.227	606.60	280-465	43.7
585X585X50	0.341	772.20	370-540	57.3

Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company. It cooperate with and invest to make to the funds in form of company in A large-scale enterprises, BoCent Advanced Ceramic Co., Ltd. This corporation is the biggest enterprise which devote to High-tech at saving energy and environmental field. BoCent Advanced Ceramic is professional manufacturer for environmental ceramic product, such as storage filter, foam filter, DPF and catalyst converter, infrared burning plates. As one of Shareholders, Beihai Xiaoming primarily responsible for Overseas Market Operation.

With the speedy development of solar industry, Beihai Xiaoming International Imp&Exp Co., Ltd interested to set foot in the Great Green Solar Industry and built up manufacture base in Nanning for research & develop, manufacture and sell solar modules, solar power supply system, solar lighting system, solar pumping/ irrigation system and other solar application products etc. The base covers and area of 3600 square meters with luxurious show room and dust-free workshop, equipped with many kinds of high advance and sophisticated devices and instruments

Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.

We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.

With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
