Product Description
Line Forming Machine

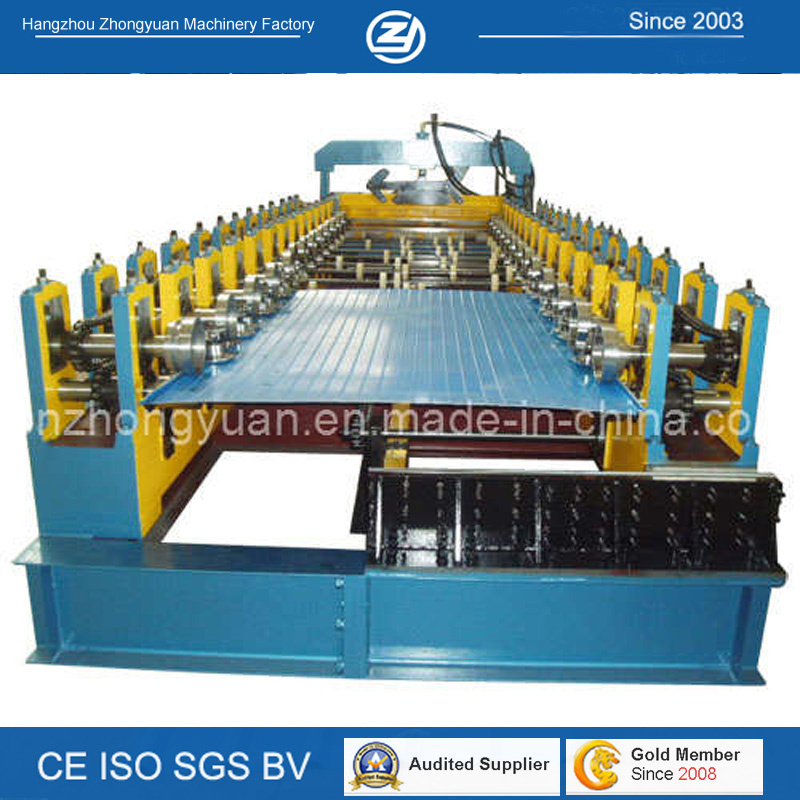

Adjustable cold roll forming machine, line cold roll forming machine; Garage door roll forming machine
Machine's Feature
It is composed of about13 groupsof adjustable width roller. One side fixed, one side can be adjusted by screw. In the middle there is upper-lower press material wheel, it is used to clamp material, make sure the material will not curve when forming in the middle.
Components of machine
This machine line is composed of decoiler, feed guide panel, feeding roller, bend grooving roller, width adjustable roll forming main machine and electronic control system.
Main technical parameters
1. Suitable material: Color steel sheet
2. Thickness of raw material: 0.4-0.7mm
3. Yield strength of material: 235MPa-345MPa
4. Forming speed: About 20m/min
5. Power requirment: Main motor power: 5.5kw, hydraulic station power: 2.2kw
6. Uncoiler's loading capacity: Max 5000kgs
7. Controlling system: Mitsubishi PLC&converter
8. Machine dimension: About 10m*1.7m*1.5m
9. Total weight: About 6500kg
| Item | Specification |
| Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness (mm) | 0.4-0.7 |
| Width (mm) | 500-1300 |
| Yield strength (mpa) | 235-345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 20 |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mold steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power (kw) | 5.5 kw (Depend on final design) |
| Hydraulic station power | 2.2 kw (Depend on final design) |
| Total power (kw) | 7.7 kw |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) |
| Machine`s net size | About 10*1.7*1.5m (Depend on final design) |
Components of machine |
|
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 1set |
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting – Product to Run Out Table |
|
