| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection: |
Flange |
Product Description
1; Ductile iron GGG50 material with FBE coated
2; Working pressure; PN10, PN16
3; According to en545, en598, ISO2531, manufacturing
4; Equipped with galvanized steel boits, nuts
5; EPDM OR NBR rubber seal.
Size; DN40-DN1600
|

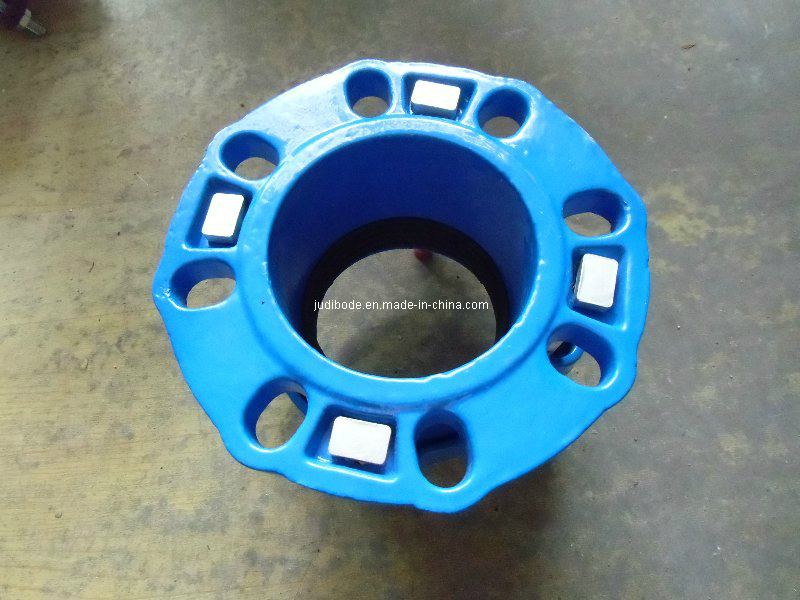

Nuiversal Flange adaptor specification |
|
|
pipe DN |
Range(mm) |
Flange Body |
Bolts |
Casting |
|
length (mm) |
length(mm) |
weight Kg/pc |
|
50 |
58-72 |
76 |
M12X130 |
3.4 |
|
65 |
72-85 |
76 |
M12X130 |
4.1 |
|
80 |
84-106 |
76 |
M12X140 |
4.9 |
|
100 |
108-128 |
76 |
M12X140 |
5.5 |
|
125 |
132-146 |
76 |
M12X140 |
9.5 |
|
150 |
159-182 |
76 |
M12X140 |
8.8 |
|
175 |
192-210 |
76 |
M12X140 |
10.5 |
|
200 |
218-235 |
76 |
M12X140 |
12 |
|
250 |
250-267 |
85 |
M12X150 |
18.7 |
|
250 |
262-289 |
85 |
M12X150 |
21.5 |
|
300 |
315-332 |
85 |
M12X150 |
23.5 |
|
300 |
322-340 |
85 |
M12X150 |
26.4 |
|
300 |
340-360 |
85 |
M12X150 |
27.5 |
|
350 |
351-368 |
110 |
M14X180 |
40.2 |
|
350 |
374-391 |
110 |
M14X180 |
41.8 |
|
400 |
400-429 |
110 |
M14X180 |
49.5 |
|
400 |
424-442 |
110 |
M14X180 |
52.8 |
|
450 |
455-472 |
110 |
M14X180 |
57.2 |
|
450 |
476-493 |
110 |
M14X180 |
62 |
|
500 |
500-532 |
115 |
M14X180 |
67 |
|
500 |
527-544 |
115 |
M14X180 |
68.5 |
|
500 |
555-572 |
115 |
M14X180 |
70 |
|
500 |
566-583 |
115 |
M14X180 |
71 |
|
500 |
582-599 |
115 |
M14X180 |
72.2 |
|
600 |
600-630 |
115 |
M14X180 |
83 |
|
600 |
630-647 |
115 |
M14X180 |
85 |
|
600 |
645-662 |
115 |
M14X180 |
86.2 |
|
|
|
|
|
|
Our company, Qingdao Judibode trading CO. Ltd. Is a large and professional manufacturing company.
Our main products are as below:
1; Universal couplings, universal flange adaptor, Gibault joint for PVC pipe, Quick flange adaptor for PVC/PE pipe, Saddle for PVC pipe, Universal saddle with SS band., Flange adaptor and coupling for PE/PVC pipe, dismantling joint, repair clamp, expansion joint etc. All of them are according to EN545/ISO2531 and PN10/PN16/PN25/PN40.
2; All kinds of valves, include gate valve, check valve, angle valve, air valve etc.
For surface treatment, beside Epoxy Resin power coated, Nylon coated also available.
3; Cast steel, Sand casting, Precision casting, Dewaxing casting.
The main products: Tractor Accessories, Rotavator accessories,
Excavator parts.
4; Our market: Europe(like AVK-Denmark, PAM-France), USA(Star-America), Middle-east(Amiantit-K. S. A), Africa and South-America.
5; Our capacity: 400tons/month.
