Prod Model: |
hh007 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1/2"-96" |
Coating: |
Black Painting/Epoxy Coating |
Customize: |
Available |
Package: |
Wooden Case |
Pressure: |
Class150-Class2500 |
Brand: |
Haihao |
Machining: |
Full |
Loading Port: |
Tianjin Xingang |
Payment: |
Tt or LC |
Shipment: |
by Sea,by Air or by Train,Express Company Is Ok |
Material: |
Carbon Steel |
Manufacturing Way: |
Forging |
Standard: |
Bs,En,ISO,Ns,as |
Type: |
Welding Flange |
Product Description

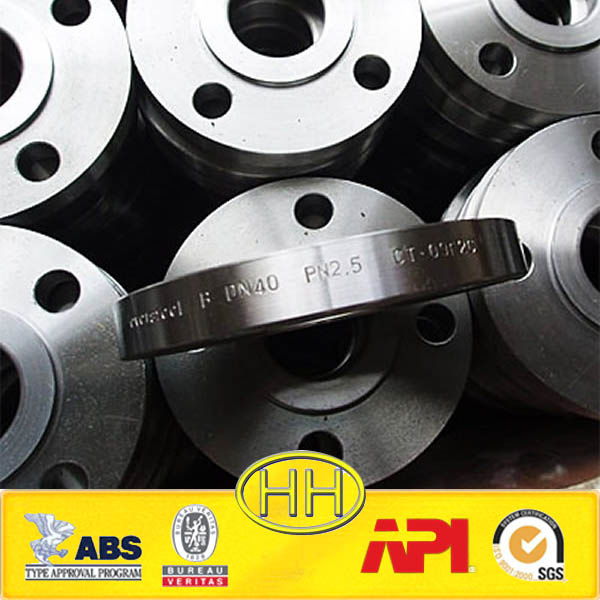

Steel Flange
Type: Slip-On, Welding Neck, Blind, Socket Welding, Lap Joint, Threaded and Plate etc.
Pressure Ratings: Class 150, 300, 600, 900, 1500 and2500.
Pressure Ratings: PN 6, PN 10, PN 16, PN 25, PN 40 and PN 64.
Pressure Ratings: JIS 5K, 10K, 16K, and 20K.
Standdard: ANSI, DIN, EN, BS, JIS, AWWA, BS and GB ect.
Material: Stainless steel, Carbon steel and Alloy steel etc.
Treatment of Prevent Oxygenizement: Oil, Paint, Galvanization or based the willing of customers.
Packing: Wooden case, sea-worthy plywood pallets or as per customers requirement.
HEBEI HAIHAO GROUP IS THE BIGGEST FORGED FLANGE MANUFACTURER IN CANGZHOU CITY, HEBEI PROVINCE.
item
|
standard No.
|
size
|
PN
|
Type
|
Material
|
1
|
ANSI B16.5
|
1/2"--24"
|
150-2500LBS
|
BL,SO,SW,LJ,WN,THD
|
A105, A350LF2, A182 F11A182 F304/F304L,F316/F316L
|
2
|
LONG WN
|
1/2"--24"
|
150-2500LBS
|
Long welding-neck
|
A105, A350LF2,A182 F304/F304L,F316/F316L
|
3
|
ANSI B16.47 A(MSS SP-44)
|
26"--60"
|
150--900LBS
|
BL,WN
|
A105, A350LF2, A694,A182 F304/F304L,F316/F316L
|
4
|
BS3293-1960 STANDARD
|
26"--48"
|
150-600LBS
|
SO,WN
|
A105, A350LF2,A182 F304/F304L,F316/F316L
|
5
|
ANSI B16.47 B(API605)
|
26"--60"
|
75--900LBS
|
BL,WN
|
A105, A350LF2,A182 F304/F304L,F316/F316L
|
6
|
ASMEB16.36 STANDARD
|
1"--24"
|
300--2500LBS
|
SO,WN,THD
|
A105, A350LF2,A182 F304/F304L,F316/F316L
|
7
|
AWWA C207
|
4"--144"
|
Class B,D,E,F T/1
|
PL
|
A105,A181 A36,
A516Gr.60,65,70
|
8
|
EN1092-1:20002 STANDARD
|
DN10-4000
|
PN2.5,6,10,16,
25,40,63,100
|
TYPE01,02,04,05,11,
12,13,21,32,33,34
|
EN10025(S235JRG2),
EN10222-2AND3
(P245GH ANDP280GH),
EN10222-5(1.4303,1.4306,
1.4307,1.4401,1.4404,
1.4435,1.4541,1.4571)
A105/C21/1.0432 C22.8/
P150GH/1.0460
|
9
|
BS4504 SEC.3.1/1989 STANDARD
|
NS15-2000
|
PN2.5,6,10,16,
25,40
|
CODE101,102,104,105,111,
112,113,121,132,133,134
|
BS970 070M20 BS4360
GR.43A BS1503-164 GR.490
BS 1503-224 GR.410
BS 1503-304S11
304S31 321S31 316S31 316S11
|
10
|
BS10-1962 STANDARD
|
NB10-3000
|
TABLE D/ E /F/H/J
|
SO THD BL WN
|
BS1501-161 GR.B AND C BS1633
GR.B BS 1503-240
GR.240 BS 1503-620 BS3604
|
11
|
ISO 7005-1 STANDARD
|
DN10-4000
|
PN2.5,6,10,16,20,
25,40,50,110,150,
260,420
|
TYPE01,02,03,04,05,11,
12,13,14,15,21,32,33,34
|
ISO2604-1 F8 F9 F13
F18 F22 F49 F62 F46 F59
|
12
|
NFE29203 STANDARD
|
DN10-600
|
PN2.5,6,10,16,20,
25,40,50,100,150,
250,420
|
TYPE01,02,03,04,05,11,12,
13,14,15,21,32,33,34,35
|
NFE29204 BF 42 BF42N
BF48 BF48N
|
13
|
JIS B2220 STANDARD
|
10A-1500A
|
PN5K,10K,16K,
20K,30K
|
SOP(PL) SOH(SO A B C ) WN
|
JIS G3101 SS41
JIS G3201 SF40A(S20C)
AND SF45A(S25C) JIS G3202 SFVC1
AND SFVC 2A
|
14
|
DIN STANDARD
|
DN10-4000
|
PN2.5,6,10,16,25,
40,64,100,160
|
SO,BL,PL,WN,LOOSE,THD
|
RST37.2/1.0038/
DIN17100C22.8/1.0460
A105/C21/1.0432 1.430 1.4307 1.4401 1.4404 1.4541 1.4571/DIN17440
|
Hebei Haihao High Pressure Flange & Pipe Fitting Group Co., Ltd. is established in 1982, covers an area of 78, 000 square meters with the building area of 55, 000 square meters. We have fixed assets of 30 million Yuan. Situated in Industrial Area of Mengcun County, the Home of Elbow and Pipe Fitting of China, With Cangzhou Port in theeast and Beijing and Tianjin cities in the north, we enjoy a convenient transportation.
We guaranteed products at a reasonable price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon. For more information, please contact us directly.
