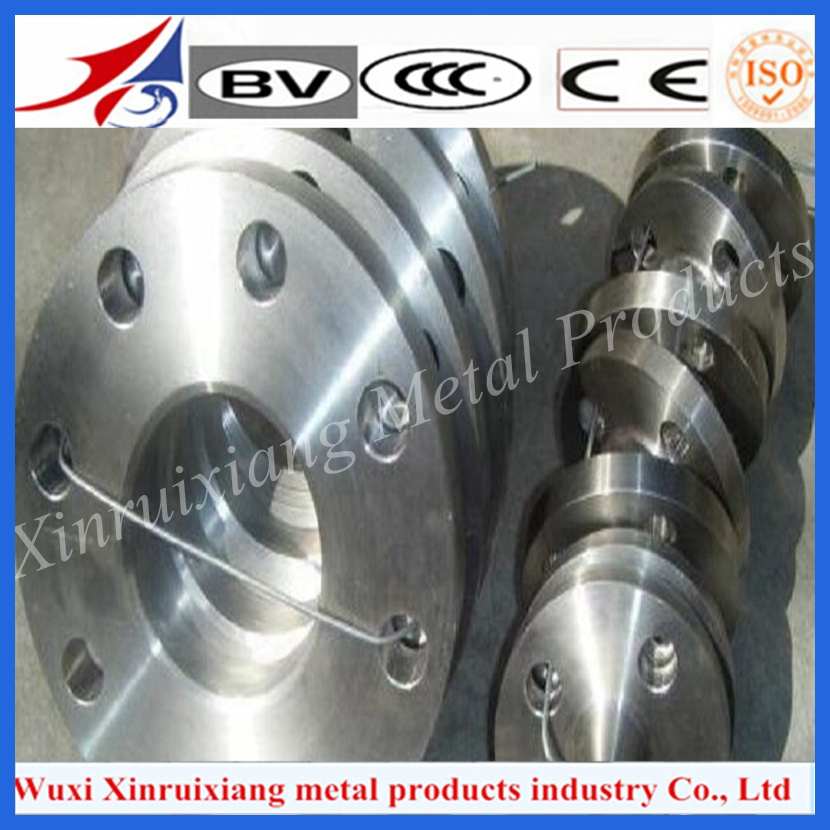

410 Stainless Steel Flange From Machinery

410 Stainless Steel Flange From Machinery
Price: US $ 1000-3000/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Ton
Pay Type: L/C,T/T
Prod Model: 410
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Stainless Steel Flange
Size: Dn10-Dn3600
Grade: 200 Series
Surface: 2b, Ba, 8k Mirror Finished, Satin, or Customized
Package: Standard Export Packing or as Your Request
Payment: T/T, L/C
Delivery Time: 20 Days for One Container After Receiving Deposit
Test: Squash Test, Extended Test, Water Pressure Test
Stock: in Stock
Sample: Free
Standard: JIS
Material: Stainless Steel
Manufacturing Way: Forging
Type: Welding Flange/Threaded Connection Flange

Product Description


SEAMLESS STEEL FLANGE PRICE LIST DESCRIPTION

 PRODUCT DESCRIPTION:
NameStainless Steel Flange
StandardASTM,GB,SUS
Material Grade201,202,2205,304,304L,321,316,316L,309S,310S,409L,410,410S,430
Main Materiala) 201 (Ni:3.50-5.50  Cr:16.00-18.00)
b) 202 (Ni:4.00-6.00  Cr:17.00-19.00)
c) 2205 (Ni:4.50-6.50  Cr:21.0-24.0)
d) 304 (Ni: 8.00-10.00  Cr: 17.00-19.00)
e) 304L (Ni: 8.00-10.00  Cr: 18.00-20.00)
f) 321 (Ni: 9.00-12.00  Cr: 17.00-19.00)
g) 316 (Ni: 10.00-14.00  Cr: 16.00-18.00)
h) 316L (Ni: 12.00-15.00  Cr: 16.00-18.00)
i) 309S (Ni: 12.00-15.00  Cr: 22.00-24.00)
j) 310S (Ni: 19.00-22.00  Cr: 24.00-26.00)
k) 409L (Ni: ≤0.6  Cr: 10.50-17.50)
l) 410 (Ni: ≤0.6  Cr: 11.50-13.50)
m) 410S (Ni: ≤0.6  Cr: 11.50-13.50)
n) 430 (Ni: ≤0.6 Cr: 16.00-18.00)
Type1.Welding neck Flange    2.Slip on
3.Blind flange                   4.Long welding neck flange
5.Lap joint flange             6.Socket welding
7.Threaded flange           8.Flat flange
SizeDN10-DN3600
ConnectionWelding, Threaded
Surface2B, BA, 8K mirror finished, Satin, or customized
PackageStandard export packing or as your request
PaymentT/T,L/C
Delivery Time20 days for one container after receiving deposit and confirmed details
TestSquash test, extended test, water pressure test,heat treatment, NDT

SURFACE TREATMENT:
SURFACEPROCESSING METHODSAPPLICATIONS
BA  Those processed with bright heat treatment after cold rolling   Kitchen utensils, Electric equipment, Building construction etc.
 2B  Those finished, after cold rolling, by heat  treatment, pickling or ther equivalent treatment and lastly by skinpass to give appropriate luster   Medical equipment, Food industry, Building construction, Kitchen utensils etc.
 No.3  Also known as griding. It is applied by using 100-120 grit abrasives.   Kitchen utensils, Buliding construction etc.
 No.4  Also known as brushed or satin finish. It is characterized by fine poslishing grit lines that are uniform and directional in appearance.  It is produced by polishing the metal with a 150-180 grit belt or wheel finish.   Kitchen utensils, Building construction, Appliances, Medical equipment etc.
HL It is produced by polishing the metal with a suitable grit abrasives to create continuous polishing streaks   Building construction, Elevator etc.
 No.1 The surface finished by heat treatment and pickling after cold rolling. The finishing is coarse in appearance.   Tank, Chemical devices etc.

CHEMICAL COMPOSITION:
    Grade            C  ≤             Si  ≤           Mn  ≤          P  ≤             S  ≤      Ni  ≤Cr  ≤
201 0.12 0.75     7.00      0.045   0.045   1.00-1.2813.70-15.70
2020.151.002.250.0450.0454.07-4.1714.00-16.00
3040.080.752.000.0450.038.00-11.0018.00-20.00
304L0.0350.752.000.0450.038.00-13.0018.00-20.00
3090.150.752.000.0450.0312.00-15.0022.00-24.00
310S0.081.502.000.0450.0319.00-22.0024.00-26.00
3160.081.002.000.0450.0310.00-14.0016.00-18.00
316L0.0350.752.000.0450.0310.00-15.0016.00-18.00
3210.04-0.100.752.000.0450.039.00-13.0017.00-20.00
4090.0891.001.000.0450.050.0610.50-11.75
4100.150.751.000.0450.030.0611.5-13.5
4200.16-0.251.001.000.0400.030.0612.00-14.00
4300.120.751.000.0450.030.0616.00-18.00

Stainless Steel Material Grades Corresponding Table
NOCHINA GBJAPANU.S.AKOREAEU BSEN
Old TrademarksNew TrademarksJISASTMUNSKS
Austenitic stainless steel
11Cr17Mn6Ni5N12Cr17Mn6Ni5NSUS201201S20100STS2011.4372
21Cr18Mn8Ni5N12Cr18Mn9Ni5NSUS202202S20200STS2021.4373
31Cr17Ni712Cr17Ni7SUS301301S30100STS3011.4319
40Cr18Ni906Cr19Ni10SUS304304S30400STS3041.4301
500Cr19Ni10022Cr19Ni10SUS304L304LS30403STS304L1.4306
60Cr19Ni9N06Cr19Ni10NSUS304N1304NS30451STS304N11.4315
70Cr19Ni10NbN06Cr19Ni9NbNSUS304N2XM21S30452STS304N2
800Cr18Ni10N022Cr19Ni10NSUS304LN304LNS30453STS304LN
91Cr18Ni1210Cr18Ni12SUS305305S30500STS3051.4303
100Cr23Ni1306Cr23Ni13SUS309S309SS30908STS309S1.4833
110Cr25Ni2006Cr25Ni20SUS310S310SS31008STS310S1.4845
120Cr17Ni12Mo206Cr17Ni12Mo2SUS316316S31600STS3161.4401
130Cr18Ni12Mo3Ti06Cr17Ni12Mo2TiSUS316Ti316TiS31635
1.4571
1400Cr17Ni14Mo2022Cr17Ni12Mo2SUS316LSUS316LS31603STS316L1.4404
150Cr17Ni12Mo2N06Cr17Ni12Mo2NSUS316NSUS316NS31651STS316N
1600Cr17Ni13Mo2N022Cr17Ni13Mo2NSUS316LNSUS316LNS31653STS316LN1.4429
170Cr18Ni12Mo2Cu206Cr18Ni12Mo2Cu2SUS316J1

STS316J1
1800Cr18Ni14Mo2Cu2022Cr18Ni14Mo2Cu2SUS316J1L

STS316J1L
190Cr19Ni13Mo306Cr19Ni13Mo3SUS317317S31700STS317
2000Cr19Ni13Mo3022Cr19Ni13Mo3SUS317L317LS31703STS317L1.4438
210Cr18Ni10Ti06Cr18Ni11TiSUS321321S32100STS3211.4541
220Cr18Ni11Nb06Cr18Ni11NbSUS347347S34700STS3471.455
AUSTENITIC FERRITIC STAINLESS STEEL (duplex stainless steel)
230Cr26Ni5Mo2
SUS329J1329S32900STS329J11.4477
2400Cr18Ni5Mo3Si2022Cr19Ni5Mo3Si2NSUS329J3L
S31803STS329J3L1.4462
Ferrite stainless steel
250Crl3Al06Crl3AlSUS405405S40500STS4051.4002
26
022Cr11TiSUH409409S40900STS4091.4512
2700Cr12022Cr12SUS410L

STS410L
281Cr1710Cr17SUS430430S43000STS4301.4016
291Cr17Mo10Cr17MoSUS434434S43400STS4341.4113
30
022Cr18NbTi

S43940
1.4509
3100Cr18Mo2019Cr19Mo2NbTiSUS444444S44400STS4441.4521
Martensitic stainless steel
321Cr1212Cr12SUS403403S40300STS403
331Cr1312Cr13SUS410410S41000STS4101.4006
342Cr1320Cr13SUS420J1420S42000STS420J11.4021
353Cr1330Cr13SUS420J2

STS420J21.4028
367Cr1768Cr17SUS440A440AS44002STS440A


Difference Between Hot Rolled Steel and Cold Rolled Steel
Hot Rolled
Hot rolling is a mill process which involves rolling the steel at a high temperature (typically at a temperature over 1700° F), which is above the steel's recrystallization temperature. When steel is above the recrystallization temperature, it can be shaped and formed easily, and the steel can be made in much larger sizes. Hot rolled steel is typically cheaper than cold rolled steel due to the fact that it is often manufactured without any delays in the process, and therefore the reheating of the steel is not required (as it is with cold rolled). When the steel cools off it will shrink slightly thus giving less control on the size and shape of the finished product when compared to cold rolled.
Uses: Hot rolled products like hot rolled steel bars are used in the welding and construction trades to make railroad tracks and I-beams, for example. Hot rolled steel is used in situations where precise shapes and tolerances are not required.

Cold Rolled
Cold rolled steel is essentially hot rolled steel that has had further processing. The steel is processed further in cold reduction mills, where the material is cooled (at room temperature) followed by annealing and/or tempers rolling. This process will produce steel with closer dimensional tolerances and a wider range of surface finishes. The term Cold Rolled is mistakenly used on all products, when actually the product name refers to the rolling of flat rolled sheet and coil products.
When referring to bar products, the term used is "cold finishing", which usually consists of cold drawing and/or turning, grinding and polishing. This process results in higher yield points and has four main advantages:
Cold drawing increases the yield and tensile strengths, often eliminating further costly thermal treatments.
Turning gets rid of surface imperfections.
Grinding narrows the original size tolerance range.
Polishing improves surface finish.
All cold products provide a superior surface finish, and are superior in tolerance, concentricity, and straightness when compared to hot rolled.
Cold finished bars are typically harder to work with than hot rolled due to the increased carbon content. However, this cannot be said about cold rolled sheet and hot rolled sheet. With these two products, the cold rolled product has low carbon content and it is typically annealed, making it softer than hot rolled sheet.
Uses: Any project where tolerances, surface condition, concentricity, and straightness are the major factors.

APPLICATIONS :
1.Water works,
2.Shipbuilding industry,
3.Petrochemical & Gas industry,
4.Power industry,
5.Valve industry,
6.General pipes connecting projects

 ADVANTAGES:
1.Corrosion resistance.
2.High temprature resistance.
3.High production ability.
4.Reasonable price.
5.Excellent quality.
6.Various size.

WHY CHOOSE US:
1, High quality: Using lastest automated control equipment to ensure 2b cold rolled stainless steel coil quality, such as AGC system.
2, Best Price: With most automated equipments to cost down.
3, Fast delivery:  Since your order placed, ETD will be only 10 days.
4,Best Sevice:  We do believe your encouragement is the best support for us

ABOUT US:
Wuxi Xinruixiang Metal Products Co.,Ltd. is a professional supplier of stainless steel products. The main products include steel sheets, steel plates, steel coils, steel pipes, steel tubes, steel bars, steel circles, square steel, hexagonal bar, steel tube, steel pipe fittings, flanges, etc. And also we can produce according to the requirements of the customer. The production capacity of our company is about 200000 tons per year.

Jiangsu Ruiyin Group Co.,Ltd is one of our factories, located in Taizhou, Jiangsu Province. The total area of factory is about 60, 000 square meters and it has its own stainless steel research and development department, production department and selling department.

As the top of consistent system of STS works, the factory have EAF(140Ton) and AOD furnace (150Ton). The other facilities include the 650 rolling mill, Direct-reading Spectrograph, universal tensile testing machine.

Strict quality control system and perfect after-sales service system are always our top concern which can guarantee and track the quality of our products from raw materials procurement, production
processes, finish products as well as after-sales service.

CONTACT US:
Company name Wuxi Xinruixiang Metal Products Industry Co., Ltd.

Company Adress No. 108, Bldg. 23, (Nanfang Stainless Steel Market) No. 289, Fangcheng Road, New Dist., Wuxi, Jiangsu, China (Mainland)

Contact person MAY
Tel0086-15716178779

Fax 0086-0510-8181-7952

Postcode214000
