Home Casting & Forging Products 3nb Series Mud Pump for Oil Drilling Rig

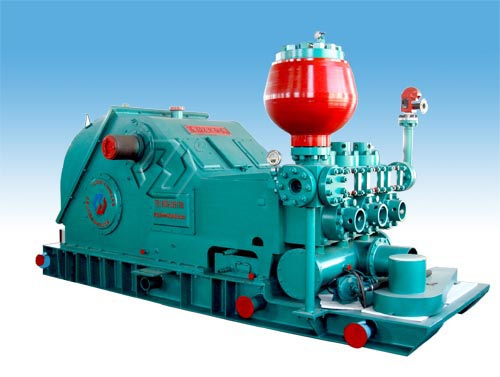

3nb Series Mud Pump for Oil Drilling Rig

3nb Series Mud Pump for Oil Drilling Rig
Price: US $ 5000-150000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: 3NB series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory: Reciprocating Pump
Drilling Rig Machinary: Triplex Mud Pump
Dimension(L*W*H): 5170*2809*2530
Structure: Multi Cylinder
Power: Hydraulic

Product Description


Quick Details

Place of Origin:

China (Mainland)

Brand Name:

HongSheng

Model Number:

NB series

Theory:

Reciprocating Pump

Structure:

Mud Pump

Usage:

Oil

Power:

Hydraulic

Standard or Nonstandard:

Standard

Fuel:

Diesel

Pressure:

Low Pressure, High Pressure

Application:

Oil well drilling

Mud pump model:

NB series

Mud pump power:

300-1200 KW

Mud pump standard:

API 7K


Packaging & Delivery

Packaging Details:
Standard Export Package Or As Your Request
Delivery Detail:within 30 days


3NB Mud Pump Design features :
The power end : The housing is welded steel-plate construction . It is stress-relieved after welding . The drive gears ate in volute type gears which allow smooth operation , high efficiency and long life . The crankshaft is a hollow one-piece steel casting . The power end is splash-Iubricate.
The fluid end : The suction and the discharge flanges conform to ASA and API specification .
The piston rod is connected with an intermediate rod by means of clamps to realize quick assembly & disassembly .
The valve seat bores have a bottom shoulders . The pistons and loners are lubricated and cooled by an independently spraying pump to have a longer service life .
Versatility in expendables.

3 NB Series Mud Pump Specifications:



Model

3NB800

3NB1000

3NB1300

3NB500C

3NB1000C

3NB1300C

3NB1600

Power KW(HP)

588(800)

735(1000)

956(1300)

368(500)

735(1000)

956(1300)

1176(1600)

Strokes per minutes (pm)

160

150

140

95

110

120

120

Stroke (mm)

216

235

245

254

305

305

305

Gear ratio

2.51

2.658

2.868

3.82

3.833

3.81

3.81

Max. working pressure

33

35

35

30

35

35

35

Max. dia of liner(mm)

160

170

171.5

160

170

180

190

Dia. Of suction pipe (mm)

257

254

257

254

305

305

305

Dia. Of discharge pipe (mm)

100

100

100

100

100

100

 100




Dongying Hongsheng Petroleum Equipment Co., Ltd. is located in Lijin Economic Development Zone. The site area of installation and commissioning of equipment is up to 6200 square meters; The building area is up to 19447 square meters; Gross site area is up to 28380 square meters. Meanwhile, total investment is up to RMB 130 million. Besides, we passed the ISO9001: 2000 international quality system certification, China Compulsion Product Certification (CCC) and API certification for multiple product; Hongsheng Petroleum Equipment Co., Ltd. Has multiple independent legal entities, such as Beijing Dongdu Hengli Trade Co., Ltd, Dongying Yue Run Petroleum Equipment Co., Ltd, Lijin Longda Instrument Factory, Dongying Qinghai Oil & Gas Co., Ltd, two Overseas Companies. Moreover, employees' education background are college degree or above while management personnel's are bachelor degree. There are nine departments for Hongsheng Petroleum Equipment, where are with 13 postgraduate students majored in mechanical design, 213 technical engineers in various professional fields and more than 630 employees. Hongsheng Petroleum Equipment actively cooperate with major science and technology organization and petroleum colleges and universities, dedicated to the popularization and application of new technology for oilfield, the production and sales of drilling equipment, supporting services for large equipment at home and abroad, the output of oil and gas technology and ground engineering. Hongsheng Petroleum Equipment Co., Ltd is one of the key science and technology enterprises supported by Dongying City, one of listed companies in Dongying City, and one of main suppliers of Shengli Oilfield, Zhongyuan Oilfield and Daqing Oilfield.

As one strong petroleum equipment manufacturer and oil & gas service provider, we are in collection of research, development, manufacture, operation and service. Our main products are pressure gauges, temperature pressure gauge, and drilling rig, workover rig, rig accessories, pumping unit, sucker rod, sucker pump, drilling pipe, oil pipe and downhole tools etc. We have advanced equipment, strong technical force. Our productions are tested by professional and technical personnels and passed the ISO9002 international quality system certification and API monogram.

With insisting in the product systematize and technicalization, development internationalization and diversity, personal quality specialize, administration scientize, our company are devoted ourself to be the leader of oil & gas equipment and service provider as an international enterprise.
