3 Roller Rolling Machine

3 Roller Rolling Machine
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: W11-10X2500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type For Bending: Mechanical
Voltage: as Customer Requirement
Electric: Siemens
Color: Optional
Quality Gurantee: 2 Years
Type: Roller-Bending Machine
Application: Machinery & Hardware

Product Description

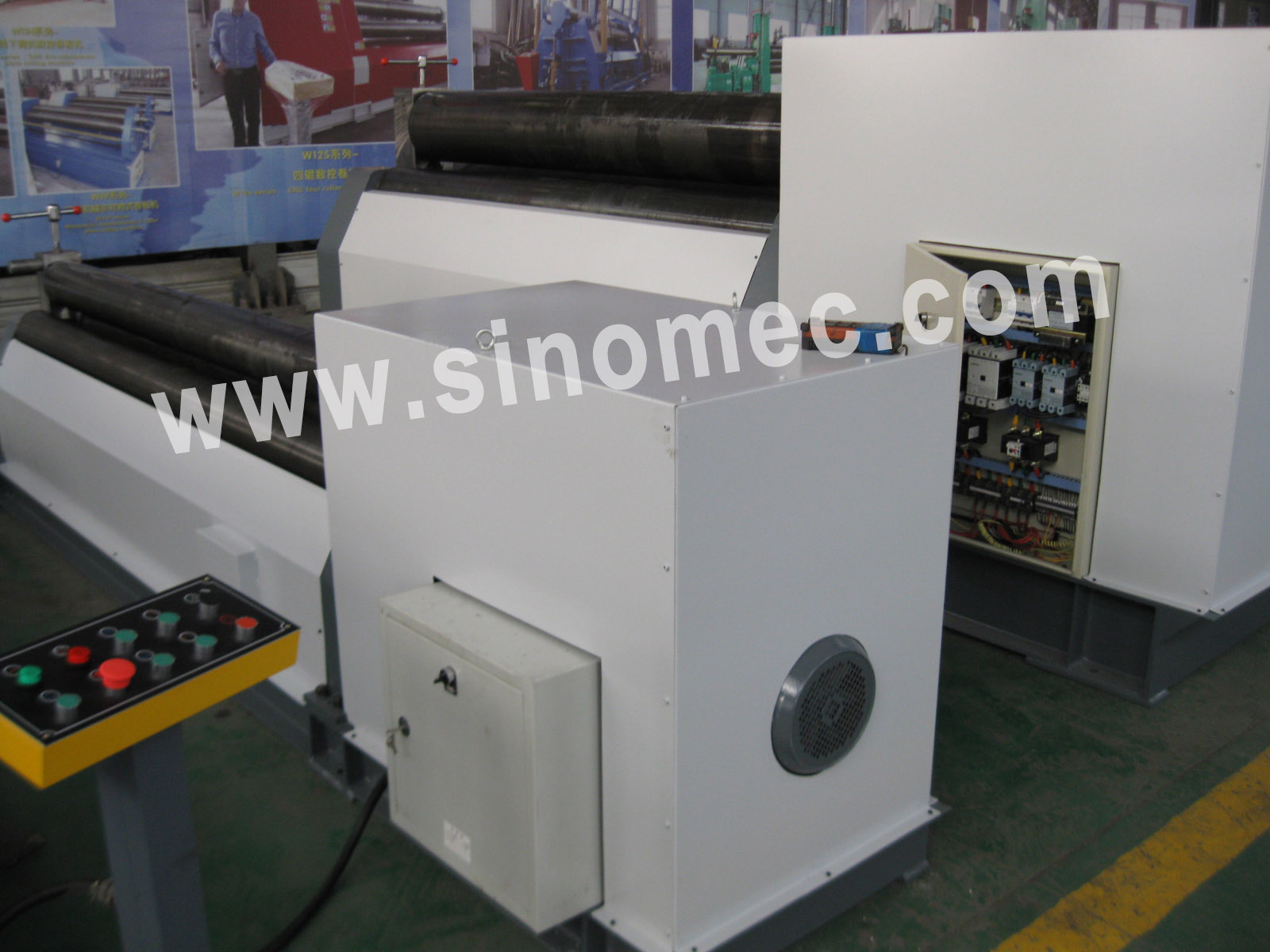

Mechanical Symmetrical 3 Roller Plate Bending Machine

1. The whole structure of Mechanical Plate Rolling machine:
1). The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the unt, the worm and the lead screw.
2). The two lower rollers rotates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the gear of the lower rollers.
3). Adapted for bending metal plate into round, arc, and so on. Its working principle is rotary bending deformation. This product is widely used in chemical industry, Cement, shipbuilding, boiler, aviation, water control project, Power Transmission Tower, metal structure and the industry of making machinery.

2. The Feature of Mechanical Plate Rolling machine:
1). The machine adopts 3-roller asymmetrical structure with the upper roller as the main drive and the lower roller making vertical movement so as to clamp the plate materials tight. The machine drive comes from the engagement between the gear of the lower roller and the gear of the upper roller.
2). The machine is the most precise 3-roll machine in its category. The RGS design reduces to a minimum the distance between the bending points guaranteeing higher bending accuracy.
3). The Ultra wide roll support with lubrication circuit is mounted within linear slides to prevent wear and tear.
4). The very high rotation power is a guarantee of the Machine superior rolling torque and speed, available without loss of energy as all three rolls are driven independently by Gear and gearboxes directly coupled to the rolls shafts.

3. Major parts of the manufacturing process:
1). Working rollers: Cast steel ingot (chemical composition analysis): Check performance-forging roughcast — Forging annealing-UT flaw — Roughing (mechanical tests)-heat treatment (hardening and tempering) — UT flaw — Semi finishing — Finishing — MT
2). Large forgings: Cylinder body, gear, gear shaft forging roughcast — Surface inspection roughing — UT flaw — UT flaw detector heat treatment — Finishing semi— Finishing — MT
3). Welding structure: Racks, chassis, wheel box Plate into the factory (chemical composition analysis, mechanical properties test) — Pretreatment — For sheet metal cutting-welding-seam UT or RT flaw — Annealing treatment — Roughing-finishing— Vibration destressing— Hot blasting — Finishing
5-4 Major parts of the manufacturing process.
Technical Parameters
Specifications ModelThicknessMaximum widthYield limitCoil velocityLoaded with minimum diameterOn the roll diameterUnder the roll diameterUnder the roll center distanceMain Motor PowerOverall Size (LxWxH)
(mm)(mm)(MPa)(m/min)(mm)(mm)(mm)(mm)(kw)(mm)
W11-6×1500615002457.1638018017021043300x1200x1340
W11-6×2000620002457.163801801702105.53300x1210x1340
W11-6×2500625002457.165001901702605.54300x1210x1340
W11-6×3200632002456.465002402003107.55200x1400x1200
W11-8×2000820002457.164501901702607.53800x1220x1340
W11-8×2500825002456.46500240200310114500x1420x1620
W11-12×20001220002456.46500240200310114060x1420x1620
W11-12×25001225002455750280240360115000x1550x1320
W11-12×30001230002455650280240360115500x1550x1320
W11-16×20001625002455750280240360114500x1550x1320
W11-16×25001625002455750330240360115000x1550x1320
W11-16×30001630002455900340280440116300x1650x1950
W11-20×20002020002455750280240440114500x1530x1320
W11-20×25002025002455850340280490155600x1630x1920
W11-25×20002520002455850340280490225100x1630x1920
W11-25×25002525002454.5900380300600306000x4600x2160
W11-30×20003020002454.5900380300600305500x1470x2160
W11-30×25003025002454.31100460380600376900x2300x2850
W11-30×300030300024551200480400600377400x2300x2650
W11-30×320030320024551200500400600377600x2300x2650

Sinomec Machine Tool manufacture Co., Ltd is manufacturer of fabricating machinery in China; Our Company covers an area of 40, 000m² With building area 31, 600m² . Our employees can reach up to 300, including 30 intermediate and senior technician and engineers. We also have professional and technical team supply novelty design and advanced production equipment enables us to turn out high quality machines.

The Company has passed the certificate of ISO9001-2000 international quality certificate, and the qualification certificate. The machines also get the CE certificate which enables it to export products to European market. We also honored with "enterprise of hi-tech". The products have won the titles of "hi-tech products", "products meeting user's satisfaction". Moreover, we have altogether four national invention patents as well as utility patents.

Our machines have been exported to Europe, America, Southeast Asia, and Middle East with high quality. We commit ourselves to cooperating with importers and exporters all over the world. Our technicians will assure you of appropriate equipment with reasonable prices. With a professional service team, they have researched technology and engine repair equipment of ship, automobile, tractor, generator for many years. We can provide best pre-sale and after-sale services to customers in the first time. Besides, we always welcome relative business partners and companies to be our distributors in your market to reach our mutual benefits.
