220V Electric Hoist, Chain Lift Equipment

220V Electric Hoist, Chain Lift Equipment
Price: US $ 402/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: PDH
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Pdh Electric Hoist
Hook: Heat Treated
Chain: Fec or Made in China
Brake System: Electromagnetic Brake
Over Load Limit: Available
Trolley Type: Available
Single Speed: Yes
Double Speed: Available
Low Headroom: Available
Chain Bag: Yes
Power Source: Electric
Sling Type: Chain
Application: Lifting Equipment
Certification: TUV

Product Description

220V Electric Hoist, Chain Lift Equipment











1. The introduction of 220V Electric Hoist, Chain Lift Equipment


1. Electric motor partial outer cover

They are made of high strength aluminum system through compression casting formation.
Features: Solid and light, Fast release heat, Continuous use, Enclosed structure. Can be used in the chemical plants, electroplating factories, and other places.

2. Side kind braking
This masterly structure ensure the hoist absolutly safty when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.

3. Gear
The gear made of alloy steel and through the heat treatment

4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.

5. Hooks
They are made by hot forging and heat treatment.

6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.

7. ISO: M5 /FEM: 2AM   Insulation grade: F

8. Protection class (hosit and push button): IP55

9. Powder supply: 3 phase, 200-600v, 50HZ

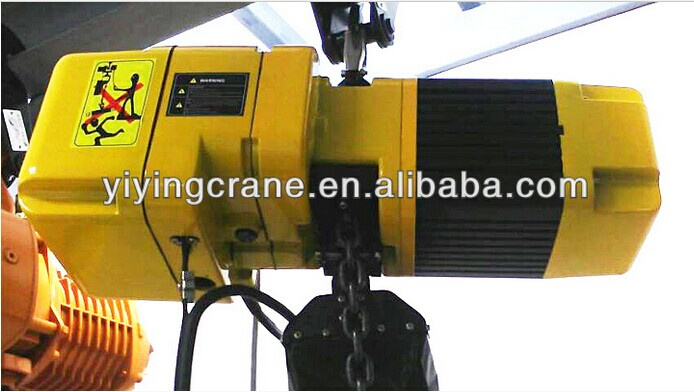

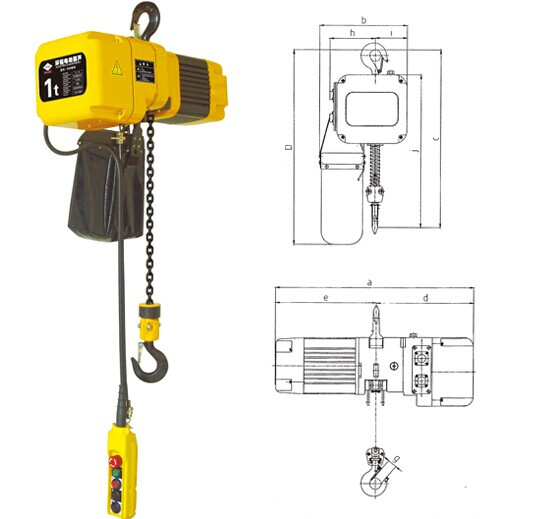

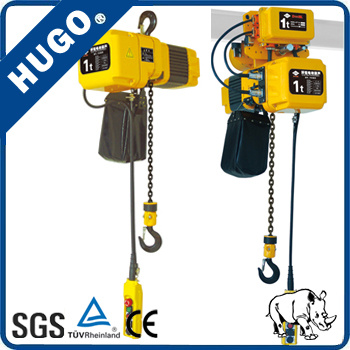

3. Detailed Pictures of 220V Electric Hoist, Chain Lift Equipment






   We have specialized in machinery for more than 25 years, electric hoists, manual hoists, lever hoists, and so on, all of them is in our line. If you have any interest, please without hesitate contact us at once. Waiting for you.

Model

Item
PDH-A-0.5 PDH-A-1 PDH-A-2 PDH-A-2.5 PDH-A-3 PDH-A-5
Capacity ( t ) 0.5 1 2 2.5 3 5
Standard lifting height ( m ) 3
Lifting Speed ( m/min ) 7.2 5.8 3.0 5.0 5.0 2.6
Lifting  Motor  Power (kw) 8 8 14 7 10 5
Volt (V)
Frequency (Hz) 50

Chain Turns  1 1 2 1 1 2
Chain specification
mm
Ø 6.3×19 Ø8×24 Ø8×24 Ø11.2×34 Ø11.2×34 Ø11.2×34
Test load (t) 0.625 1.25 2.5 3.125 3.75 6.25
Net Weight (kw) 41 45 53 108 110 130
Weight added with 1m higher  (kg) 1.1 1.4 2.8 2.8 2.8 5.6

Shanghai Yiying Crane Machinery Co., Ltd. was established in 1992, specializing in designing and manufacturing of manual chain hoist, lever hoist, electric hoists and other lifting products.

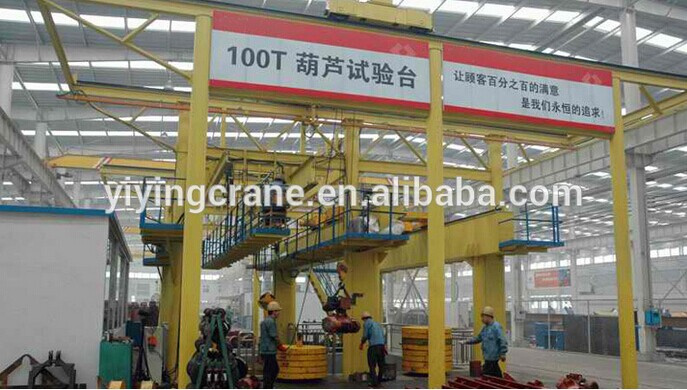

The company has been taking efforts in designing, manufacturing, sales and services nearly 20 years. Now it becomes one of the most excellent manufacturer of crane around the world. The company has total capital 50 million RMB, covers 100000 square meters, building area 75000 square meters with modern processing center, assembling center and testing center. The company has its own designing and developing ability of new product, and whole set of production equipment of lifting machinery. The sales volume reaches more than 200, 000 sets per year.
We always guarantee our design and quality following the step of times and enhance the share of international market, so the company has completely achieved quality system, such as ISO9001 and CE.
The company has been exported to almost 50 countries and regions, including Europe/ USA/Australia/Southeast Asia/South Africa, etc.
Under the principle of "QUALITY DERIVES FROM PROFESSION" Shanghai Yiying Crane Machinery Co., Ltd. Sincerely welcome all our friends from domestic and abroad to build business relationship with us!
