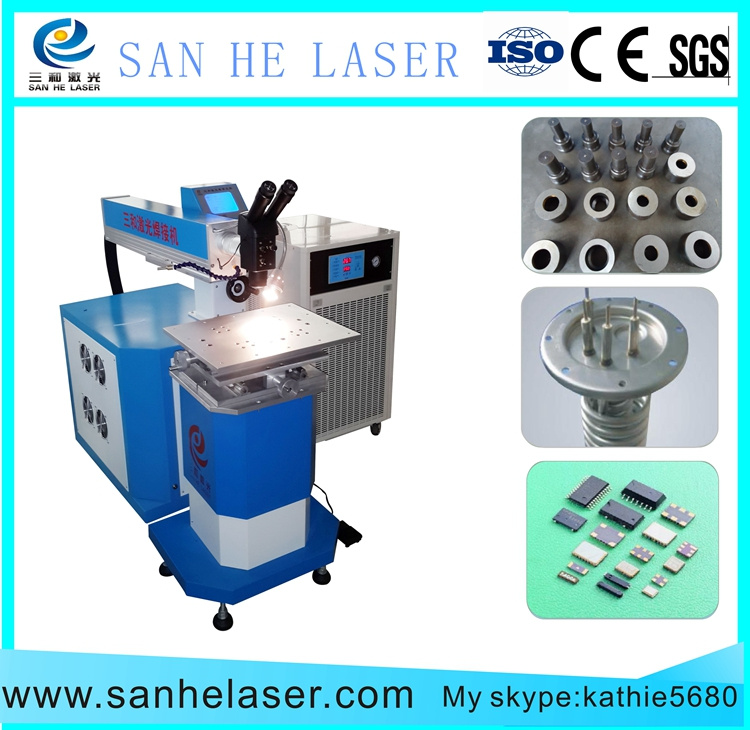

200W Metal Automatic Mold Laser Welding Machine for Die Casting

200W Metal Automatic Mold Laser Welding Machine for Die Casting
Price: US $ 6500/Set
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: SC-MJ200W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Model: 300W
Max Laser Power: 300W
Laser Wavelength: 1064nm
Spot Size: 0.2-3.0mm
Welding Depth: <(=)3mm
Machine Power: 10kw
Control System: Microcontrollers
Power Supply: 380V(+)10%
Host System Size: 560*800*400mm
Working Table Loading: 150kg

Product Description

 Details and Specifications:


Specifications
1.Model:3HE-MJ200/300/400W
2.Max laser power:200/300/400W
3.Laser type:ND:YAG
4.laser wavelength:1064nm
5.laser Spot adjust range:0.2mm-3.0mm(can optional)
6.Spot size:0.2-3.0mm
7.Pulse width:0.1ms-25ms
8.Welding depth:≤2mm
9.Pulse frequency:≤100HZ
10.Machine power:6kw
11.Position:microscope,CCD,red light
12.Host system size:560X800X400mm
13.Power supply:220V±10% /380V±10% 50Hz 60A
14.Host system size:1170X1250X560mm
15.Working table loading:150kg
Delivery&PackageDelivery Time: 3-7 days after received Advance Payment
By Vessel or Air Plane
Standard Package: Wood Carton, Carton Box
Main Advantage:

* Specifically tailored for mold industry, introduced Germany technology, using a unique structural design, suitable for all kinds of large, medium and small die patch.
* United Kingdom imports ceramic condenser cavity, corrosion resistance, high temperature resistance and Chamber life (8-10), Xenon lamp life of more than 8 million times
* Uses the world's most advanced automated blackout systems, eliminating time on eye irritation
* Laser head can be rotated 360 degrees, the overall optical path parts can rotate 360 degrees, as well as the electric lift, push, particularly suitable for all kinds of large, medium and small die patch
* Intelligent parameter adjustment using the remote control, operation simple and quick
* Electric lift the table, moving three-dimensional
* Beam spot size can be electrically adjustable

Our Serives
1. Sanhe machine is guaranteed for one year, not including normal replacement of wearing Parts.
2. Sanhe is a professional Laser marking/engraving machine and Laser welding machine manufacter.
3. Sanhe do work in teams, not just one person work with you.
4. Sanhe do the quality first (have Professional testing equipment. Include Depth Gauge, Dimensional measuring instrument...)
5. Sanhe people will be onlinein24hours(trademanager, skype, wathsapp, vibviber, QQ)

FAQ
1. Can I bargain the price?
Answer: Yes. The price list is our general price, we will offer you final price
According to your quantity and requirement so that we can enjoy long time
Business relationship profitable to both.
2. What is your minimum order quantity?
Answer: 1 sets of each model.

3. Do you have products in stock?
Answer: Sorry. If there is any, we will inform you timely.
4. How long dose it take to finish my order?
Answer: It depends on your quantity and configuration of your machine. Generally 7days for one sets.
5. How does you pack machine?
Answer: Generally All our machine are packed in wooden cases.
6. How can I know the process of my order?
Answer: Detailed picture of the production process will be sent to you to confirm before shipping, Consummation ISO9001 system makes it possible to offer you reliable quality.



Please feel free to contact me.

Dedicated to serve you
Dongguan San He Laser Technology  Co., Ltd




Dongguan Sanhe Laser Technology Limited Company is a professional manufacturer of laser equipment and the modernization of production and application of high-tech enterprises. In this eight years, Outstanding Sanhe team has been committed to the study and practice of light conversion, take lifting laser value as our business goals, take promoting Chinese national laser industry to the international for our glorious mission. We believe that if you want to succeed, you must professional, and professional derived from the practical, and pragmatic is responsible. We insist on professional skills and pragmatic approach to service each customer.

We are ISO international quality system performer. It is also the European CE mechanical testing and certification practice. With advanced technology and excellent quality to open up more and more market at home and abroad constantly. Our devices have been sold in South Korea, Thailand, Germany, the United States, Japan, Malaysia, Vietnam, the Philippines, India, Pakistan, Indonesia, Canada and other countries.

Sanhe Laser has a young, professional, innovative and passionate team for research and development and production. They witnessed the birth and beyond of every new technology. We maintain a long-term and stable cooperation relationship with Beijing Institute of Opto-electronic, Anhui Machine Institute, Huazhong University of Science, Dongguan University of Technology and other well-know Institute and Universities. For our products innovation to provide a solid technical support and security.

Our annual production capacity up to 1000 sets, include laser welding, marking cutting three series nearly hundred model products. Equipment is widely used in hardware, electronic, sapphire, medical care, jewelry, automotive, communications, printing, plastic products and more than 200 industry sectors. Some of the equipment allows for automated flow, and with other equipment to achieve prefect docking.

Sanhe Laser has branch or offices in Tianjin, Zhejiang, Jiangsu, Shanghai, Chongqing and Dalian. Also equipment with a comprehensive network of marketing channels for domestic and foreign customers with complete and quick sale service.

We have a dream in heart to ignite hope of success on the road; We holds professional to create a new direction of the laser industry; We stick together to accumulate strength for the new brand; Sanhe Laser has been leading the line to soar.
