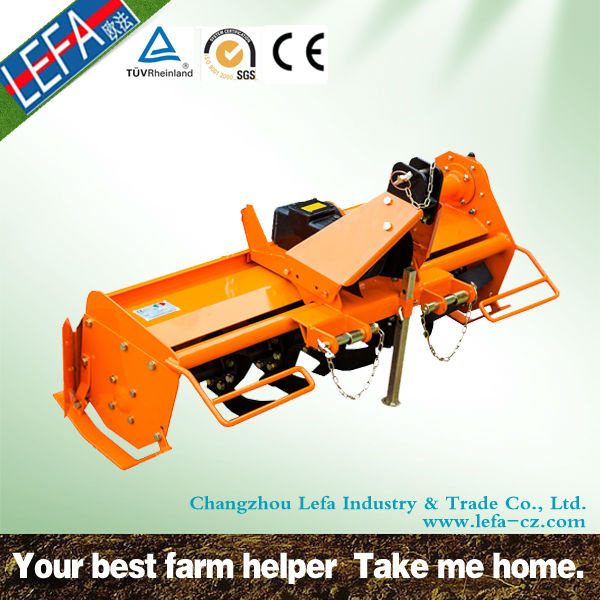

20-35HP Farm Tractor Pto Rotavator (RT115)

20-35HP Farm Tractor Pto Rotavator (RT115)
Price: US $ 400-600/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: RT115
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: Rotovator
Dimension: 125*55*56cm
Working Width: 115cm
Pto Input Speed: 540r/Min
Weight: 135kgs
No Of Blades: 24
Tilling Depth: 8-12cm
Packing Size: 136*65*66cm
Transmission: Chain Transmission
Gearbox: Casting Iron Gearbox
Type: Rotary Tiller
Application Field: Forestry
Farming Policy: Dry Cultivating Machinery
Power Source: Tractor
Operation: Continuous Running Operation

Product Description

Specification:
1. 3 point linkage
2. Graphite casting iron gearbox
3. Tractor power required: 15-25hp / 20-30hp
PRODUCT ATTRIBUTE
1. Transmission: chain driven.
2. Gearbox is made of graphite casting iron.  Material performance is better. Not easy broken.
3. The suspension plate shape is not easy to deform.
4. Chain device hand adjustable. More easy and reliable.
5. Side protection plates are added onto the rear deflection. This device prevents the soil flying out.
6. The tilling height can be adjustable.
7. The structure is firm and stable.

LEFA machines in YOUTOBE web for your reference:

https://www.youtube.com/watch?v=O_tVXodWdN8       EFG FLAIL MOWERS
https://www.youtube.com/watch?v=ZuWSCmiPows     EFGL HYDRAULIC FLAIL MOWERS
https://www.youtube.com/watch?v=iH6uQiqEyuQ         FM FINISHING MOWERS
https://www.youtube.com/watch?v=VLUEyam_5DY     TM TOPPER MOWERS
https://www.youtube.com/watch?v=Bh73zRIYBpc        EFDL HYDRAULIC FLAIL MOWERS
https://www.youtube.com/watch?v=jphaylxaKUg          RT ROTARY TILLERS

PTO Shaft 3 Point Hitch Rotray Tiller (CE/SGS/TUV)
sized right for subcompact tractors and are designed to till soil for seedbed preparation. They are ideal for homeowner landscaping, small nurseries, gardens, small hobby farms, or medium-duty residential use.

Specification:
1. 3 point linkage
2. Casting iron gearbox
3. Tractor power required: 15-25hp / 20-30hp

Product Attribute:
1. Transmission: chain driven.
2. Gearbox is made of casting iron.  Material performance is better. Not easy broken.
3. The suspension plate shape is not easy to deform.
4. Chain device hand adjustable. More easy and reliable.
5. Side protection plates are added onto the rear deflection. This device prevents the soil flying out.
6. The tilling height can be adjustable.
7. The structure is firm and stable.

Specifications:
RT
ModelSize(mm)Working width(cm)PTO speedKilosNo.bladesTilling depthPacking (mm)1 pc/wood case Power(HP)
RT-85950×550×56085540r/min110168-12cm1060×650×66015-25
RT-951050×550×56095540r/min115168-12cm1160×650×66015-25
RT-1051150×550×560105540r/min125208-12cm1260×650×66015-25
RT-1151250×550×560115540r/min135248-12cm1360×650×66020-30
RT-1251350×550×560125540r/min145288-12cm1460×650×66020-30
RT-1351450×550×560135540r/min155328-12cm1560×650×66020-30

FD
ModelSize(mm)Working width(cm)PTO speedKilosNo.bladesTilling depthPacking (mm)1 pc/wood case Power(HP)
FD-85950×550×56085540r/min115168-12cm1060×650×66015-25
FD-951050×550×56095540r/min120168-12cm1160×650×66015-25
FD-1051150×550×560105540r/min130208-12cm1260×650×66015-25
FD-1151250×550×560115540r/min140248-12cm1360×650×66020-30
FD-1251350×550×560125540r/min150288-12cm1460×650×66020-30
FD-1351450×550×560135540r/min160328-12cm1560×650×66020-30



Lefa RT series Rotary Tiller
Features Benifits
Design and produce according to CE sertificate.Each product inspected before deliveryWe have France Branch.We are the first one to produce the Rotary Tiller in China.We have exported to Europe for 11 years.It shows our quality.
Reverse tilling  mechanismTractor input power.PTO shaft drives gear box.Chain transmit to run the blades shaft. Fixing on the blades, the tiller can run normally.
Application seedbed preparation,ideal for homeowner landscaping, small nurseries, gardens, small hobby farms, or medium-duty residential use.soil seedbeds for gardening or lawns.light commercial applications.
Tractor HP range 20-30HP
Gearbox Warranty 2 years on bearing, gear and seals.(Show our confidence in the product)
Working Width85-135CM
Tilling depth 8-12CM
Weight 110-155KGS
3 point hitch International 3 point hitch
Aadjustable parking standallows for easy hook up and storage
Fixed rear deflector The deflector adjustable according to the requirement
Swing Diameter  Blades swing diameter 372mm
Drive Chain enclosed in oil bathChain transmission.
Stamped Chain Cover yes
Supporting round pipe supporting

Video showing:
TUV: https://www.youtube.com/watch?v=MXzGIBNKBh4
Light Duty Rotary Tiller(RT): https://www.youtube.com/watch?v=jphaylxaKUg

LEFA Company:
1. We are the first one to produce tractor flail mower in China.
We have mature experience in this field.
2. We have engineer with many years experience in farm machine design.
3. We provide good after-sales service.
4. We will reply your email in 12 hours.
5. We provide professional shipment service to save delivery charges for customers.
6. Short lead time: 25 days to 30 days for one 20ft container.
7. We have got good credit grade from the government.
8. CE certificate provided.
9. OEM and ODM provided.

Welcome to send inquiry to us.
Welcome to visit our factory.
Changzhou LEFA industry & trade Co., Ltd., is a professional manufacturer and exporter of whole set of agriculture machines and garden tools. Changzhou LEFA was established in 2003, specialized in the production and sale of agricultural and garden machines, and covers an area of 2200 square meters, with Hanma industry company and France branch.

Since its inception in 2003, LEFA has gone through 12 years with many stories, which have defined LEFA today. With the idea of "integrity, innovation, win-win, thanksgiving", it has achieved 100% exports, and is gradually moving forward.

Our main products include rotary tiller, rotovator, rotavator, flail mower, finishing mower, topper mower, wood chipper, plow, cultivator, potato planters and Japanese tractor parts, etc. Our machines are complied with international quality standard and are greatly popular in various markets around the world, and have got CE certificate. Now our sales network has reached Europe, America, Middle East, Africa, etc.

We sincerely welcome customers abroad to visit us to discuss cooperation and seek common development. We believe our company is your most reliable partner and friend!
