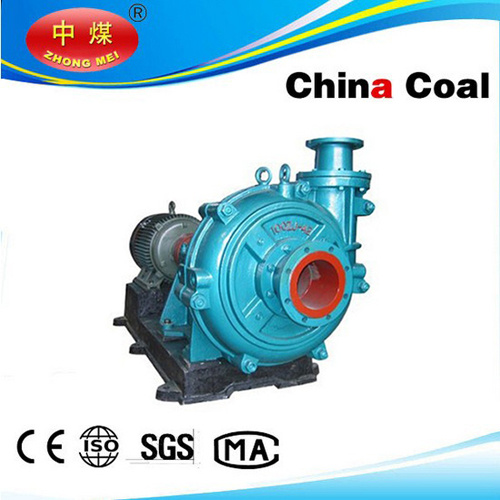

Product Introduction
ZJ series slurry pump is horizontal single-stage, single-suction and double case centrifugal slurry pump. Adopting solid-liquid two-phase flow velocity ratio, ZJ series slurry pump can convert the energy between sold and liquid sufficiently in the pump casting; also improves erosion of the flowing parts. With advanced water-power design, reasonable structure and highly corrosion- resistant materials, ZJ slurry pump have high-efficiency, good-cavitation-capability, long-lifespan, work-reliable advantages, etc.
Feature of slurry pump
1. Resistant to acid, alkali, wear and high temperature.
2. High mechanical strength, steady performance, good tightness.
3. Convenient operation and durable.
4. Be able to transport water that under the position it was installed. No need for filling liquid after the first time it was used.
Application of slurry pump
1. Slurry Pump Suitable for environment protection, construction, fire fighting, chemical pharmacy, printing, dyeing, brewage, power plant, electroplate, paper making, washing for mining and cooling for equipment.
2. Application as sprayer equipped with beam nozzle that turning water into little drop irrigation for farm, garden, etc.
3. It is suitable for clear water, sea water, acid or alkali chemical medium and slurry (viscosity≤100 centipoise, consistency of solid can not exceed 30% of total medium).
Technical Parameter
| Model | ZJ slurry pump |
| Theory | Centrifugal pump |
| Structure | Single stage pump |
| Pressure | Low pressure |
| Material | High chrome alloy |
| Power | Electric or diesel |
| Mode | Horizontal |
| Impeller | Single suction impeller |
| Drive | Belt or coupling |
| Shaft Seal | Gland packing seal or mechanical seal |
| Color | Any color |
| Usage | Slurry mud |
| Standard or Nonstandard | Standard |
| Feature | 1 wear resistant;long working life
2 low noise,vibration
3 good sealing effects
4 smooth operation |
| Application | 1.Concentrating/metallurgical plant: it deliveries a variety of
slurries.
2.Sand plant: it feeds water and mineral sands to all kinds of
dehydrating equipment.
3.Coal preparation plant: it deliveries coal pulps;.
4.Ceramic and glass plant: it is used to convey porcelain clay
and sands, feed hydraulic cyclone.
5.Steel plant: it conveys slurry, rust and corrosive liquid. |
| Capacity | 4-2339m³/h |
| Head | 9-133m |
| Power | 0.55-800kw |
| Drive Mode | CL, CV, CR, ZL,ZV, ZR |
| Speed | 2950r/m, 1450r/min, |
| Certificate | ISO9001 |
| OEM | Accept |
| Size range (discharge) | 40mm~350mm |
| Capacity | Up to 2339m |
| Head | Up to 133m |
| Pressure | Up to 6900Kpa |
