Line Components
Manual/HydraulicUn-coiler, Levelling Unit, Roll-Forming M/C, Punching Unit(optional), Cut-to-length Unit, PLC Control System, Product Table, Transmission Unit, etc.
Working Flow
Decoiling---->Sheet Guiding----> Coil Strip Levelling----> Roll Forming---->Punching hole----> Cutting to length----> Output Table
Technical Data
1. Width of sheet: 100-500mm (also can depend on client's request)
2. Thinkness of sheet: 1.5-3mm
3. Working speed: 15-18m/min(not including cutting time)
4. Roll station: 15 stations
5. Main power: 17.5 kw
6. Electrical control system: PLC control Panasonic
7. Dimension: 14000x1400x1000mm (designed depends on cilent's requirement)
8. Tolerance of length: ± 1.5mm per 3m
9. Way of transmission: Chain transmission
Product Feature and Usage

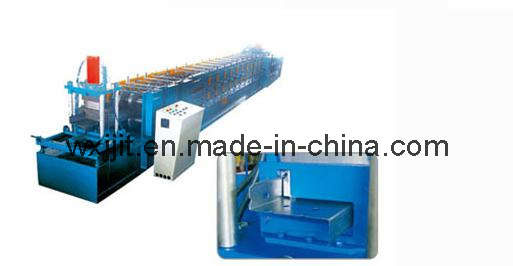

Theproducts of C or Z shape purline forming machine have excellentanti-bending property and are easy to install. They are widely used asthe supporter of roof and wall in large-scale and MID-scaleconstruction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
