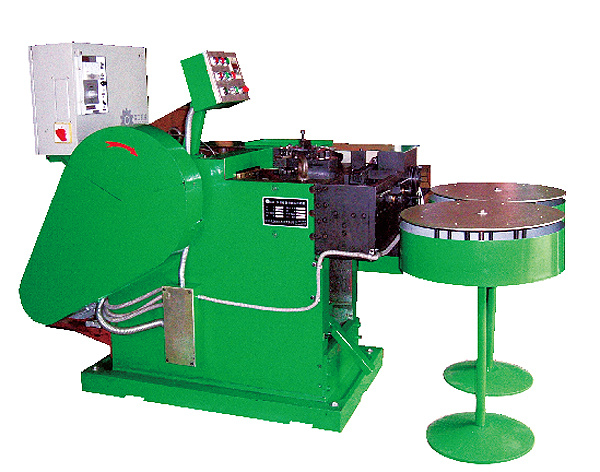

YFC828 Bimetallic Button & Rivet Automatic Machine use cold forming process to make AG/Cu, AgNi/Cu, Agcdo/Cu round button; Square button & bi-metal rivet, it's featuring high reliability, high productivity, multi-purpose and convenient for operation.
APPLICATION
MICRO SWITCH MANUFACTURERS
AUXILIARY SWITCH MANUFACTURERS
ROTARY SWITCH MANUFACTURERS
LIMIT SWITCH MANUFACTURERS
KNIFE SWITCH MANUFACTURERS
ROCKER SWITCH MANUFACTURERS
DOMESTIC SWITCH MANUFACTURERS
AUTOMOTIVE SWITCH MANUFACTURERS
RELAYS MANUFACTURERS
MOTOR STARTER
SWITCH GEARS MANUFACTURES
AUTOMOTIVE MANUFACTURES
AVIATION MANUFACTURES
APPLIANCES MANUFACTURES
The machine can produce cold headed solid and bimetal contacts from a wide variety of materials.
Typical alloys include:
Silver
Fine grained silver
Silver-Nickel
Silver-Iron
Silver-Graphite
Silver-Cadmium Oxide
Silver-Tin Oxide
Gold
Platinum
Palladium
|
Item |
Data |
|
Round button dia . |
φ2.5mm- φ 8.5mm |
|
Square button size |
2.5x2.5-7x7mm |
|
Thickness of button |
0.5-3.2mm |
|
Rivet head dia |
φ 2.5- φ 8.5mm |
|
Thickness of rivet head |
Max 3.2mm |
|
Dia . of rivet shank |
φ 1.2- φ 4.9mm |
|
Thickness of rivet head |
Max 6mm |
|
Silver thickness |
Min0.25mm |
|
Button output |
2200-7000pcs /hr |
|
Rivet output |
2200-11000pcs /hr |
|
Power |
3.6KW, 380V , 50HZ |
|
Compress air |
Min0.2Mpa |
|
Net weight |
1650kg |
