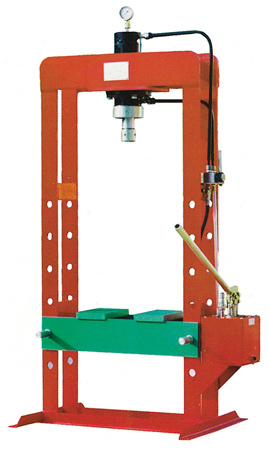

Features
-Rigid weldment
-Hand pump lever for manual pressurization
-Piston reset via return spring
-Rigid lower table construction, selectable height positions, height adjusted by ahdn-wheel
-Ram height adjustable with screw
Model
| MSY 100A
| MSY100B
| MSY300
|
Nominal force
| 100KN
| 100KN
| 300KN
|
Liquid pressure
| 50MPa
| 50MPa
| 36MPa
|
Assemb travel
| 150mm
| 150mm
| 220mm
|
Distance of worktable adjustment
| 150x 3mm x n
| 150x 3mm x n
| 200x 4mm x n
|
Max. height of door frame
| 300mm
| 300mm
| 978mm
|
Max. pass size of door frame
| 430mm
| 430mm
| 640mm
|
Overall dimension
| 750x660x 1920mm
| 660x600x 1170mm
| 980x720x 1980mm
|
Weight
| 105kgs
| 120kgs
| 300kgs
|
