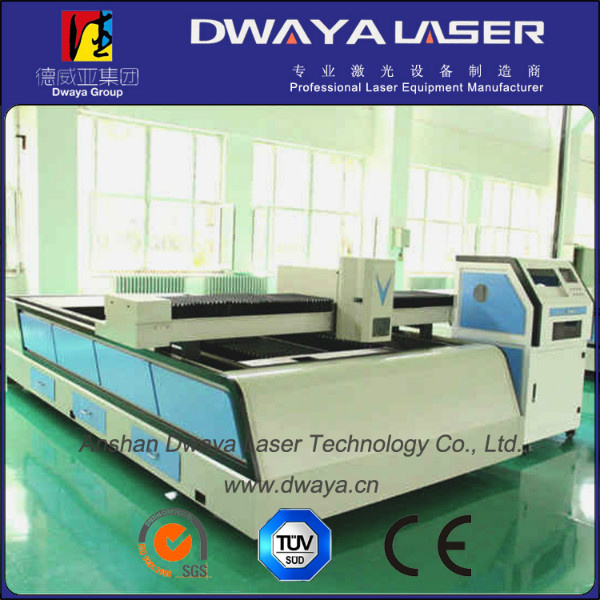

With Germany IPG laser&Casting lathe&working table 1500*3000mm 500w 1000w fiber laser cutting machine
Type |
DWY-
F300 |
DWY-
F500 |
DWY-
F1000 |
DWY-
F1500 |
DWY-
F2000 |
DWY-
F3000 |
DWY-
F4000 |
DWY-F6000 |
Laser Power |
300 |
500 |
1000 |
1500 |
2000 |
3000 |
4000 |
6000 |
Laser Type |
Imported/ China |
Imported/ China |
Imported/ China |
Imported/ China |
Imported |
Imported |
Imported |
Imported |
Process Scale X-axis |
1500mm/
2000mm |
1500mm/
2000mm |
1500mm/
2000mm |
1500mm/
2000mm |
1500mm/
2000mm |
1500mm/
2000mm |
1500mm/
2000mm |
1500mm/
2000mm |
Process Scale Y-axis |
3000mm/
4000mm/
6000mm |
3000mm/
4000mm/
6000mm |
3000mm/
4000mm/
6000mm |
3000mm/
4000mm/
6000mm |
3000mm/
4000mm/
6000mm |
3000mm/
4000mm/
6000mm |
3000mm/
4000mm/
6000mm |
3000mm/
4000mm/
6000mm |
Process Scale Z-axis |
100mm |
100mm |
100mm |
100mm |
100mm |
100mm |
100mm |
100mm |
Position Precision |
± 0.03 mm/m |
± 0.03 mm/m |
± 0.03 mm/m |
± 0.03 mm/m |
± 0.03 mm/m |
± 0.03 mm/m |
± 0.03 mm/m |
± 0.03 mm/m |
Repeat Position Precision |
± 0.02 mm |
± 0.02 mm |
± 0.02 mm |
± 0.02 mm |
± 0.02 mm |
± 0.02 mm |
± 0.02 mm |
± 0.02 mm |
Power Demand |
380V/50HZ/60HZ/60A |
380V/50HZ/60HZ/60A |
380V/50HZ/60HZ/60A |
380V/50HZ/60HZ/60A |
380V/50HZ/60HZ/60A |
380V/50HZ/60HZ/60A |
380V/50HZ/60HZ/60A |
380V/50HZ/60HZ/60A |
Max. Table Load |
≥1000KG |
≥2000KG |
≥2000KG |
≥2000KG |
≥2000KG |
≥2000KG |
≥2000KG |
≥2000KG |
Cooling Method |
Air Cooling |
Water Cooling |
Water Cooling |
Water Cooling |
Water Cooling |
Water Cooling |
Water Cooling |
Water Cooling |
Cutting Machine Weight |
≤6000KG |
≤8000KG |
≤10000KG |
≤10000KG |
≤12000KG |
≤12000KG |
≤13000KG |
≤13000KG |
Outline Size |
2550*4650*1500
2550*5650*1500
2550*8200*1500
3000/5650*1500 |
2550*4650*1500
2550*5650*1500
2550*8200*1500
3000/5650*1500 |
3050*8500*2100
3050*11000*2200
3050*16000*2200
3600*11000*2200 |
3050*8500*2100
3050*11000*2200
3050*16000*2200
3600*11000*2200 |
3050*8500*2100
3050*11000*2200
3050*16000*2200
3600*11000*2200 |
3050*8500*2100
3050*11000*2200
3050*16000*2200
3600*11000*2200 |
3050*8500*2100
3050*11000*2200
3050*16000*2200
3600*11000*2200 |
3050*8500*2100
3050*11000/*2100
3050*16000/2200
3600*11000/2200 |
Application
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminium zinc plate, copper and many kinds of metal materials cutting and so on.
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Our Services
1.Equipment is in production ,the client arrange the stuff (Max. 2 person) to make training in supplier factory 2.After the equipment assembly, acceptance test are ok, the supplier make training of the client in workplace
3.Once accepted by the client, it is 24 months free guarantee , exclusive the damaged by man and maintenance service all life.
4.Once get the maintenance information from the client ,ensure to make maintenance at the clients within 24 hours.The supplier will supply any accessory parts with best cost term and service.
5.Equipment Assembly Acceptance test and Training
6.Once the equipment is finished , the supplier inform the client to pre-acceptance test..
7.Once the equipment arrived at the destination of the clients, the supplier arrange the assembly and all the test work according to the date of the clients requirement, also need the client's assistant. Both sides sigh the test report at last base on the "Technology Agreement" and "Industry Standard"
Packaging & Shipping
Buyer Feedback
Anybody who wants to remain competitive in today's markets is switching from conventional production processes to superior laser technology. Economical production and additional growth guarantee success for many users. It is far from unusual for them to consider purchasing another laser system after a short time, which reflects a high degree of customer satisfaction.
FAQ
Please let us know following informations:
1.What's material you want to cut ?
2.What is the mass cutting thickness and the maximum thickness you want to cut?
3. What is the mass cutting and max cutting dimension of your materials ?
4. After cut, what will be the metal used for? (Application)
5. Are you an end user or reseller?
According to your above information, we'll recommend the most suitable machine to you
Welcome EMAIL me for price list, discounts, video or more. Thank you.
