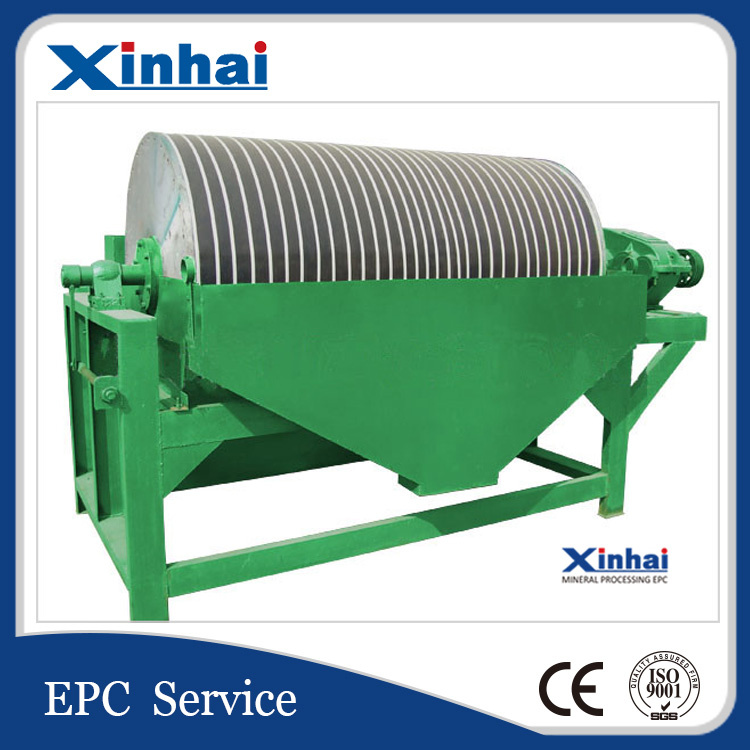

Wear-resisting Drum Type Magnetic Separator (CT)
Magnetic Drum—Introduction
A dry magnetic separator for strong magnetic minerals with coarse particles, and it is also called magnetic pulley.
Magnetic Drum—Capacity
20-600t/h
Magnetic Drum—Product Improvement
Cylinder could be lined with Xinhai wear- resistant rubber to prolong the service life
Magnetic Drum—Advantages
Large feeding particle size(450~0mm),no classification before feeding.
High strength and high reliability of the mechanical structure guarantee the normal work of the magnetic drum in a variety of harsh environment.
Magnetic Drum—Product Description
Permanent magnetic drum is also called magnetic pulley,apparatus magnetic equipment for magnetite ore, mainly used for pre concentration before fine crushing or grinding to remove the gangue, deads and tailings, and the tailings out rate is about 10%.
Magnetic Drum—Work Principle
The materials are uniformly fed to the belt. When materials go through the permanent magnetic drum, the non-magnetic and low-magnetic particles will leave the belt surface because of the centrifugal force and gravitation. Meanwhile, strong-magnetic particles are absorbed to the belt by magnetic force and then fall into the magnetic trough when the belt leaving the magnetic pulley.
Magnetic Drum—Product Application
1,It is applied in lean iron roughing after the roughing crushing or middling crushingto remove deads, improve grade, and reduce the load of the next procedure.
2,For not fully reductive raw ore of hematite reduction
3,For the ceramic industry to remove iron and improve the quality of ceramic products
4,For other industries needing to remove iron, such as Burning coal, sand casting, refractory material, etc.
| Model | ID
(mm) | Length
(mm) | Belt width
(mm) | Average field strength of cylinder surface(mT) | Allowable torque
(N.m) | Materials
Particle size (mm) | Capacity
(t/h) | Weight
(kg) |
| CT-0404 | 410 | 465 | 400 | 150-160 | 1300 | 10-40 | 20-30 | 250 |
| CT-0505 | 520 | 500 | 400 | 150 | 1300 | 10-40 | 20-40 | 500 |
| CT-0506 | 520 | 600 | 500 | 150 | 2100 | 10-40 | 40-60 | 600 |
| CT-0507 | 520 | 750 | 650 | 150 | 2120 | 10-40 | 60-80 | 700 |
| CT-0707 | 750 | 750 | 650 | >160 | 2860 | 10-60 | 80-100 | 1200 |
| CT-0709 | 750 | 950 | 800 | >160 | 5500 | 10-60 | 100 | 1620 |
| CT-0816 | 800 | 1600 | 1400 | >160 | 9760 | 10-60 | 1OO-150 | 2850 |
| CT-1010 | 1000 | 970 | 800 | 200-210 | 5590 | 10- 100 | 150-200 | 3410 |
| CT-1012 | 1000 | 1170 | 1000 | >200 | 10680 | ≤100 | 200 | 4010 |
| CT-1014 | 1000 | 1400 | 1200 | >200 | 12810 | ≤100 | 200 | 4600 |
| CT-l0l6 | 1000 | 1600 | 1400 | 160-210 | 14920 | 10-100 | 150-200 | 5200 |
| CT-12l0 | 1200 | 970 | 800 | 160-210 | 8380 | 10-100 | 150-200 | 4380 |
| CT-1212 | 1200 | 1170 | 1000 | >160 | 10470 | ≤100 | 200 | 5280 |
| CT-1214 | 1200 | 1400 | 1200 | >160 | 12570 | ≤100 | 200 | 6070 |
| CT-1216 | 1200 | 1600 | 1400 | >160 | 14580 | ≤100 | 200 | 6670 |
| CT-1218 | 1200 | 1800 | 1600 | >160 | 16620 | ≤100 | 200 | 7260 |
| CT-1412 | 1400 | 1200 | 1000 | >160 | 16000 | ≤l20 | 200 | 6000 |
| CT-1414 | 1400 | 1400 | 1200 | >160 | 20000 | ≤l20 | 200 | 7100 |
| CT-1416 | 1400 | 1600 | 1400 | 400 | 25000 | ~400 | 300 | 9800 |
| CT-1518 | 1500 | 1800 | 1600 | ≥450 | 30000 | ~400 | 600 | 14000 |
