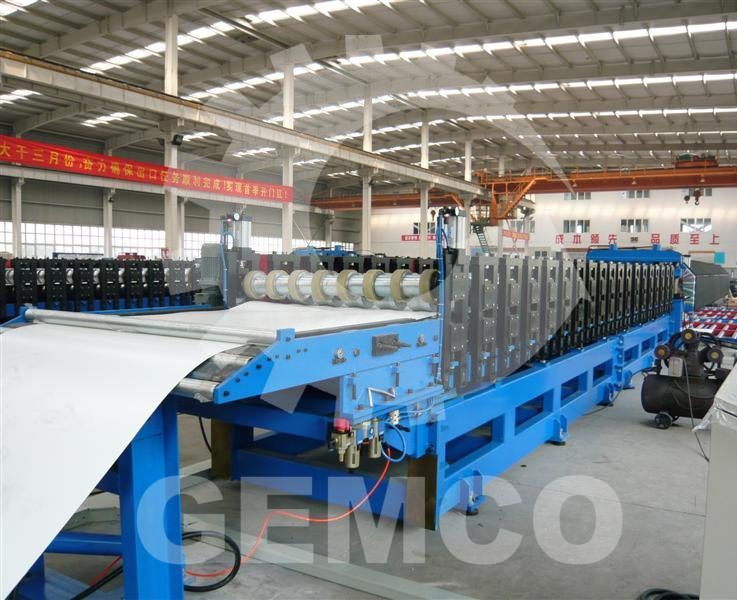

Roll former for roofing
Material:
(1) coil width: 1250mm
(2) suitable coil thickness: 0.3-0.5mm
(3) suitable raw materials: Pre-painted coil (q235A); Yield bearing stress: 235 mpa
Roll forming machine for roofing
Machine components:
(1) manual un-coiler 1 set
(2) roll-forming m/c 1 set
(3) hydraulic cutting 1 set
(4) PLC control system 1 set
(5) product rack (un-powered) 1 set
Technical specification
(1) manual un-coiler:
Un-powered; Load capacity = max. 5tons;
(2) roll-forming m/c:
About 18steps to form; Material of roller: 45# steel with chromizing on surface
Voltage: 380V/50Hz; Main line speed: 8-12 m/min;
(3) hydraulic cutting:
Stop to cut, post cut,
Cutting tool material: Cr12, heat treatment
(4) PLC control system:
Using mitsubishi PLC control the quantity, length automatically, LCD screen,
(5) product rack (un powered)
Hydraulic un-coiler:
Hydraulic system to expand coil inner hole;
Frequency inverter to regulate turning speed,
Automatic stop device; Load capacity = max. 5tons;
Material:
(1) coil width: 1250mm
(2) suitable coil thickness: 0.3-0.5mm
(3) suitable raw materials: Pre-painted coil (q235A); Yield bearing stress: 235 mpa
If you are interested in wall & roof forming machine, pls contact us!
