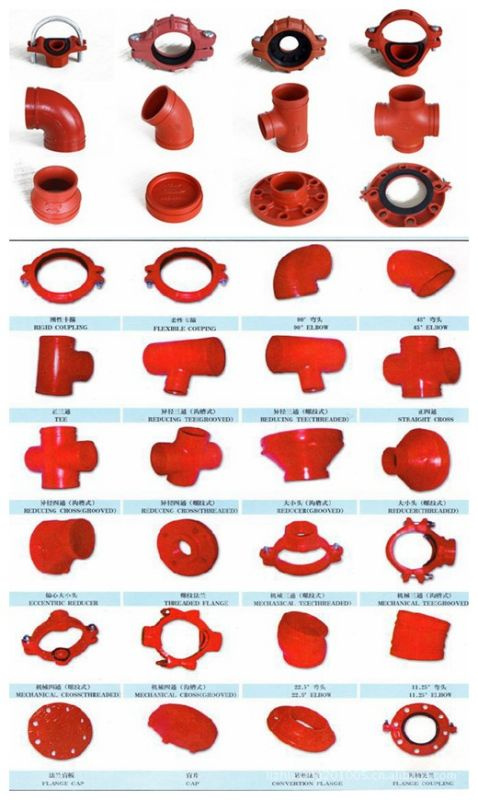

Victaulic
| Price: |
US $ 2.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5000/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Lost Wax Casting (Investment Casting)
Lost Wax Casting is also known as investment casting. It can produce complicated shapes that would be difficult or impossible by normal manufacturing techniques. Parts made with investment castings often do not require any further machining, because of the close tolerances that can be achieved.
Shanghai Sourcing adds value in the process through:
(1) Fluent technical communication in English. In our experience, most foundries in China need a lot of help in this area.
(2) We provide an extra layer of quality control for you. For example, we run independent chemical composition and mechanical strength analysis.
(3) We also have CNC machining expertise/ resources that many foundries lack.
Introduction of Lost Wax Casting:
It is generally used for small castings are made from almost any metal, especially stainless steel.
This process generally more expensive per unit than die casting or sand casting but with lower tooling cost. It can produce complicated shapes that would be difficult or impossible by normal manufacturing techniques. Parts made with investment castings often do not require any further machining, because of the close tolerances that can be achieved.
Advantages of Lost Wax Casting:
1. Excellent surface finish
2. High dimensional accuracy
3. Extremely intricate parts are castable
4. Almost any metal can be cast
5. No flash or parting lines
Types of Lost Wax Casting
Sodium Silicate Investment Casting (Water Glass Also Called Sodium Silicate):
1. The coasting bond brushed on the pattern surface is water glass in this process.
2. Compared with the sand castings, Parts madewith lost wax casting(water glass) have better surface quality (surface roughness to 12.5 microns) and higher dimensional accuracy.
Silica Sol Investment Casting:
1. The coasting bond brushed on the pattern surface is silica sol in this process.
2. Parts made with lost wax casting(silica sol) have the tolerances are 0.1 mm for the first 25 mm (0.005 in for the first inch) and 0.02 mm for the each additional centimeter (0.002 in for each additional inch).
3. A standard surface finish is 1.34 microns (50125 μ In). Compared with the water glass process, Parts made with lost wax casting(silica sol) have betterexcellent surface finish and higher dimensional accuracy.
Process availablesilica sol and sodium silicate (soluble glass)
Material availablestainless steel, carbon steel, Alloy Steel, WCB, Tool Steel and etc.
Weight10g-200kg
Accuracyclass CT4-CT7
Surface roughnessup to Ra1.6 ~ Ra6.3
Applied softwarePro/E, Auto CAD, Solid Work 2001, CAXA, UG, CAD/CAM/CAE
Production capacitymore than 2, 000MT per year
Heat treatment: Anneal, quenching, normalizing, carburizing, polishing, plating
MachiningCNC and NC machining, turning, milling, drilling, boring, threading, grinding machines and test facility
CertificationObtain ISO9001: 2008 Quality System Certified and CE/PED Certified by TUV
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbon Steel |
| Surface Preparation: |
Spray-Paint |
| Casting Method: |
Thermal Gravity Casting |
Qingdao Boyide International Trade Co., Ltd (hereinafter 'boyide') are a manufactureing, trading and exporting integated group corporation specialized in casting foundries (including: Heavy Gravity Sand Casting, Die Casting, Lost Wax Casting, Metal casting) locating in Qingdao city, China.
Qingdao Boyide International Trade Co., Ltd. Are professional manging with railway casting parts, auto parts, agricultural machinery parts, hydraulic valve parts, etc...We hope to establish cooperative relationship with you. Our company can also manufacture products for you according to your drawings or samples.
We are ISO 9001 certified, and subsidiary factory with 600, 000 square meters facility are locating in Qingdao city for casting, CNC machine processing, quality testing, assembly, packaging and warehousing. Our railway product quality authorized with ISO, SGS, CE. Certificates.
Our mainly products including:
Railway casting and Hardware, light rail and heavy rail.
Components auto, car, bus
Agricultural Machine Hardware
Safety Locker Quick Coupling
Clip Pipe and Fitting
Other mechanical hardware
Pumps & Valves
Marine Hardware
Building Hardware
Mine, Oil, Textile Mechanical Parts
Component for mine equipments
Component for agricultural machinery
Parts for hydraulic and air compressing equipment
Railway orbit parts series, including rail, sleeper, connecting parts, ballast bed, climbing equipment, rail brace and switch, etc, Railway parts made with various grade of steel material manganese content: Common rail, containing copper, carbon steel rail, high silicon containing copper, silicon, manganese, copper rail, steel rail tracks, etc.
Our casting auto parts mach with brand including: Auto casting parts series. Our product approve for Brand: Audi, BMW, pentium, Honda, byd, Peugeot, buick, changan, Great Wall, The public, dongfeng, ferrari, FIAT, Toyota, Ford, Mr Fukuda, , suzuki, Mazda, chery, mitsubishi, smart, Volvo, Wuling automobile, xiali, modern. etc.
Our Company's auto casting parts series including, Engine parts, Cylinder head, body, oil pan, etc. Connecting rod, piston ring, etc. Assort component: The camshaft, inlet valve, exhaust valve, rocker, rocker arm shaft, lifter, push rod, etc. The transmission parts: Flywheel, pressure plate, clutch, gearbox, variable speed shift operating mechanism, transmission shaft, universal joint, the wheel hub etc.
Agriculture machinery parts series including (combine harvest knife guard, knife blade, crane arm, speeder machinery parts, gear&chains), etc.
Convenient logistic service for shipment, nearest loading port Qingdao, only 50KM far away, short lead time.
We welcome friend and clients all around the world come to China and visit our company and factories, surely we'll reward our customers with high quality products and efficient work for their consistent support.
