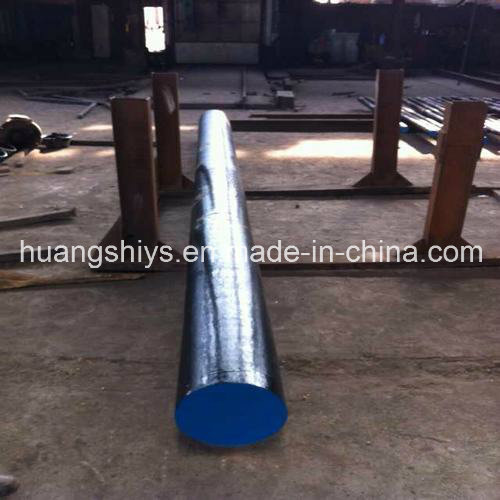

Tool Steel Round Bar 1.2738

Tool Steel Round Bar 1.2738
Price: US $ 500-5000/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Ton
Pay Type: L/C,T/T,Western Union


Specifications
Din 1.2738 plastic mould steel with polished condition
1.A/N/Q+T provide
2.Sample free
3.Black or Bright
4.T Max:800mm

Product Description

1,Size of 1.2738 Plastic Mould Steel

Round bar

Diameter(mm)

Length (mm)



20~800

3000~9000



Plate

Thickness(mm)

Width (mm)

Length (mm)

Max:800

Max:2200

Max:9000

The specification can be customized.

2,Chemical Compositons

Grade

C

Si

Mn

P

S

Cr

Mo

Ni

3Cr2MnNiMo

0.32~0.40

0.20~0.40

1.10~1.50

≤0.030

≤0.030

1.70~2.00

0.25~0.40

0.85~1.15

P20+Ni

0.32~0.40

0.20~0.40

1.10~1.50

≤0.030

≤0.030

1.70~2.00

0.25~0.40

0.85~1.20

1.2738
0.35~0.450.20~0.401.30~1.60≤0.030≤0.030
1.80~2.10

0.15-0.25

0.90~1.20

3,Features of 1.2738 Plastic Mould steel

1, Alloy tool steel which offers good machineability;

2, Excellent polished finish for large section;

3, Supplied in the hardened and tempered condition ready for machining;

4, Can be case hardened or nitrided.

4,Typical Applications

1, Ideally suited for the production of plastic moulds;

2, High-gloss requirements of the mold application;

3, Large mould, such as fridge and air-conditioner.

We can offer Casting Steel against your detailed drawings. We mainly manufacture cylinder, parts of vessel such as anchor, anchor bolt, shackle, and other different kinds of valves, flanges, fittings, couplings.

Young Sea Industry's Mission:
Find right product to satisfy what customer need.
Optimize and control to adapt the discrepancy between the manufacturer and purchaser.
Enhance the customer's advantage

We could accept the order base on your modified chemical composition, size and required manufacturing process. Welcome to Young Sea Industry.
Prod Model: 1.2738
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heat Treatment: Annealed
Melting Method: Eaf+ESR
Process Technique: Hot Forged or Rolled
Size: 50-500mm
Length: 2000-5800mm
Type: Round
Standard: DIN
Technique: Forged
Special Use: Mold Steel
Application: Tool Steel Bar
Steel Grade: Tool Steel
Composition: Alloy Steel
Shape: Round
Surface Treatment: Turned Surface
Huangshi Young Sea Industry And Trade Co., Ltd. is located in Huangshi City, Hubei Province, construction in 2009 years. We offer Machining components to Huangshi Tri-Ring Forging Machine Co., Ltd. And Hubei Xinyegang Steel Auto Parts Co., Ltd.

We are also the tool steel and casting steel distributor & exporter in Huangshi China. And we are the exporting company of the factory:

Huangshi Shengda Mould Material Co., Ltd. The equipments of our factory are:

1. Two medium-frequency induction furnaces ( capacity 3.5 ton each);

2. Six forging hammers: One for 1.0 ton, one for 1.5 ton, one for 2.0 ton, one for 3.0 ton, one for 6.0 ton, one for 8.0 ton;

3. Four annealing furnaces: Two furnaces for 20.0 ton, two furnaces for 30.0 ton;

4. Three peeling machines;

5. One planomiller (4000*1000), One horizontal drilling machine and boring lathe.

We can produce one hundred kinds of products, including cold work tool steel, hot work tool steel, plastic mould steel and many other alloy tool steel. We are mainly supplying tool steels as below aboard:

AISI: D2, D3, D6, D7, A2, A6, A8, A10, H10, H11, H13, H21, S1, S5, S7, O1, O6;

DIN: 1.2080, 1.2316, 1.2343, 1.2344, 1.2379, 1.2510, 1.2601, 1.2713, 1.2714, 1.2767, 1.2842;

JIS: SKD1, SKD11, SKD61, SKS11, SKS41, DC53, NAK80;

GB: Cr12, Cr12MOV, Cr12Mo1V1, 6CrW2Si, 4Cr5MoSiV, 4Cr5MoSiV1, 3Cr2W8V, 2Cr13Ni2

We can offer Casting Steel against your detailed drawings. We mainly manufacture cylinder, parts of vessel such as anchor, anchor bolt, shackle, and other different kinds of valves, flanges, fittings, couplings.

Young Sea Industry's Mission:

Find right product to satisfy what customer need.

Optimize and control to adapt the discrepancy between our factory and purchaser.

Enhance the customer's advantage

We could accept the order base on your modified chemical composition, size and required manufacturing process. Welcome to Young Sea
