Casting
Material: Titanium and Titanium alloy, Zirconium and Zirconium alloy
Characteristics: High strength, light weight, corrosion resistant
Standard: ASTM B367 Gr.C2, Gr.C3, Gr.C5. ASTM B752 702C,705C DIN ISO or other required standards.
Casting tolerance: ISO 8062 CT6-CT10
Applications : petroleum machinery, chemical, aerospace,
shipbuilding ,medical, etc.

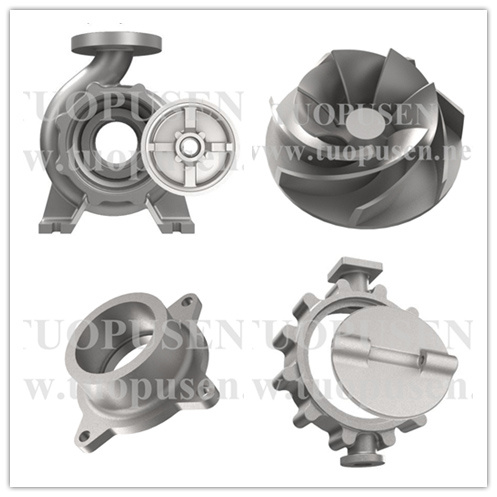

We supply valve body, valve cover, valve disc, pump casing body, pump cover, impeller, hand tools, machine parts, marine parts, and customized products.
Mould Fabrication Ability
l Graphite model
l Wax model
l EPS model
The most suitable fabrication technology is selected to our customer according to specific situation.
Casting Ability
l Casting Weight: Max 400 kg;
l Casting Wall Thickness: Min 0.6 mm;
Quality Control
l Nondestructive testing such as PT, RT, UT is tested and issued certificate by inspectors of BaoTi Test Center. BaoTi Test Center and NDT inspectors are both NADCAP certified.
l Castings are subjected to HIP to assure highest possible quality according to customer's requirement.
Standards Referenced In The Casting Process
l Material: ASTM B367, GB/T3620.1;
l Casting Dimension: ISO 8062 (Gr CT10, Ins CT6, EPS CT8);
l Casting Surface: MSS SP55;
l Radio Examination: ASTM E94;
l Liquid Penetrant Examination: ASTM E165.
Certificate & Report
l Material certificate
l LPE Report
l RT Report
l Chemical and Mechanical report
l Dimension Report
Baoji Tuopusen Metal Co., Ltd specialize in titanium casting. All products are made specifically for our clients according to their requirements, designs, and specifications. We offer our full line of technical assistance, quality assurance, testing, certification and shipping logistics services to our clients.
