| Price: | US $ 1000-1500/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Ton |
| Pay Type: | L/C,T/T |
1. Application:
For seal or connect of pipe/tub-e lines
2. Material:
304,304L,316,316L,carbon steel or other material on request
3. Standard:
ANSI,DIN,JIS,BS,EN1092-1
4. Size:
DN15 (1/2") to DN5000 (200")
5. Type:

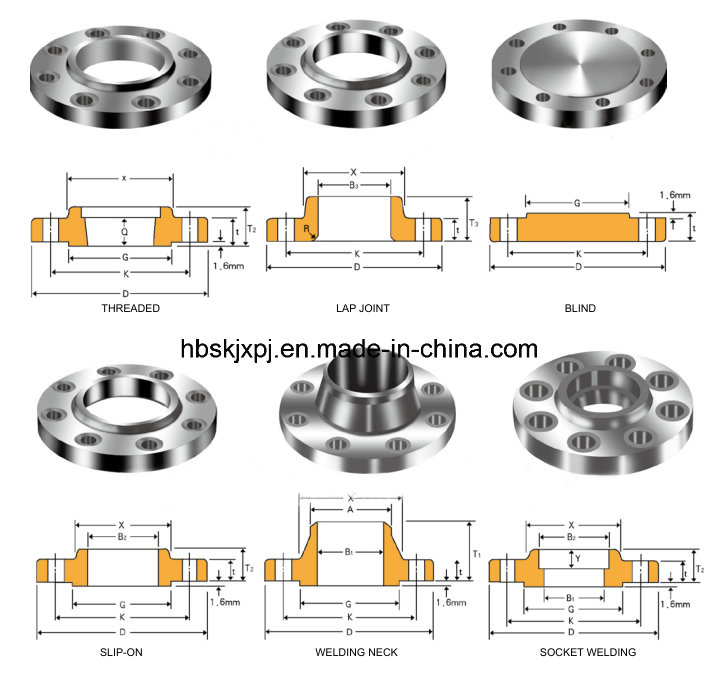

Threaded Flanges, Socket Welding Flanges, Blind Flanges, Other Flanges
| Flange Materials | Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH | ||||||
| P250GH, P280GHM 16MN, 20MN ,20# | |||||||
| Stainless Steel: ASTM A182, F304/304L, F316/316L | |||||||

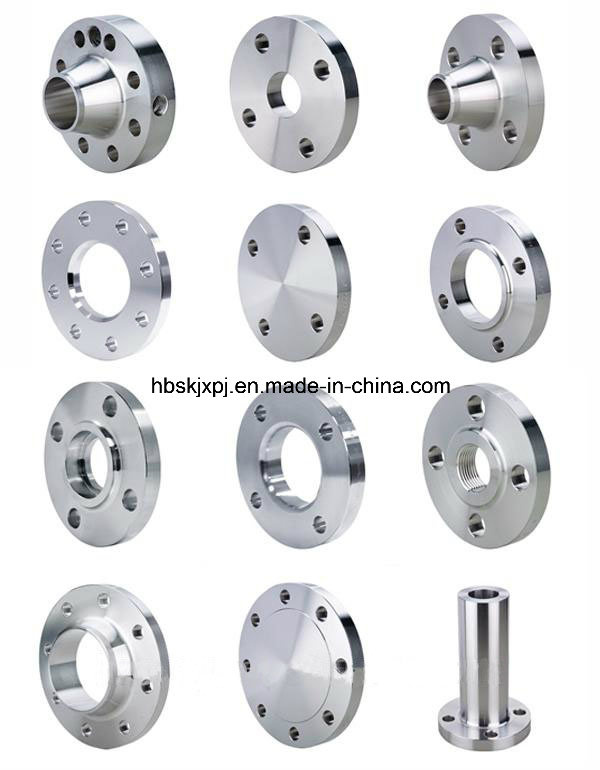

| Flange Types | Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed FF/RF/RJ(ring-joint) | ||||||
| Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange | |||||||
| Blind Flange/Blank flange, Lap Joint Flange /LJ Flange FF(flat face) RF(raised face) | |||||||
| Socket Weld Flange/SW Flange Threaded Flange/Screwed Flange | |||||||
| Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring | |||||||
| Custom Flange/Special Flange Hot/Cold/Electro Gavanized Flange | |||||||
| Standards | ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES | ||||||
| JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504 | |||||||
| BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123 | |||||||
| GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES | |||||||
Pressure & Ratings | 150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5 | ||||||
| PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI | |||||||
| PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504 | |||||||
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80 | |||||||
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80 | |||||||
| 600kPa, 1000.1600.2500.4000.-SANS 1123 | |||||||
| 5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503 | |||||||
| TABLE D, TABLE E ,TABLE F-BS 10, AS2129 | |||||||
| CLASS D, CLASS E, CALSS F, AWWA C207 | |||||||
| Surface Treatment | Rust Prevention , Black Paint Coating or Phosphating Treatment with Black Color | ||||||
| Varnish Paint Coating, Varnish Oil Coating, | |||||||
| Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white, Coating thickness 20~30μm) | |||||||
| Hot Dip Galvanizing Coating (Coating Thickness 200μm around) | |||||||

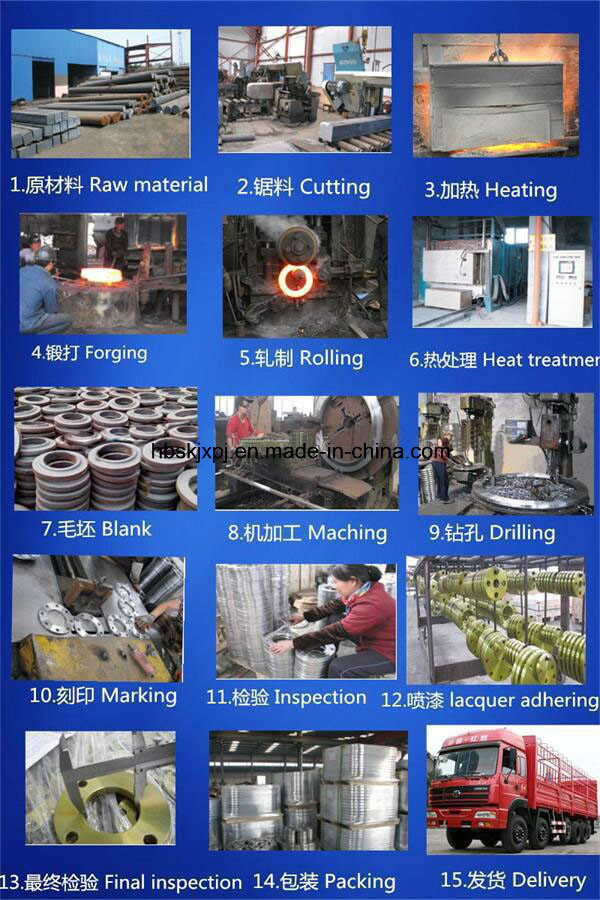

| Technical | Forging | ||||||
| Application | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry | ||||||
| and general pipes connecting projects etc. | |||||||
| Inspection | Quality Control System-Well Equipments and Machinery-Well Workers and Engineers | ||||||
| Packing | Wooden Pallets or Wooden Cases or As Customers' Requirements | ||||||
| Payment Terms | L/C Or 30 % Advance By T/T and The balance Will be Paid After the copy of B/L | ||||||
| Delivery Time | 30 Days \after the Advance or the L/C | ||||||
| After-Sales Service | Orders and Products Tracking System | ||||||
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Size: | Dn15-Dn3600 |
| Shape: | Circle |
| Standard: | BSW |
| Manufacturing Way: | Forging |
| Type: | Plate,Blind,Slip-on,Wn,Lap-Joint,Loose Flange etc. |
| Material: | Carbon Steel,Stainless Steel, Alloy Steel |
| Sealing Surface: | RF,FM,Mfm,Tg,FF,Rj |
