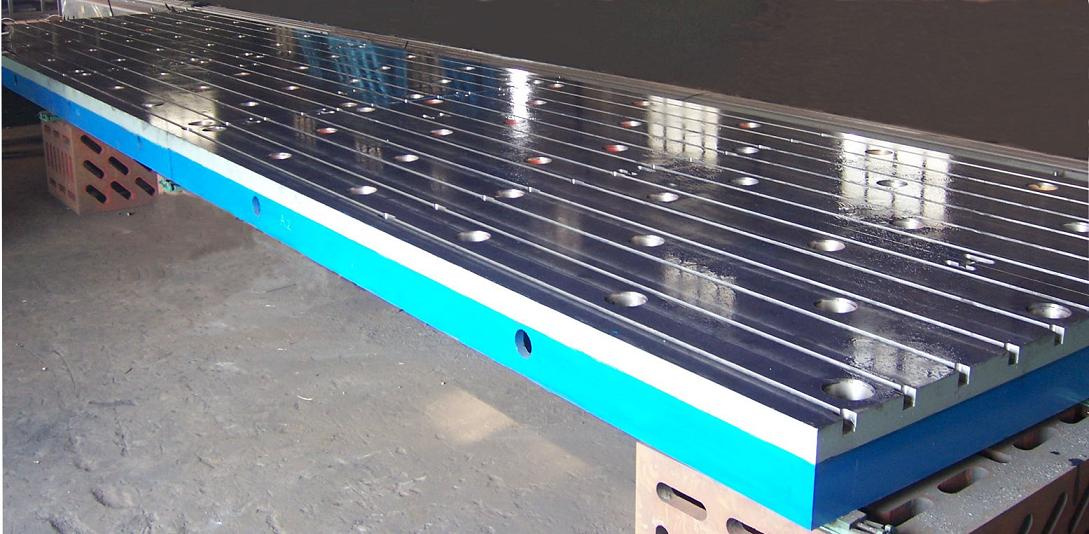

T-slot Cast Iron Floor Plate
Material: GG20-25 HB170-240
Products can be manufactured according to the drawings from customer. All sizes and designs are customized.
T-slots are machined according to DIN650 and can be ordered in any sizes and patterns.
Match stands of plate and related accessories can be provided.
In addition we have the widest variety of products for the modern machine industry. Clamping plates in any sizes and shapes, machine tables, box tables, angle plates and so on are available.
1. Specification: 100*100-3000*6000 (the special specification product can be manufactured according to the drawings from customers ).
2. Material and processing: The material is high strength cast iron GG20-GG25, and the Hardness on the working face reaches HB170-240. After two times of heat treatment, annealing.
3. Precision: DIN876/I/II/III.
4. Usage: It is applicable to various inspections and benchmark planes for accuracy measurement. It can be used as the measurement benchmark for machine tool inspection and to inspect the dimension accuracy or running difference of performing precise lineation. It is an inevitable tool in machine tool manufacturing.
Our foundry can supply you all kinds of castings and final machined parts made of grey iron and ductile iron. Our main products as the below:
Cast rion Counterweight.
Slotted plate;
Inspection Plate;
Pump Parts such as body, cover, impeller and diffuser
Valve part.
We hope to build up a long term relationship with your compamy. Please don't hesitate to contact me for everything.
