Components
The uncoiler and its base
Coil sheet guiding and adjusting equipment
Film covered device

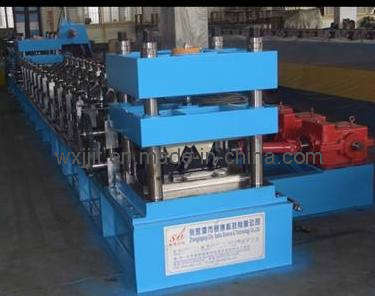

Main roll forming system
Post-cutting device
Hydraulic station
PLC control system
Support table
The Technical parameters:
Suitable raw material: Color steel sheet; Galvanized steel sheet
Thickness of the material: 0.4m to 0.7mm
Yield strength of material: 235Mpa
Uncoiler's loading capacity: Max. Capacity: 5000Kgs. (can be increased to be 10 tons)
Forming speed: About 15m/min
Main motor power: 5.5Kw(Depend on final design)
Hydraulic station power: 2.2Kw(Depend on final design)
Controling system: Mitsubishi PLC & converter
Votage: 380V, 3 phase 60Hz or according to at buyer's requirment.
The quantity of the roller group: At lest 15 groups(depend on final design)
Machine dimension: About 20m*1.5m*1.4m(depend on final design)
Total weight: About 10000kgs(depend on final design)
Material of Roll former system
Roller: High grade No. 45 forged steel, plated hard chromed on the surface of rollers With thickness 0.05mm.
Active shaft material: High grade No. 45 carbon wrought steel at diameter 75mm.
Cutting blade: Cr12 mould steel with quenched treatment.
Working flow
Decoiling the sheet---guiding the sheet---covering the film---roll forming---measuring the length---cutting the panel---panels to the supporter
