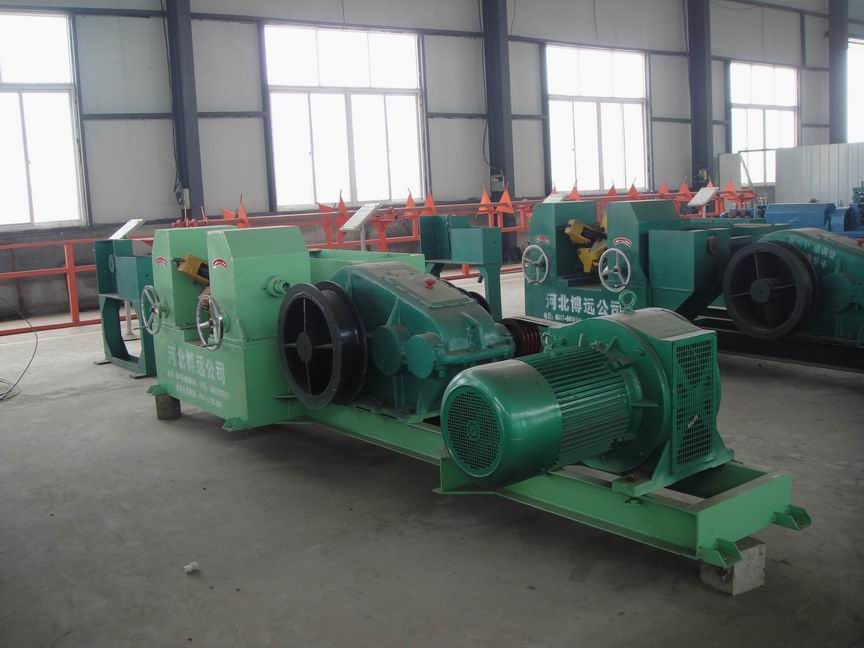

10000T cold-rolled ribbed steel bars unit
Technical parameter:
Maximum wire diameter is 12mm. Total install capacity is 45kw.
Rolling specification is 4-11mm. The velocity modulation way is electromagnetism velocity modulation. Rolling speed is 0-1.2 m/sec. The install length is 12m.
The product features:
The most major feature of this unit is a multi-purpose can produce cold-rolled ribbed belt steel bars\cold draw screw\the smooth circle steel bars\torsion angle squeal steel bars\cold rolled and twisted bars.
This machine complete all processes at one time, can save 30% electricity, just need one or two operations.
The unit mainly includes:
1. A eliminates phosphors machine
2. A lubrication machine
3. Using cold drew to reduce diameter: A. First time reduce diameter B. Second time reduce diameter C. The third time reduce diameter
4. Main electrical machine is 30 kilowatt frequency conversion machine.
5. A set of drawing machine with the model is 650
6. A rolling mill with the model is 150
7. A cylinder escapement of tidying up wire with the weight one ton
8. A cabinet with electric control
The product procession:
Wire rod examination----setting wire off----eliminate phosphors----dried noodles lubrication----never reduce diameter or fist time or second time or third time to reduce diameter----the end product
Hebei Boyuan Wiredrawing Machinery Co., Ltd. is enterprise that management machinery and profession equipment. The registration authorized by the National Related Department. Main businesses are steel bar and pre-stressed machinery, steel bar straightening-cutting machine, cold rolling machine, cold-rolled ribbed steel bar equipment etc. The company is situated in Chenquan economic-development zone, Xianxian County, Hebei province of China. We have established long-term and friendship cooperation in line, with many enterprises in the principle of customer first faith above. The commercial management takes along all staff cordially welcome friend from all walks of life. The commercial management takes along all staff cordially welcome friends from all walks of life to consultation, visit and discusses the service.
Our company is the biggest suppliers in the north of China. We are self-development industrial processing machine. We have development many different products to export Asia, Affrica, Austrilia, American.
