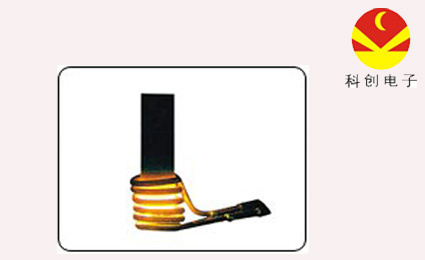

Steel Bar Forging Induction Heating Machine (XZ-50B) Technical Datum:
| Model | XZ-50B |
| Input Power supply | Three Phases 380V 50HZ/60HZ |
| Rated Input Power | 50KVA |
| Max Input Current(Single Phase) | 75A |
| Oscillating Frequency | 0.5-20KHZ |
| Frequency Control Precision | ±1.5KHz |
| Working Water Pressure | 0.15-0.3Mpa |
| Memo | One main body and Transformer |
Induction Steel Bar forging machine Datum:
1. Technique data
Power range: 30KVA-1000KVA
Frequency range: 0.1KHz-20KHz
2. Feature
(1)Adopts series resonance technique, induction coil output high voltage and small current, resonance circuit loss is average lower 25 times than parallel resonance, whole machine save energy 10-20%. It saves energy 50% and more than old fashion medium machine. It is the most save electric heating equipment in domestic at present.
(2)Induction furnace adopts thermal insulation, keep temperature, insulation technique processing, not only heat loss minimum, and greatly reduces the sensor maintenance cost. Induction coil structure is simple, easy maintenance, the abandonment of traditional casting process, won't have crack and scrap.
(3) The 12 pulse technology thorough solve the induction heating machine pollution problem to power network.
(4) Improve coil voltage and save energy, at the same time, adopts patent technology
solved throughtly for the coil voltage high lead in flint fault, bringing unsafe factors.
(5) Integration design, compact structure, simple operation,
(6) bar could heat to Φ300mm, the furnace and core temperature controlled.
(7) It has finished forging to copper, aluminium,etc.
(8)Configure automatic feeding, feed, sorting, fast material,etc, it can realize automation control.
Closed-loop water cooling system for induction heating machine cooling:
1.Technique data
Input voltage;three phase 380V±10%
Rated voltage: three phase 380V 50Hz
Cooling capacity:31100Kcal/h-1806000Kcal/h
2. Feature
Cooling water tower movement all adopt in thermal efficiency high copper tube, let the working fluid (water or other liquid) in its line through, through the fan and air for natural heat exchange, one-time finish. It is not only energy conservation and environmental protection,but also tube is clean and unobstructed, reduce the failure rate, prolong the useful life of the equipment. Closed circulating cooling reduce pipe corrosion and scaling, do not need to pool, covers an area of small, convenient to move, energy saving, simple operation.
Customer service:
Call or e-mail us any time. Before you place your order, we will be happy to discuss your detailed requirements with you and help you find a selection of machine that is just right for your market.
Quick Delivery:
With your wide requested of faucets with even less than our MOQ, we are able to fulfill most requests within short days of your order.
Promise:
Customers Satisfaction, provide good quality and reasonable price and constant after sale service to be engaged in 100% of us .
Zhengzhou Kechuang Electronic Co., Ltd, as a king induction heating machine manufacturer in China, we have the following advantages:
1. Induction heating machine power from 8KW-1000KW, with frequency range from 0.1kHz-500kHz.
2. Main circuit adopts Siemens IGBT series resonance circuit.
3. We focus on the metal parts heat treatment production line.
4. We cooperate with the Zhengzhou University.
5. We have CE, SGS certification.
Zhengzhou Kechuang Electronic Co., Ltd is Henan high& new technology enterprise, China heat treatment association membership. From the company's founding, Kechuang Electronic always takes the scientific& technological innovation as the company development driving force. Company has obtained more than ten national patents, has won many many national and provincial science&technology innovation award. Set up henan province induction heating engineering center, has developed hundreds of market welcome products. Has already passed the European Union CE certification, not only in all over China, Asia, Europe, America, Africa, Oceania, everywhere you can see kechuang products and also the engineer local service figure.
