Welding-Neck Flanges
1. We SGS manufacture a wide range of Flange to meet your different demands: Blind flange, Plate flange, Slip on flange, Weld neck flange, Threaded flange.
2. Be your best choice of one-stop hydraulic fitting procurement.
4. Professional flange Supplier.
5. Flange China Manufacturer.

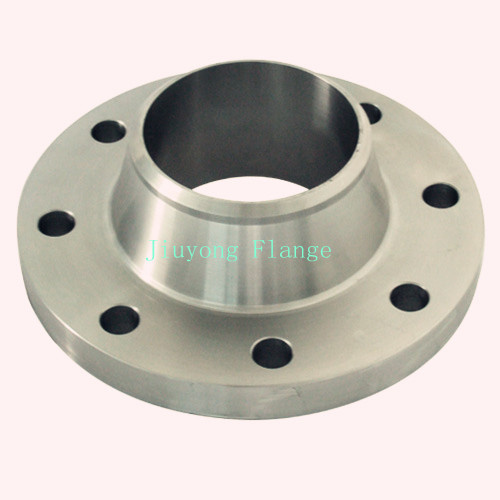

Welding-Neck Flanges are distinguished from other types by their long tapered hub and gentle transition of thickness in the region of the butt weld joining them to the pipe. The long tapered hub provides an important reinforcement of the flange proper from the standpoint of strength and resistance to dishing. The smooth transition from flange thickness to pipe wall thickness effected by the taper is extremely beneficial under conditions of repeated bending, caused by line expansion or other variable forces and produces an endurance strength of welding neck flanged assemblies equivalent to that of a butt welded joint between pipes, which, in practice, is the same as that of unwelded pipe. Thus this type of flange is preferred for every severe service condition, whether this results from high pressure or from sub-zero or elevated temperature, and whether loading conditions are substantially constant or fluctuate between wide limits.
Standard: ANSI B16.5, ANSI B16.47 Series A & B, ANSI B16.48, API 605, API 16D, API 17D, BS4504, BS3293, DIN, AS, JIS
Material:
Carbon Steel: ASTM A105, ASTM A350 LF1, LF2 CL1/CL2 LF3 CL1/CL2, ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70
Stainless Steel: ASTM A182 F304/304L, F316/316L, F316H, F316Ti, F321, F44(UNS S31254)
Alloy Steel: ASTM A182 F1, F5/a, F9, F11, F12, F22, F91
Duplex&Super Duplex Steel: ASTM A182 F51/UNS S31803, F53/UNS S32750 F55/UNS S3260
Special Alloy Steel: Monel400, Inconel 600, Inconel 625, Inconel 800, Inconel 825, Inconel C276
Size: 1/2"-60"
Types of Flanges Available: Weldnecks, Slip-Ons, Threaded, Blind, Socketweld, Lap-Joint, Orifice, Reducing Flange and Specials.
Types of Flange Faces: Raised Face, Flat-Face, Ring Joint, Tongue & Groove, and Male & Female.
|
1>Material |
Carbon steel(A105, Q235, ST37.2, SS400) |
|
2>Type |
Blind, Plate, Slip on, Weld neck, Threaded |
|
3>Size |
1/2"-60"(DN15-DN600) |
|
4>Satndard |
ANSI, DIN, JIS, EN1092-1, UNI1092-1, 12802-80 |
|
5>Pressure |
Class150, 300, 600, 900; PN6, PN10, PN16, PN25, PN40; 5K, 10K, 16K, 20K |
|
6>Packing |
Wooden cases |
|
7>MOQ |
200 PCS |
Qingdao Jiuyong Hydraulic Power Co., Ltd is a specialized SGS China factory with hydraulic hose assembly, hydraulic hose, hydraulic fittings and concrete pump production experience for many years.
Our managing scope relates to various fields such as hydraulic system etc; Including all kinds of the materials with different pressure levels, the flexible hydraulic hoses with various size criterions, hydraulic fittings, hose fittings, adaptor, elbow, tee, cross, ferrule, flange etc.
We have advanced imported crimping machine for hydraulic hose assembly. Providing reliable products at reasonable prices has won us customers all over 20 countries and regions, such as Russia, Brazil, Pakistan, Vietnam, Spain etc. Welcome to visit and negotiate business.
We are looking forward to established long-term cooperation relation with you, and create a better future together.
