| Price: | US $ 3-6/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
|

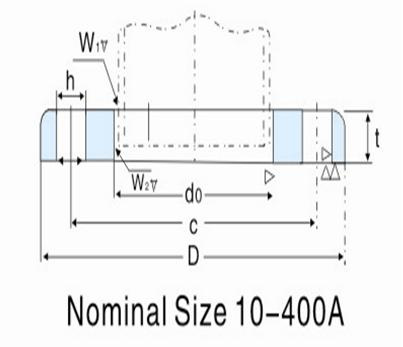

Nominal Pipe size |
Outside Dia of applicable pipe |
Inside Sia. Of flange do |
Outside dia. Of Flange D |
Sectional Dimensions of Flange | ||||
| t | T | Dia.of Hub |
Radius r |
|||||
| a | b | |||||||
|
(10) 15 (20) |
17.3 21.7 27.2 |
17.8 22.2 27.7 |
75 80 85 |
9 9 10 |
||||
|
25 (32) 40 |
34.0 42.7 48.6 |
34.5 43.2 49.1 |
95 115 120 |
10 12 12 |
||||
|
50 65 80 |
60.5 76.3 89.1 |
61.1 77.1 90.0 |
130 155 180 |
14 14 14 |
||||
|
(90) 100 125 |
101.6 114.6 139.8 |
102.6 115.4 141.2 |
190 200 235 |
14 16 16 |
||||
|
150 (175) 200 |
165.2 190.7 216.3 |
166.6 192.1 218.0 |
265 300 320 |
18 18 20 |
||||
|
(225) 250 300 |
241.8 267.4 318.5 |
243.7 269.5 321.0 |
345 385 430 |
20 22 22 |
||||
|
350 400 450 |
355.6 406.4 457.2 |
358.1 409.0 460.0 |
480 540 605 |
24 24 24 |
40 |
495 |
500 |
5 |
|
500 550 600 |
508.0 558.8 609.6 |
511.0 562.0 613.0 |
655 720 770 |
24 26 26 |
40 42 44 |
546 597 648 |
552 603 654 |
5 5 5 |
|
650 700 750 |
660.4 711.2 762.0 |
664.0 715.0 766.0 |
528 875 945 |
26 26 28 |
48 48 52 |
702 751 802 |
708 758 810 |
5 5 5 |
|
800 850 900 1000 |
812.8 863.6 914.4 1016.0 |
817.0 868.0 919.0 1021.0 |
995 1045 1092 1195 |
28 28 30 32 |
52 54 56 60 |
854 904 956 1058 |
862 912 964 1066 |
5 5 5 |
| Dia of Bolt |
Nominal Bolt Size |
Welding |
Weight (kg) |
|||
|
Bolt Circle Diameter C |
Number Of Boll Holes |
Hole Diameer h |
W1 | W2 | ||
|
55 60 65 |
4 4 4 |
12 12 12 |
M10 M10 M10 |
5 5 5 |
2.5 3 3 |
0.27 0.30 0.37 |
|
75 90 95 |
4 4 4 |
12 15 15 |
M10 M12 M12 |
5 6 6 |
3 3 3 |
0.45 0.78 0.83 |
|
105 130 145 |
4 4 4 |
15 15 19 |
M12 M12 M16 |
6 6 6 |
3 4 4 |
1.07 1.49 1.99 |
|
155 165 200 |
4 8 8 |
19 19 19 |
M16 M16 M16 |
6 7 7 |
4 4 4 |
2.09 2.39 3.23 |
|
230 260 280 |
8 8 8 |
19 23 23 |
M16 M20 M20 |
7 7.5 8.5 |
5 5 6 |
4.41 5.51 6.33 |
|
305 645 390 |
12 12 12 |
23 23 23 |
M20 M20 M20 |
9 10 10 |
6 6 6 |
6.64 9.45 10.30 |
|
435 495 555 |
12 16 16 |
25 25 25 |
M22 M22 M22 |
12 12 12 |
7 7 7 |
14.00 16.90 24.80 |
|
605 665 715 |
20 20 20 |
25 27 27 |
M22 M24 M24 |
12 12 12 |
7 7 7 |
26.90 34.10 37.50 |
|
770 820 880 |
24 24 24 |
27 27 33 |
M24 M24 M30 |
12 12 12 |
7 7 7 |
42.80 45.40 57.40 |
|
930 980 1030 1130 |
24 24 24 28 |
33 33 33 33 |
M30 M30 M30 M30 |
13 13 13 14 |
8 8 8 9 |
60.80 63.50 75.30 88.50 |
| Prod Model: | FF |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Way: | Casting |
| Material: | Stainless Steel |
| Type: | Welding Flange |
| Standard: | ANSI,DIN,JIS |
