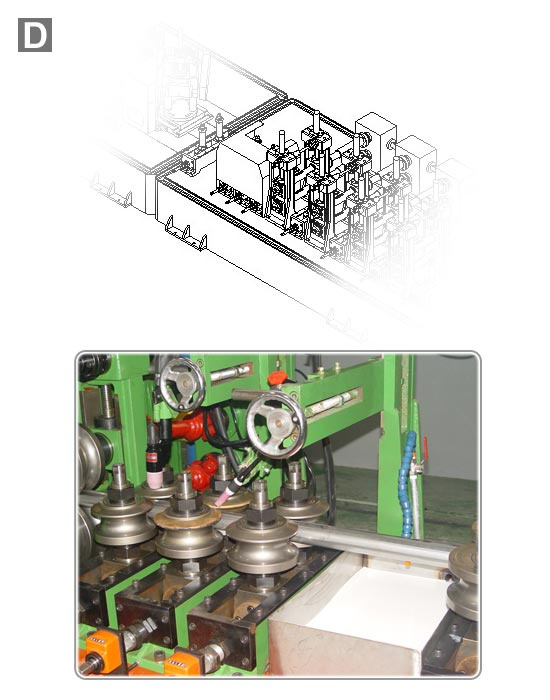

1. Professional supplier for stainless steel pipe making machine; Stainless steel tube machine; Automatic stainless steel pipe welding machine
2. Mainly components: Open-book machine, forming welding machine, grinding machine, two sizing units, frame straightening, cutting machine, finished frame;
3. Application: Mainly for the production of stainless steel pipe;
4. As the mature technology of stainless steel welded pipe, seamless pipe has been replaced in many areas (such as chemical, pharmaceutical, brewery, oil, food, automotive, paper, and air conditioning industry and widely used. )
5. Automated production processes: The open book, cleaning equipment, feed direction, forming, welding, weld the entire inner peace, outer weld grinding, shaping sizing, solution treatment, the final sizing, straightening, testing, marking, set feet, cut off, then materials such as continous molding process.
6. Fine structure, easy operation, specialized in manufacturing.
(Model) |
Horizontal axis diameter (mm) |
Vertical diameter (mm) |
Pipe
diameter
(mm) |
Pipe thickness (mm) |
Main motor power |
(Mechanical assembly size
(Length X width |
|
BG-30 |
30 |
25 |
6-25 |
0.2-0.8 |
4KW |
19, 5m X 1.0m |
|
BG-40 |
40 |
25 |
6-32 |
0.2-1.0 |
5.5KW |
20m X 1.0m |
|
BG-40 |
40 |
25 |
9-51 |
0.2-1.5 |
7.5KW |
21.5m X 1.1m |
|
BG-40 |
40 |
25 |
12-64 |
0.3-2.0 |
11KW |
21.5m X 1.1m |
|
BG-50 |
50 |
30 |
25-76 |
0.3-2.5 |
11KW |
24m X 1.2m |
|
BG-60 |
60 |
40 |
38-114 |
0.4-3.0 |
15KW |
26m X 1.4m |
|
BG-80 |
80 |
50 |
76-168 |
1.0-3.5 |
18.5KW |
32m X 2.3m |
|
BG-100 |
100 |
60 |
114-219 |
1.0-4.0 |
22KW |
36m X 2.5m |
|
Heater plane |
30 |
20 |
5-16 |
0.2-1.0 |
4KW |
17m X 0.9m |
|
Machinery main components: open-book machine, forming welding machine, grinding machine, sizing machine, straightening frame, cutting machine, finished frame |
Foshan Baiguan Science and Technology Co., Ltd, located in Foshan Shishan Industrial Park, is a whole-plant equipment manufacturer of the stainless steel tube mill, specialized in research, development, design, production, sales, and support services.
Our company has strong technical force and overall quality. We have a professional welded pipe R & D team, management team, and more than 50 capable technicians. Also, we established an advanced computer simulation laboratory and workshop in equipment development experiments.
We strictly carry out the ISO9001 international quality management system standard. After several years development and innovation, through the staff's pursuing and full use of modern management and advanced precision machinery processing equipment, we establish a complete operating system throughout home and abroad. Quality products and attentive service not only have won a large number of loyal customers for the company, but also achieved recognition from the industry and authorities.
Based on stainless steel welded pipe equipment, we created our brand of "BG" for a dozen specifications of products, including industrial pipe making machine, weld seam-inside leveling machine, bright annealing equipment, high frequency welding tube mill, stainless steel decoration pipe making machine, polishing machine, mold, embossing machine, milling machine etc.
To go with the development of the times, and to meet the diverse needs of customers, our company will go hand in hand with a innovation attitude. As customers continue to recognize, our products have been selling both at home and abroad.
Our company's corporate philosophy is " win by technology, strive for excellence". We forge ahead by working ways of "scientific, rigorous, innovative"; Hunt for the latest industry information with sharp market insights. We are LED by market demand. Customer-oriented is our core value. We are sure to provide our customers with quality products and first-class services.
We warmly welcome you to visit our company and negotiate win-win cooperation so as to create a better future!
Keyword: Tube Mill, Polishing Machine, Pipe Making Machine, Stainless Steel Pipe Machine
