| Price: | US $ 0.1-10/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Ningbo HAGA Metal Products Co,. Ltd | |

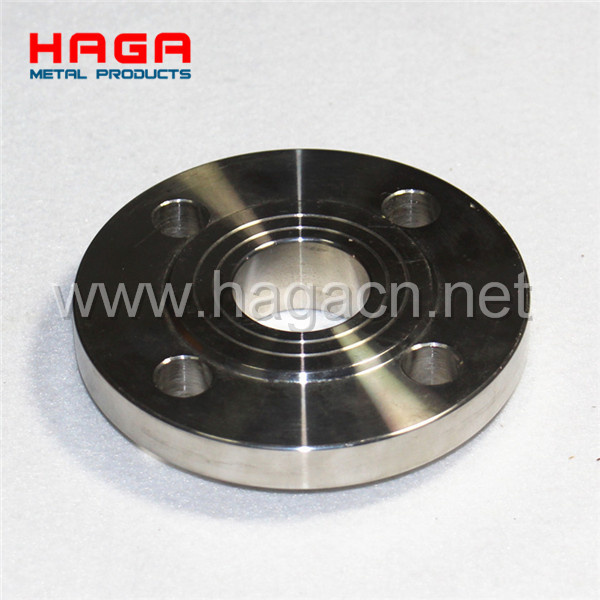

Full Name | Flanges |
Material | Stainless Steel 304, 304L, 316, 316L, Carbon Steel |
Standard: | ANSI,BS,DIN, EN1092-1, JIS, ans so on |
ANSI Flanges | |
Dimension: | ANSI B16.5, B14.47, B16.36, B16.48 |
Material Spec.: | ASTM A182, A351, DIN, ASTM A105, A216 WCB |
Material Grades: | F305, F304L, F316, F316L, CF8, CF8M, CF3M |
DIN1.4301, DIN1.4306, DIN1.4401, DIN1.4404 | |
DIN1.4308, DIN1.4408, DIN1.4306, DIN1.4409 | |
DIN1.0402, DIN1.0460, DIN1.0619 | |
Class: | 150, 300, 400, 600, 900, 1500, 2500 |
Flange Type: | Weld Neck, Threaded, Slip-on, Lap Joint, Socket Weld, Blind |
BS Flanges | |
Dimension: | BS4504 |
PN: | 2.4, 6, 10, 16, 25, 40 |
Flange Type: | Weld Neck, Threaded, Slip-on, Lap Joint, Socket Weld, Blind |
DIN Flanges | |
Description: | 1) Blind Flange |
DIN2527, Rate Pressure: 6 - 100 bar | |
2) Flat Flange for welding (Slip on) | |
6Bar DIN2573, 10Bar DIN2576, 16Bar DIN2502, 25/40Bar DIN2503 | |
3) Welding Neck Flange | |
1/2.5Bar DIN2630, 6Bar DIN2631, 10Bar DIN2632, 16Bar DIN2633, | |
25Bar DIN2634, 40Bar DIN2635, 64Bar DIN2636, 100Bar DIN2637, | |
160Bar DIN2638, 250Bar DIN2628, 320Bar DIN2629, 400Bar DIN2627 | |
4)Lapped (lapped joint) flange, Plain collar | |
6Bar DIN2641, 10Bar DIN2642, | |
5)Loose flange and ring for welding (slip-on flange and plain collar) | |
6Bar DIN2652, 10Bar DIN2653, 25Bar DIN2655, 40Bar DIN2656, | |
6)Loose flange and ring with neck for welding | |
10Bar DIN2673 | |
7)Oval plain threaded flange | |
6Bar DIN2558 | |
8)Oval plain, with neck threaded | |
10/16 Bar DIN2561 | |
9)Thread flange with neck | |
6Bar DIN2565, 10/16 DIN2566, 25/40Bar DIN2567, | |
64Bar DIN2568, 100Bar DIN2569 | |
10)Long neck welding flange | |
10/25Bar DIN28115 | |
11)Hubbed slip-on flange for welding | |
10Bar DIN86029, 16Bar DIN86030 | |
EN1092-1 Flanges | |
Description: | 1) Plate (Slip on) flange for welding |
6/10/16 /25/40/63/100 Bar | |
2)Loose plate flanges with weld-on plate collar | |
6/10/16 /25/40/63 Bar | |
3)Loose plate flanges with weld-neck collar | |
6/10/16 /25/40/63 Bar | |
4) Blamk (Blind) Flange | |
6/10/16 /25/40/63/100 Bar | |
5) Welding Neck Flange | |
6/10/16 /25/40/63/100 Bar | |
6)Hubbed slip-on flange for welding | |
6/10/16 /25/40/63/100 Bar | |
7)Hubbed threaded flanges | |
16/40/63/100 Bar | |
8)Integral Flanges | |
6/10/16 /25/40/63/100 Bar | |
9)Weld-on plate collars | |
6/10/16 /25/40 Bar | |
10)Lapped pipe ends | |
6/10/16 /25/40 Bar | |
11)Weld-Neck Collars | |
6/10/16 /25/40 Bar | |
JIS Flanges | |
Description: | 2/5/10 /16/20/30/40/63 kg/c m2 |
| Prod Model: | Flange |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: | ANSI B16.5, B14.47, B16.36, B16.48 |
| Material Spec: | ASTM A182, A351, DIN, ASTM A105, A216 Wcb |
| Standard: | BS En1092-1 and So on |
| Type: | Welding Flange |
| Material: | Stainless Steel |
| Manufacturing Way: | Forging |
