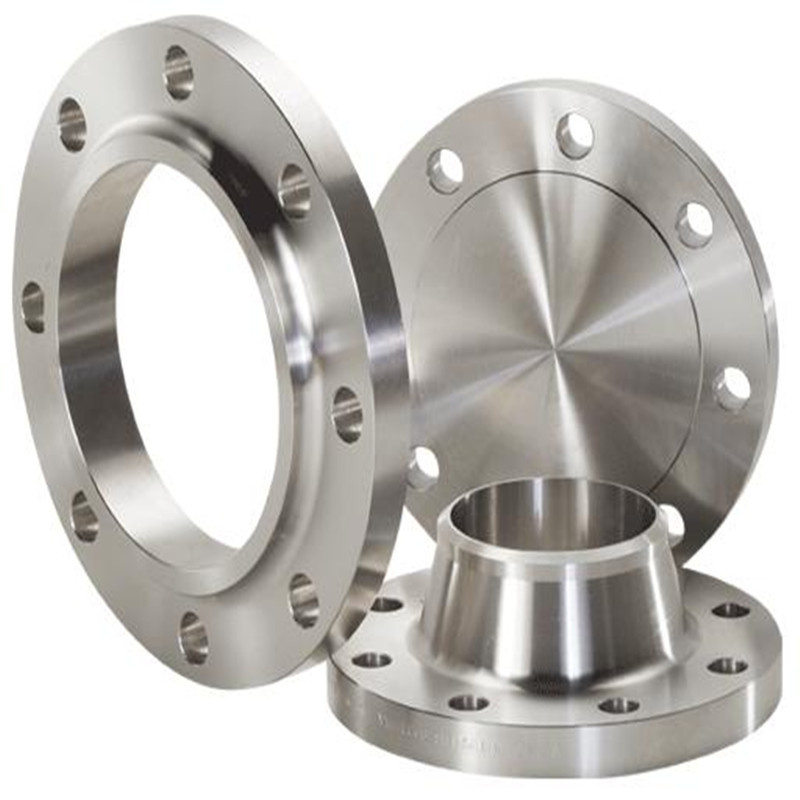

Stainless Steel Flange with High Quality (SSFWHQ)

Stainless Steel Flange with High Quality (SSFWHQ)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Contact Supplier
Shanghai Baobo Steel Pipe Co., Ltd.
Showroom Product Company Profile
Stainless Steel Flange(plate. Slip-on, welding neck, threaded, socket weld, lap-joint flange, reducing flange, blind flange, )
1. ANSI FLANGES
Standard:
ANSI B16.5ANSI B16.47MSS SP44ANSI B16.36
ANSI B16.48
Types:
Welding Neck Flanges, Slip on Flanges, Threaded Flanges,
Socket Welding Flanges, Blind Flanges, Orifice Flanges,
Lap Joint Flanges, Ring Joint Flanges, Long Welding Neck Flanges, Figure 8 Blanks
PRESSURE GRADE:
Class150, Class300, Class600, Class900, Class1500, Class2500
SIZE: 1/2" NB TO 48" NB

2. DIN FLANGES
Standard:
DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642,
DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN2631
DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637
DIN2638, DIN2673
Types:
Welding neck FflangesSlip on FlangesThreaded Flanges
Socket Welding Flanges, Blind Flanges
PRESSURE GRADE:
6Bar, 10Bar, 16Bar, 25Bar, 40Bar
SIZE: DN10-DN1000
3. JIS B2220 FLANGES
Types: Sop type; Soh type; Plate Flanges; Blind Flanges
Pressure Class5K10K16K20K30K
SIZE: 10A-1500A
4. BS FLANGES
Standard: BS 4504 SEC 3.1: Welding neck Flanges(111/134), Hubbed Slip on Flanges(112), Hubbed Threaded Flanges(113), Lapped Pipeend FlangesE(133), Plate Flanges(101), Loose Plate Flanges(102), Loose Plate With Weld-neck Flanges (104), Blank Flanges(105)
PRESSURE GRADE: PN2.5 TO PN40
Standard: BS 4504(PART-1)
PRESSURE GRADE: PN2.5 TO PN40
Standard: BS 10: Welding neck Flanges, Plate Slip-on Flanges, Screwed Boss Flanges, Slip on Boss Flanges, Blind Flanges
TYPES: Table: D, E, F, H
SIZE: 1/2" NB TO 48"NB
5. EN 1092-1: 2001 FLANGES
SIZE: TYPE1(Plate Flanges); TYPE2(Losse Plate Flanges); TYPE5(Blank Flanges); TYPE11(Weld-neck Flanges); TYPE12(Hubbed Slip-on Flanges For Welding); TYPE13(Hubbed Threaded Flanges)
Pressure ClassPN2.5PN6PN10PN16PN25PN40PN63PN100
SIZE: 1/2" TO 48"
6. UNI FLANGES
TYPES: UNI227622772278608360846088608922992280228122822283...(PLSOWNBLTH) FLANGES
Pressure ClassPN0.25-250MAP
SIZE: 1/2" TO 48"
7. GOST FLANGES
TYPES: Plate Flanges(GOST12820-80); Blind Flanges(GOST12836-67); Wedling neck Flanges(GOST12821-80); Steel Butt-Welded Flanges GOST12821-80
Pressure Class: PN=0.6--PN10, 0 (100 /2)
SIZE: 1/2" TO 48"
8. AS2129 AND AS4087 FLANGES
TYPES: 1. Plate Flanges Table D Blind; 2. Plate Flanges Table D Slip on Drilled; 3. Plate Flanges Table E Blind; 4. Plate Flanges Table E Slip on Drilled; 5. Flanges Tables H Blind; 6. Plate Flanges Table H Slip on Drilled; 7. DIN PN16 Plate Flanges; 8. Forged Flanges Table D Slip on; 9. Forged Flanges Table D Screwed; 10. Forged Flanges Table D Screwed GAL; 11. Forged Flanges Table E Slip on; 12. Forged Flanges Table E Screwed; 13. Forged Flanges Table E Screwed GAL; 14. Forged Flanges Table H Slip on; 15. Forged Flanges Table H Screwed
SIZE: 1/2" TO 48"
item

standard No.

size

PN

Type

Material


1

ANSI B16.5

1/2"--24"

150-2500LBS

BL,SO,SW,LJ,WN,THD

A105, A350LF2, A182 F11A182 F304/F304L,F316/F316L


2

LONG WN

1/2"--24"

150-2500LBS

Long welding-neck

A105, A350LF2,A182 F304/F304L,F316/F316L


3

ANSI B16.47 A(MSS SP-44)

26"--60"

150--900LBS

BL,WN

A105, A350LF2, A694,A182 F304/F304L,F316/F316L


4

BS3293-1960 STANDARD

26"--48"

150-600LBS

SO,WN

A105, A350LF2,A182 F304/F304L,F316/F316L


5

ANSI B16.47 B(API605)

26"--60"

75--900LBS

BL,WN

A105, A350LF2,A182 F304/F304L,F316/F316L


6

ASMEB16.36 STANDARD

1"--24"

300--2500LBS

SO,WN,THD

A105, A350LF2,A182 F304/F304L,F316/F316L


7

AWWA C207

4"--144"

Class B,D,E,F T/1

PL

A105,A181 A36,

A516Gr.60,65,70


8

EN1092-1:20002 STANDARD

DN10-4000

PN2.5,6,10,16,

25,40,63,100

TYPE01,02,04,05,11,

12,13,21,32,33,34

EN10025(S235JRG2),

EN10222-2AND3

(P245GH ANDP280GH),

EN10222-5(1.4303,1.4306,

1.4307,1.4401,1.4404,

1.4435,1.4541,1.4571)

A105/C21/1.0432 C22.8/

P150GH/1.0460


9

BS4504 SEC.3.1/1989 STANDARD

NS15-2000

PN2.5,6,10,16,

25,40

CODE101,102,104,105,111,

112,113,121,132,133,134

BS970 070M20 BS4360

GR.43A BS1503-164 GR.490

BS 1503-224 GR.410

BS 1503-304S11

304S31 321S31 316S31 316S11


10

BS10-1962 STANDARD

NB10-3000

TABLE D/ E /F/H/J

SO THD BL WN

BS1501-161 GR.B AND C BS1633

GR.B BS 1503-240

GR.240 BS 1503-620 BS3604


11

ISO 7005-1 STANDARD

DN10-4000

PN2.5,6,10,16,20,

25,40,50,110,150,

260,420

TYPE01,02,03,04,05,11,

12,13,14,15,21,32,33,34

ISO2604-1 F8 F9 F13

F18 F22 F49 F62 F46 F59


12

NFE29203 STANDARD

DN10-600

PN2.5,6,10,16,20,

25,40,50,100,150,

250,420

TYPE01,02,03,04,05,11,12,

13,14,15,21,32,33,34,35

NFE29204 BF 42 BF42N

BF48 BF48N


13

JIS B2220 STANDARD

10A-1500A

PN5K,10K,16K,

20K,30K

SOP(PL) SOH(SO A B C ) WN

JIS G3101 SS41

JIS G3201 SF40A(S20C)

AND SF45A(S25C) JIS G3202 SFVC1

AND SFVC 2A


14

DIN STANDARD

DN10-4000

PN2.5,6,10,16,25,

40,64,100,160

SO,BL,PL,WN,LOOSE,THD

RST37.2/1.0038/

DIN17100C22.8/1.0460

A105/C21/1.0432 1.430 1.4307 1.4401 1.4404 1.4541 1.4571/DIN17440
Prod Model: Size: 1/2"-96"
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Stainless Steel
Manufacturing Way: Casting
Standard: BSW
Type: Welding Flange
Shanghai Baobo steel pipe Co., Ltd is branch company of Tianjin Boai Enterprise that specialized in the field of piping products.

We mainly export oil and casing pipe, line pipe, petroleum & natural gas pipe, stainless steel pipe, structure pipe, spiral pipe, anticorrosion pipe, insulating pipe and galvanized steel pipe, etc. It is produced by our group mill: Tianjin Boai Steel Pipe Co., Ltd, Tianjin Boyu Steel Pipe Co., Ltd and Kejian anticorrosion Co., Ltd. Meanwhile we also supply seamless pipes, square & retangular pipes, angle bars, steel sections, steel strips, steel plate and other allied steel products.

Our factory invest US$ 60 million and covers 300 thousand square meters. With annual output of ERW pipe 200000 tons, spiral pipe 100000 tons, anticorrosion pipes 7000000 square meters. We can produce these pipes strictly according to the standard API 5L\ API 5CT\ASTM A312, ASTM A213, ASTM A554, ASTM A269, ASTM A789, ASTM A53, \BS1387\ DIN2440\ EN10219\ JIS 3101\ JIS 3115\ GB/T14291-2006\ GB/T3091-2008, With steel grade GR. B\X42\X52\X70\S355JR \S235JR \J55 \TP304\TP316\2205\TP317 etc. Our product have been export to more than 20 countries. USA, Europe, Australia, Canada, India, Southeast Asia, The Middle East, Africa, South American and obtained accordant appreciation form clients.

We will continue to provide our customers the best quality, the most competitive price, the best service, and we will supply as per the market demand, offer personalized value-added service and form the competitive advantage in direct supply and reliable supplier and partner in China. We are looking forward to your long-term friendly cooperation to achieve common development and mutual benefit.
