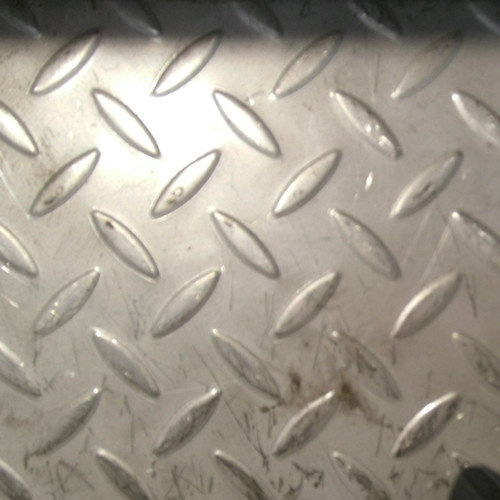

Stainless Steel Checkered Plate with High Quality and Cheapest Price
| Price: |
US $ 2300-4460/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T |
Hot rolled steel with the slab (mainly for the continuous casting billet) as raw materials, after heating , made strips by roughing mill group and finishing mill group. From finishing the last hot steel strip mill out through laminar flow cooling to the set temperature, which consists of the winder coil, steel coil after cooling, according to the different needs of users, with different finishing line (flat, straightening, transverse or longitudinal cutting, inspection, weighing, packaging and logo, etc.) and processed into steel plate, flat roll and longitudinal cutting steel strip products. Due to the strip steel products with high strength, good toughness, easy to processing molding and good weld-ability and other excellent properties, and therefore is widely used in ship, automobile, Bridges, buildings, machinery, pressure vessels and other manufacturing industries.
1. Item: Stainless steel Embossed plate
2. Model No.: 201, 202, 301, 302, 303, 304, 304L, 305, 316, 316L, 309S, 310, 310S, 317, 317L, 321, 321L, 347 etc.
3. Standard: ASTM, JIS, SUS, DIN, En, GB
4. Pattern: Diamond, Hyacinth Bean, Chrysanthemum or be required
5. Thickness: 0.3mm-100mm'
6. Length: 2000mm, 2438mm, 2500mm, 6000mm, 6096mm, or as your requirement
7. Width: 1000mm, 1219mm, 1250mm, 1500mm, 2500mm, or as your requirement
8. Payment Term: T/T, L/C, Western Union
9. Package: Standard export package or be required
Commodity | Stainless Steel Embossed Plate |
| Brand | TISCO, Baosteel, Baoxin, KDKC, SKS, ThyssenKrupp, etc |
| Standard | ASTM, AISI, EN, JIS |
| Advantages | Excellent and high quality control; Competitive Price; Ample stockage, Prompt delivery; Firm in structure; Durable in use; Strong corrosion |
| Applications | Machine-made industry, Chemical industry, Shipping industry, Architecture, Food industry, Household products, Bridges, Transmission tower, etc. |
| Certification | ISO/SGS |
| Export Markets | North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe |
| Price Terms | FOB, CIF |
| Payment | TT, L/C |
| Delivery Time | about 10 days after the confirmation of the deposit |
| Package | Export standard package or be required |
Specifications
Specification |
1000mm * 2000mm, 1219mm * 2438mm, 1219mm * 3048mm or as your requirement |
Surface |
diamond, strip-type , T-type |
Type |
plate/sheet |
Length |
1000-6000mm as your requirement |
Width |
1000-2000mm as your requirement |
Thickness |
0.3-10mm |
Usage |
?Escalator, Elevator, Doors
?Machinery and Packaging
? Antiskid Plate |
Parking |
seaworthy wooden pallets or wooden cases. in 20' or 40' container or as per customers' requirements |
Payment |
Small quantity (within total $2000.00) T/T at sight, 30% in advance , 70% after receiving the B/L . Large quantity L/C at sight |
Delivery Time |
10 days after received the deposit of T/T or L/C |
Chemical Composition
Table 1. Typical chemical composition for 304 stainless steel |
% |
304 |
304L |
304H |
C |
0-0.07 |
0-0.03 |
0.04-1 |
Mn |
0-2.0 |
0-2.0 |
0-2.0 |
Si |
0-1 |
0-1 |
0-1 |
P |
0-0.05 |
0-0.05 |
0-0.05 |
S |
0-0.02 |
0-0.02 |
0-0.02 |
Cr |
17.5-19.5 |
17.5-19.5 |
17.5-19.5 |
Ni |
8-10.5 |
8-10.5 |
8-10.5 |
Table 2. Typical mechanical properties for 304 stainless steel |
Grade |
304 |
304L |
304H |
Tensile Strength (MPa) |
520-720 |
500-6070 |
520-720 |
CompressionStrength (MPa) |
210 |
- |
- |
Proof Stress 0.2% (MPa) |
210 |
200 |
210 |
Elongation A5 (%) |
45 Min |
45 Min |
40 Min |
Hardness Rockwell B |
92 |
- |
- |
Table 3. Typical physical properties for 304 stainless steel |
Property |
Value |
Density |
7.93 g/cm3 |
Melting Point |
1450°C |
Modulus of Elasticity |
193 GPa |
Electrical Resistivity |
0.072x10-6 Ù.m |
Thermal Conductivity |
16.2 W/m.K |
Thermal Expansion |
17.2x10-6 /K
|
| Prod Model: |
Grade A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Length: |
Customized |
| Width: |
1000mm ~ 12000mm or as Required |
| Thickness: |
0.3-100mm |
| Surface: |
2b,Ba,Hl,No1,No4,etc. |
| Place Of Origin: |
Tianjin,China(Mainland) |
| Type: |
Steel Plate |
| Standard: |
JIS |
| Surface Treatment: |
Coated |
| Technique: |
Cold Rolled |
| Application: |
Container Plate |
| Special Use: |
Wear Resistant Steel |
| Stock: |
Stock |
Our company is one of the biggest manufacturer and supplier of stainless steel plate and coil in North China. For the stainless steel plate and coil, we guarantee the quality and ensure that the price is attractive. For the cold rolled stainless steel plate, the thickness we have: 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm. For the hot rolled stainless steel sheet, the thickness we have: 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm, 12.0mm, 14.0mm, 16.00mm, 20.00mm and so on. For these thicknesses above, all the stainless steel sheet and coil we arrange directly from big factories such as: TISCO, JISCO, BISCO, KSK, and KRUPP. For the thickness above 20.00mm, we can manufacture for you, the max thickness of stainless steel sheet and coil we can produce for you is 100.00mm. The grades we supply are: 201, 202, 301, 304, 304L, 321, 316, 316L, 30910s, 347H etc.
Type: Stainless steel plate /sheet
Thickness: 0.3 mm-80mm
Width: 1000mm, 1219mm, 1240mm, 1500mm, 1800mm, 2000mm
Length: 2000mm-6000mmor as customer request
Material: 201, 202, 301, 321, 304, 304L, 316, 316L, 309S, 310S, 410, 410S, etc
Surface: 2B, BA, 8K, No. 4
Technique: Hot rolled / cold rolled
Delivery time: 10-30 days
Application: Range Foodstuff, gas, metallurgy, biology, electron, chemical, petroleum, boiler, nuclear energy Medical equipment, fertilizer, etc.
Note: We can produce other standard as the customers' requirement
