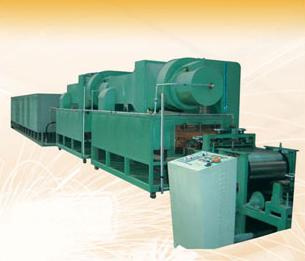

Stainless Steel Bright Annealing Production Line without Muffle (GW)

Equipment structure:
This production line is made up of the following parts: Uncoiler, roll- up truck, crosscut shear, temper mill, front water jacket, furnace body without muffle, post water jacket, air cooling structure, tension roller, winder, coil stripping car, temperature control system, drive control system, ammonia decomposition equipment.

Advantages:
Δ Instead of using high nickel stainless muffle tank, saving expensive consumables;
Δ Reducing heat receivers inside the furnace can save energy consumption.
Δ High temperature heaters produce direct radiation on heating steel strips, enhancing the heating efficiency.
Δ Adopting power-regulating heating mode can save energies and prolong the service life of the heater.
Δ Adopting adjustable cooling style reduces greatly the operation and maintenance cost.
Δ The service life of the equipment is long, which can reduce greatly the operation and maintenance cost.

Model GW-5007-12 GW-6007-12 GW-6009-12 GW-7009-12 GW-8009-12 GW-9009-12 GW-6010-12 GW-7010-12 GW-8010-12 GW-9010-12 GW-7012-12 GW-8010-12 GW-9012-12 GW-10012-12 GW-11012-12 GW-8014-12 GW-9014-12 GW-10014-12 GW-11014-12
Rated Power(KW) 150 180 210 240 300 320 240 270 320 360 320 380 430 480 530 430 500 560 600
Rated Voltage(V) 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380
Phase 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
Rated Temp. (? ) 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200
Heating Area Length(mm) 7000 7000 9000 9000 9000 9000 10000 10000 10000 10000 12000 12000 12000 12000 12000 14000 14000 14000 14000
Max. Belt Width(mm) 500 600 600 700 800 900 600 700 800 900 700 800 900 1000 1100 800 900 1000 1100
Productivity(Kg/h) 450 550 700 800 900 1000 750 900 1000 1150 1050 1200 1350 1500 1650 1400 1550 1750
