| Price: | US $ 5.4/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Pipe Mating Dim | Flange |
Raised Face |
|||||||
|
Nominal width |
D1 | D | t |
K |
T |
D4 | f | ||
|
Welding Neck |
Slip on |
Blind | |||||||
|
10 15 20 |
14 17.2*) 20 21.3*) 25 26.9*) |
90 95 105 |
14 14 16 |
14 14 16 |
14 14 16 |
60 65 75 |
35 35 38 |
40 45 58 |
2 2 2 |
|
25 32 40 |
30 33.7*) 38 42.4*) 44.5 48.3*) |
115 140 150 |
16 16 16 |
16 16 16 |
16 16 16 |
85 100 110 |
38 40 42 |
68 78 88 |
2 2 3 |
|
50 65 80 |
57 60.3*) 76.1 88.9*) |
165 185 200 |
18 18 20 |
18 18 20 |
18 18 20 |
125 145 160 |
45 45 50 |
102 122 138 |
3 3 3 |
|
100 125 150 |
108 114.3*) 133 139.7*) 159 168.3*) |
220 250 285 |
20 22 22 |
20 22 22 |
20 22 22 |
180 210 240 |
52 55 55 |
158 188 212 |
3 3 3 |
|
200 250 300 |
216 219.1*) 267 273*) 318 323.9*) |
340 395 445 |
24 26 26 |
24 26 26 |
24 26 28 |
295 350 400 |
62 68 68 |
268 320 370 |
3 3 4 |
|
350 400 500 |
355.6*) 368 406.4*) 419 508 521 |
505 565 670 |
26 26 28 |
28 32 38 |
30 32 34 |
460 515 620 |
68 72 75 |
430 482 585 |
4 4 4 |
|
600 700 800 |
609.6*) 622 711.2*) 812.2*) 820 |
780 895 1015 |
28 30 32 |
725 840 950 |
80 80 90 |
685 800 905 |
5 5 5 |
||
|
900 1000 |
914.4*) 920 1016*) 1020 |
1115 1230 |
34 64 |
1050 1160 |
95 95 |
1005 1110 |
5 5 |
||
| Hub | BOLTS |
Approx Weight(kg) |
||||||||
| D3 | s | r | A~~ | Q'TY | Thread | D2 |
Din 2574 |
Din 2632 |
||
|
25 28 30 32 38 40 |
1.8 2.0 2.3 |
4 4 4 |
6 6 6 |
4 4 4 |
M12 M12 M12 |
(1/2") (1/2") (1/2") |
14 14 14 |
0.163 0.675 0.947 |
0.580 0.648 0.952 |
|
|
42 45 52 56 60 64 |
2.6 2.6 2.6 |
4 6 6 |
6 6 7 |
4 4 4 |
M12 M16 M16 |
(1/2") (5/8") (5/8") |
14 18 18 |
1.14 1.66 1.89 |
1.14 1.69 1.86 |
|
|
72 75 90 105 |
2.9 2.9 3.2 |
6 6 8 |
8 10 10 |
4 4 4 |
M16 M16 M16 |
(5/8") (5/8") (5/8") |
18 18 18 |
2.51 3.00 3.79 |
2.53 3.06 3.70 |
|
|
125 131 150 156 175 184 |
3.6 4.0 4.5 |
8 8 10 |
12 12 12 |
8 8 8 |
M16 M16 M20 |
(5/8") (5/8") (3/4") |
18 18 23 |
4.20 5.71 6.72 |
4.62 6.30 7.75 |
|
|
232 235 285 292 335 344 |
5.9 6.3 7.1 |
10 12 12 |
16 16 16 |
8 12 12 |
M20 M20 M20 |
(3/4") (3/4") (3/4") |
23 23 23 |
9.50 12.5 14.4 |
11.3 14.7 17.6 |
|
|
385 440 542 |
7.1 7.1 7.1 |
12 12 12 |
16 16 16 |
16 16 20 |
M20 M24 M24 |
(3/4") (7/8") (7/8") |
23 27 27 |
20.6 27.9 41.1 |
21.4 26.1 34.7 |
|
|
642 745 850 |
7.1 8.0 8.0 |
12 12 12 |
18 18 18 |
20 24 24 |
M27 M27 M30 |
(1") (1") (1/8") |
30 30 30 |
|||
|
950 1052 |
10.0 10.0 |
12 16 |
20 20 |
28 28 |
M30 M33 |
(1/8") (1/8") |
33 36 |
|||

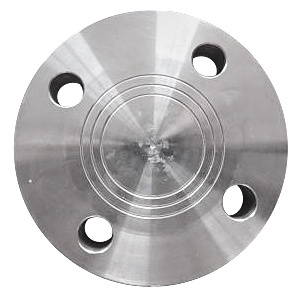

| Prod Model: | blind flange |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Stainless Steel |
| Manufacturing Way: | Casting |
| Standard: | GB |
| Type: | Welding Flange |
