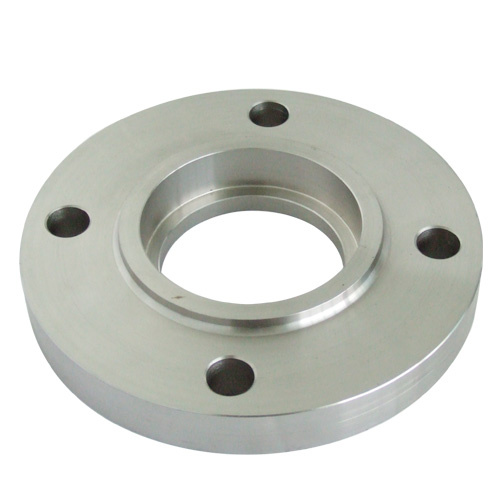

Socket weld flange, a popular type of pipe flange, was initially developed for use on small-sized high- pressure piping. The fabrication of this type of flange is similar to that of a slip-on flange. However, the internal pocket of a socket weld flange allows for a smooth bore and better fluid flow. When provided with an internal weld, the static strength of this flange is equal to slip-on flange, but the fatigue strength is 50% greater than double welding slip-on flanges. Smooth bore conditions in such a flange can easily be attained without having to bevel the flange face and, after welding, to re-face the socket weld flange as would be required with slip-on flanges. For this reason, the internally welded flange is popular in chemical process piping.
Materials:
Carbon Steel: ASTM A105, A350 LF1, LF2 CL1/CL2 LF3 CL1/CL2, ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70
Stainless Steel: ASTM A182 F304/304L, F316/316L, F316H, F316Ti, F321, F44 (UNS S31254)
Alloy Steel: ASTM A182 F1, F5/A, F9, F11, F12, F22, F91
Size: 1/8" NB TO 48"NB.
Rating: 150#, 300#, 400 #, 600#, 900#, 1500# & 2500 #.
