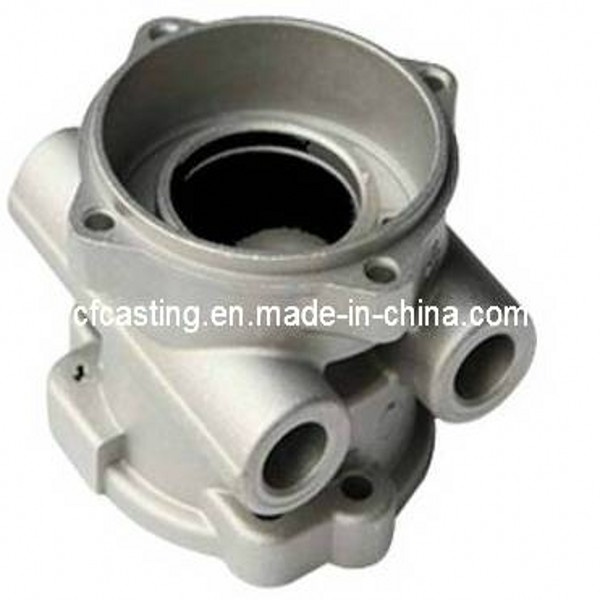

Productive Technology: Precision Investment Casting (Silcon Sol Process)
Material: Carbon steel:Stainless steel; Alloy steel.
Productive Process: Wax Mould-Shell Making-Dewaxing-Smelting&Casting-Shell Off-Blasting-Cutting&Polishing-Acid Washing-CNC Precised Machining
Casting facility: wax injector, electric furnace,heat treatment furnace,cutting head machine, shot-blasting machine, sand-blasting machine.
Machining facility: CNC,NC lathe,ordinary machine tools,linear cutting machine, NC milling machine, polishing machine.
Heat treatment:Normalizing/Quenching/Tempering.
Test facility:spectrometer, tensile test machine,impact tester, hardness test machine,CMM,PT.
Manufacturing process
1. Sample or Drawing by customer
2. Tooling proposal&Discussion
3.3D Tooling Design
4. Tooling production
5. Rough parts manufacture.
6. CNC Machining
7. Fitting&Finish
8. Tooling Measurement&Check
9. Assembly
10. Trial Production
11. Correction
12. Final Trial
13. Samples Inspection
14. Sample Approval by customer
15. Tooling Approval
Our Features
1. Materials: Gray iron, ductile iron, malleable iron, carbon steel, Alloy steel, stainless steel, aluminum, bronze, brass, etc.
2. Standard: JIS, DIN, ASTM, BS, GOST
3. Processes: Sand Casting, Investment Casting, Precision Casting, , Forging, Stamping, CNC Machining.
4. Surface treatment: Electro Zinc Plating, Hot deep zinc plating, Electrophoresis,
Powder coating, Painting, Shoot blasting etc.
5. Heat treatment: Induction furnace for raw material heating. Heat treatment of continuous quench+temper+carburization available.
6. Machining: CNC machining centers for further machining process.
Why Cooperate With Qingdao Chifine Machinery Co., Ltd
>> Price-- competitive price
We can organize suppliers and cargoes not only in North China but also in South China at low cost. Therefore, we can meet different inquiries from different clients.
>> Quality-- quality insurance
Assembly line production, high standard and strict requirements.
>> Delivery time-- short delivery time
We have professional R&D team, advanced equipment, skilled workers, which can bring high working efficiency.
>> Customer Service--
E-mail your suggestions or complaints, and we will handle them ASAP. Perfect after-sale service.
| Material |
stainless steel 304/316
|
Unit Weight
|
0.5kg~300kg
|
Packing
|
Wooden box with paper box inside
|
MOQ
| 100 PCS |
Delivery Time
|
15-20 days for samples.20-30 days for mass production
|
Payment Terms
|
L/C, T/T
|
Machining
|
CNC
|
Supply Capacity
|
1000 Metric Tons per Month
|
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
