Specifications

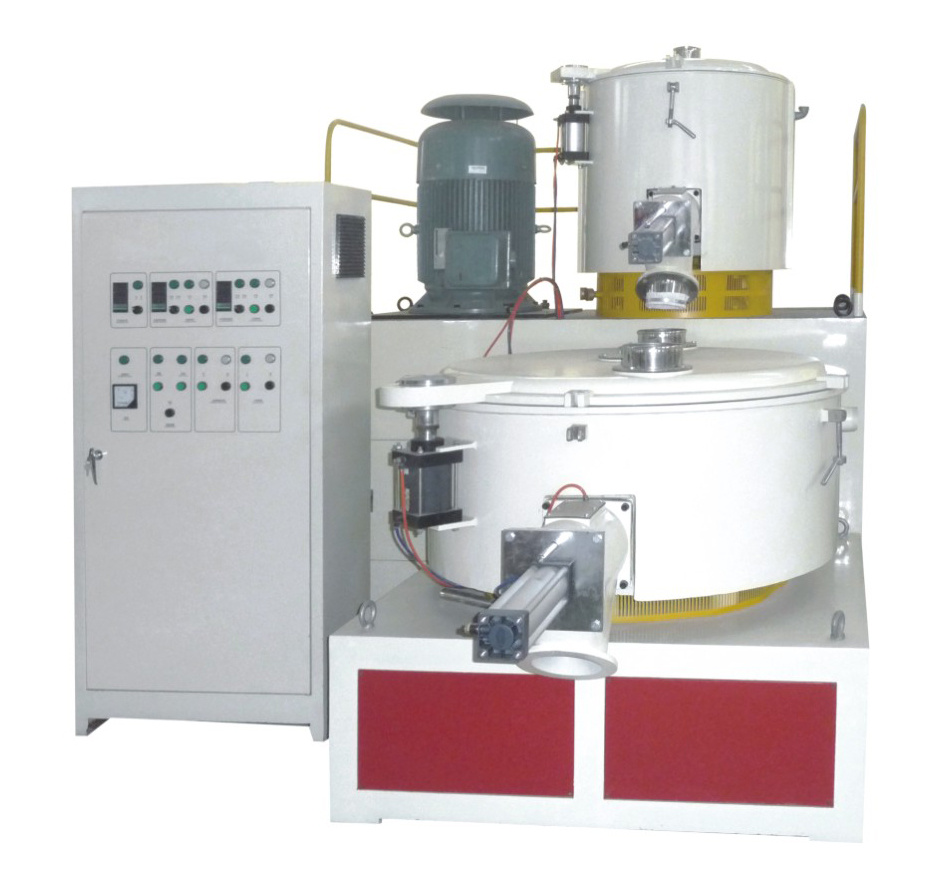

SRLZ series heating and cooling mixer unit
1. Certification: CE & ISO9001:2000
2. Easy to operate
3. Long term after servic
SRLZ series heating and cooling mixer unit
Feature:
1. The upper set is for hotting, and the lower one is for cooling;
2. We also can use the variable-frequency motor as your needs;
3. Five parts included in this unit: two containers, transmission agent, pneumatic components, cooling system and base structure.
4. The container:
A. The interior is made of stainless steel with polished finish;
B. The cover adopts aluminium alloy castings with inlet orifice and air exit hole, we also can produce it as your requirements;
C. The discharge hole is made of aluminium alloy; the valve is controlled in the force of pneumatic;
D. The paddle is made of stainless steel in the structure of top, center and bottom;
E. Temperature measuring equipment (TME) in the interior wall of the container;
Main Technical Specification:
| Model | Capacity(L) | Effective capacity(L) | Paddle rotate speed(r/min) | Motor power(kw) | Heating and cooling method | Discharge method | Water consumption(T/h) |
| SRLZ50/100 | 50/100 | 32/75 | 750/1500/180 | 7/11/3 | Electric or selffriction heating/water | Pneumatic | 3 |
| SRLZ100/200 | 100/200 | 75/160 | 630/1300/150 | 14/22/4 | Electric or selffriction heating/water | Pneumatic | 5 |
| SRLZ200/500 | 200/500 | 150/375 | 500/1000/100 | 30/42/7.5 | Electric or selffriction heating/water | Pneumatic | 5.8 |
| SRLZ300/600 | 300/600 | 225/450 | 375/750/100 | 40/55/11 | Electric or selffriction heating/water | Pneumatic | 6 |
| SRLZ300/1000 | 300/1000 | 200/640 | 430/860/100 | 40/55/15 | Electric or selffriction heating/water | Pneumatic | 7 |
| SRLZ500/1000 | 500/1000 | 375/640 | 430/860/100 | 55/75/15 | Electric or selffriction heating/water | Pneumatic | 7 |
| SRLZ500/1000 | 500/1000 | 375/1200 | 430/860/100 | 55/75/18.5 | Electric or selffriction heating/water | Pneumatic | 8 |
