Sprocket (E200B)
| Price: |
US $ 39.60/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union |

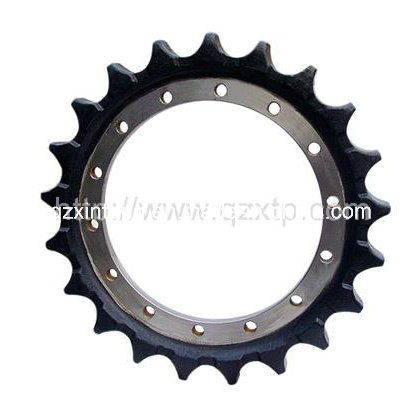

Sprocket (E200B)
Mold: Sand Casting
Material: 40Mn, 30SiMn, 35SiMn
Technology: Forging Casting
Finish: Smooth
Hardness: HRC51-56
Heat treatment: Quenching
Heat treatment depth: 3-5mm
Dimensions: International Standard
Port: Xiamen
Minimum Order Quantity: 2 Piece/Pieces
Supply Ability: 2000 Piece/Pieces per Month can improve
Payment Terms: T/T
Packaging Detail: Wooden case/pallet
Delivery Detail: 3-10 days after the payment
Certificate: ISO9002
Warranty time: 6 months
Service: OEM and after-sale service
| Model | Specification | A | Z | C | H | N | D |
| Model | Specification | A | Z | C | H | N | D |
| Komatsu | PC40 | 420 | 19 | 230 | 35 | 9 | 16 |
| Hyundai | R55-7 | 476 | 21 | 250 | 42.5 | 12 | 15.5 |
| PC50UU | 420 | 19 | 230 | 35 | 9 | 16 |
| R60-7 | 476 | 21 | 250 | 42.5 | 12 | 15.5 |
| PC60-1 | 551 | 25 | 265 | 38 | 12 | 16 |
| R200(22) | 649.7 | 23 | 402 | 70 | 22 | 17.5 |
| PC60-5 | 512 | 23 | 265 | 38 | 12 | 17 |
| R200(30) | 649.7 | 23 | 402 | 70 | 30 | 17.5 |
| PC60-6 | 532 | 21 | 265 | 37 | 12 | 17 |
| R210LC-7 | 654 | 21 | 402 | 72 | 22 | 18 |
| PC60-7 | 532 | 21 | 265 | 37 | 12 | 17 |
| R225-7 | 658 | 21 | 402 | 68 | 30 | 16.5 |
| PC75UU | 530 | 21 | 265 | 37 | 12 | 16 |
| R250 | 768 | 23 | 450 | 80 | 24 | 21 |
| PC90 | 540 | 19 | 324 | 40 | 15 | 18 |
| R290 | 768 | 23 | 450 | 80 | 24 | 21 |
| PC100-3 | 632 | 25 | 324 | 48 | 15 | 17.5 |
| R305-7 | 745 | 21 | 450 | 83 | 26 | 20.5 |
| PC100-5/6 | 606 | 21 | 324 | 45 | 15 | 17.5 |
| Sumitomo | SH120 | 650 | 23 | 324 | 56 | 15 | 18 |
| PC120-3 | 632 | 25 | 400 | 48 | 15 | 18 |
| SH200 | 655 | 21 | 402 | 64 | 22 | 17.5 |
| PC120-5 | 606 | 21 | 400 | 45 | 15 | 18 |
| SH260 | 650 | 23 | 324 | 56 | 15 | 18 |
| PC200-3 | 660 | 21 | 475 | 73 | 20 | 17.5 |
| SH280 | 602.5 | 21 | 362 | 76 | 21 | 17.5 |
| PC200-5/6 | 660 | 21 | 475 | 73 | 20 | 19 |
| SH280 | 665 | 23 | 403 | 70 | 22 | 19 |
| PC210 | 660 | 21 | 475 | 73 | 20 | 19 |
| SH300 | 745 | 21 | 450 | 84 | 26 | 22 |
| PC220 | 660 | 21 | 475 | 73 | 20 | 19 |
| SH430 | 765 | 23 | 451 | 85 | 20 | 21.5 |
| PC230-6 | 660 | 21 | 475 | 73 | 20 | 19 |
| Samsung | SE210 | 662 | 21 | 402 | 68 | 22 | 17 |
| PC300-3 | 728 | 22 | 525 | 86 | 20 | 19.5 |
| SE210-3 | 650 | 23 | 350 | 71 | 16 | 21 |
| PC300-5 | 728 | 22 | 525 | 86 | 20 | 21.5 |
| SE280 | 771 | 23 | 450 | 84 | 16 | 21.5 |
| PC300-6 | 736 | 21 | 526 | 85 | 20 | 21.5 |
| SE350-2 | 745 | 21 | 450 | 90 | 24 | 21 |
| PC350-6 | 728 | 22 | 525 | 86 | 20 | 21.5 |
| Volvo | EC210 | 660 | 21 | 403 | 68 | 12 | 17 |
| PC400-3/5 | 810 | 23 | 570 | 90 | 26 | 21.5 |
| EC240 | 660 | 21 | 410 | 68 | 18 | 19 |
| Hitachi | EX40 | 415 | 19 | 230 | 45 | 9 | 16 |
| Kobelco | SK200 | 660 | 21 | 410 | 65 | 22 | 19 |
| EX60-1 | 532 | 21 | 290 | 48 | 12 | 17.5 |
| SK07-2 | 664 | 23 | 404 | 76 | 16 | 22 |
| EX60-2/3 | 532 | 21 | 330 | 48 | 12 | 17.5 |
| SK07N2 | 720 | 25 | 462 | 74 | 20 | 21.5 |
| EX60-6 | 532 | 21 | 265 | 30 | 12 | 16 |
| SK100 | 598 | 21 | 324 | 48 | 15 | 17.5 |
| EX70 | 532 | 21 | 330 | 40 | 12 | 18 |
| SK120 | 598 | 21 | 324 | 48 | 15 | 17.5 |
| EX100 | 592 | 21 | 356 | 64 | 16 | 18 |
| SK200-6 | 655 | 21 | 410 | 65 | 26 | 19.5 |
| EX120 | 592 | 21 | 356 | 64 | 16 | 18 |
| SK210 | 655 | 21 | 410 | 65 | 18 | 20 |
| EX200-1 | 660 | 23 | 415 | 70 | 16 | 21.5 |
| SK220-3 | 715 | 23 | 454 | 65 | 20 | 21 |
| EX200-2 | 656 | 21 | 432 | 71 | 16 | 22 |
| SK220-1 | 695 | 21 | 454 | 85 | 20 | 21 |
| EX200-3/5 | 656 | 21 | 420 | 74 | 16 | 21.5 |
| SK230-6 | 655 | 21 | 410 | 65 | 26 | 19.5 |
| EX220-1 | 660 | 23 | 415 | 70 | 16 | 21.5 |
| SK300 | 765 | 23 | 436 | 90 | 26 | 21.5 |
| EX220-2 | 656 | 21 | 432 | 71 | 16 | 22 |
| SK300-5 | 695 | 21 | 435 | 85 | 26 | 22 |
| EX270-1 | 701 | 21 | 466 | 72 | 16 | 22 |
| SK310 | 695 | 21 | 435 | 85 | 26 | 22 |
| EX300-1 | 701 | 21 | 465 | 72 | 16 | 22 |
| SK320 | 745 | 21 | 450 | 78 | 26 | 22 |
| EX300-2/3 | 701 | 21 | 465 | 72 | 20 | 22 |
| Kato | HD400-2 | 540 | 19 | 325 | 59 | 15 | 18 |
| EX300-5 | 745 | 21 | 481 | 88 | 20 | 21.5 |
| HD400-7 | 590 | 21 | 325 | 52 | 15 | 17 |
| EX400-1 | 821 | 23 | 556 | 90 | 24 | 24 |
| HD450 | 594 | 21 | 324 | 58 | 15 | 17 |
| EX450-5 | 821 | 23 | 556 | 90 | 24 | 24 |
| HD512 | 590 | 21 | 325 | 52 | 15 | 17 |
| UH083 | 659 | 23 | 370 | 71 | 16 | 22 |
| Daewoo | DH55 | 465 | 21 | 251 | 38 | 12 | 16 |
| UH07-7 | 659 | 23 | 370 | 71 | 16 | 22 |
| DH220-3/5 | 655 | 21 | 402 | 68 | 22 | 17.5 |
| Caterpillar (CAT) | E70B | 555 | 25 | 265 | 40 | 12 | 15 |
| DH220-3/5 | 655 | 21 | 402 | 68 | 30 | 17.5 |
| E110B | 594 | 21 | 324 | 56 | 15 | 17.5 |
| DH300 | 766 | 23 | 450 | 76 | 24 | 22 |
| E120B | 594 | 21 | 346 | 55 | 15 | 17.5 |
| DH330-3 | 766 | 23 | 450 | 76 | 16 | 22 |
| E180 | 660 | 23 | 415 | 70 | 22 | 17 |
| Mitsubishi Motors | MS180 | 660 | 23 | 415 | 70 | 22 | 17 |
| E200B | 663 | 21 | 415 | 64 | 14 | 22 |
| Other | RH140 | 574 | 25 | 240 | 55 | 6 | 12.5 |
| E215 | 594 | 21 | 324 | 56 | 15 | 17.5 |
| RH171 | 540 | 19 | 320 | 65 | 0 | 0 |
| E300B | 766 | 23 | 450 | 76 | 16 | 21.5 |
| RH50UU | 420 | 19 | 224 | 45 | 9 | 23 |
| E312 | 594 | 21 | 325 | 55 | 15 | 17.5 |
| WLT60 | 431 | 19 | 250 | 40 | 12 | 15 |
| E320 | 660 | 21 | 456 | 67 | 16 | 21.5 |
| 601006 | 420 | 19 | 230 | 44 | 12 | 15 |
| E325 | 700 | 21 | 451 | 78 | 20 | 21 |
| RH-JG60 | 512 | 23 | 240 | 35.5 | 16 | 12.5 |
| E330 | 815 | 23 | 515 | 80 | 16 | 25 |
| RH-HN60 | 512 | 23 | 230 | 38 | 9 | 15.5 |
| Prod Model: |
E200B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |

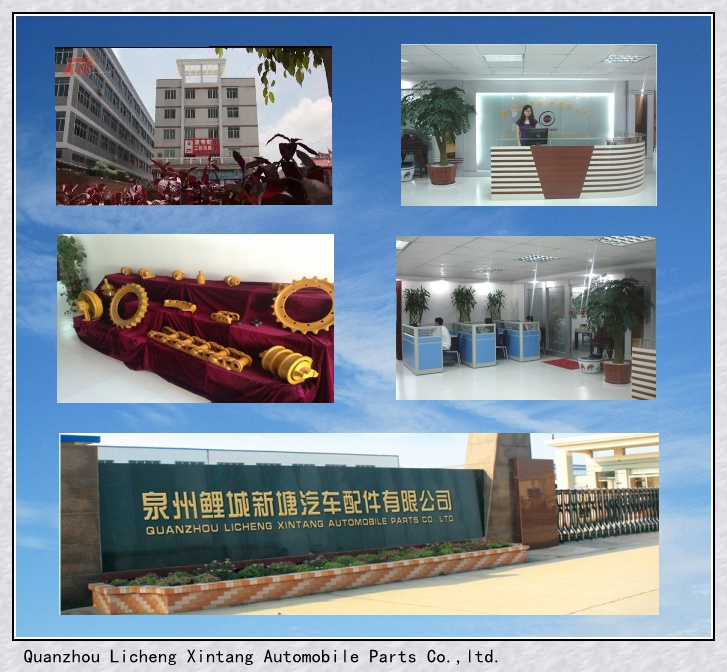

Quanzhou Licheng Xintang Automobile Parts Co., Ltd., "XTP" Parts was founded in 1984, we are leading manufacturer & exporter specialized in excavator undercarriage and bulldozer parts such as bottom rollers, top rollers, idler, sprocket, track link, track shoes, filter, bushing, pin, CAT engine parts, and models of Hitachi, Komatsu, Caterpillar, Kato, Kobelco, Sumitomo, Hyundai, Samsung, Daewoo, Yanmar, Kubota, Mitsubishi, Sany and more.
"XTP" Parts suply to China Sany and Xiagong industry to operate in coordination in long-term. We export to Russia, USA, Turkey, Australia, Singapore, India, Ghana, Fiji, Tanzania, Vietnam, Laos, Brazil, etc, .
Under the guidance of a strong multidisciplinary management team, the company has established a fully equipped machinery shop with highly advanced computerized numeric control machines. It has specialized in tailor-made casting and forging components as per the requirement of its buyers, matched to OEM standards.
Having been in the industry for the past 30 years, we can offer expert technical advice and repairs for all your excavator & bulldozer undercarriage needs. Our vast experience and knowledge will provide our customers with the highest quality and most efficient service available.
