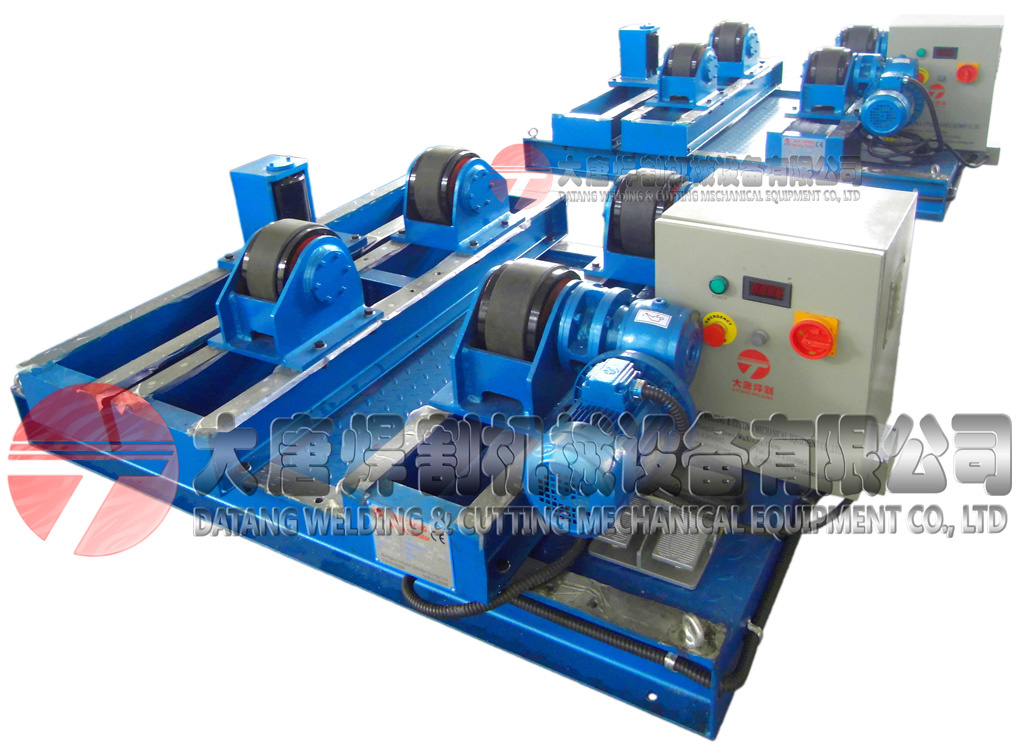

This welding rotator has two types including self alignment and adjustable. It can suit for the diffrence diameter tank within the range and achieve the stepless speed adjusting under the setted welding parameter, which has the good character as small noise on the transmission and steady rotation for the working table.
CE certificate
Can design according to customers' requirement
Equipment consistence:
1 set powered tank rotator and 1 set idle tank rotator and electrical control system.
L Powered tank rotator and idle tank rotator has the welded structure pedestal, which is frame structure and get rid of the stress after welding. It has the character of large loading capability and long time using life. At the same time, two roller holes on the pedestal is machined in one time, which ensures the concentric of both hole.
L Two clamp racks are installed on the tank rotator, it has two rollers, which will touch the workpiece well when the workpiece is put on the roller and the clamp rack will wave around the fixed shaft, so that the roller will suit for the different diameter workpiece and ensure the workpiece cover angle during the range of 45° To 110° .
L The roller is combined by rubber and metallic wheels, the metallic wheel adopts steel forging part, which is quenched on the roller surface with high hardness, the rubber wheel has the character as anti-press, anti-abrading and long time using life.
L The ruducer adopts worm gear and gear wheel couple reducing part, which has the character as resonable structure, steady runing, small cubage, large torque and lower noise, etc.
L The powered motor is protected by the electric components, the veriable frenquency speed adjusting, steady and reliable capability.
L All outsourcing parts are from the country professor manufacturers and ensure the quality and capability.
Model
Parameter |
DKG-5 |
DKG-10 |
DKG-20 |
DKG-40 |
DKG-60 |
DKG-80 |
DKG-100 |
DKG-650 |
|
Unit Loading (T) |
5 |
10 |
20 |
40 |
60 |
80 |
100 |
650 |
|
Min suitable size of job (mm) |
φ250 |
φ320 |
φ500 |
φ600 |
φ750 |
φ850 |
φ1000 |
φ1800 |
|
Max suitable size of job(mm) |
φ2300 |
φ2800 |
φ3500 |
φ4200 |
φ4800 |
φ5000 |
φ5500 |
Φ8000 |
|
Rubber wheel diameter (mm) |
φ250 |
φ300 |
φ350 |
φ400 |
φ450 |
φ500 |
φ500 |
|
|
Rubber wheel thickness (mm) |
100 |
120 |
120 |
120 |
120 |
120 |
120 |
|
|
Metallic wheel diameter (mm) |
φ240 |
φ290 |
φ340 |
φ390 |
φ440 |
φ490 |
φ490 |
Φ800 |
|
Metallic wheel thickness (mm) |
20 |
25 |
30 |
40 |
50 |
60 |
80 |
300 |
|
Linear speed (m/h) |
6-60 |
|
Motor power (kw) |
0.75 |
1.1 |
1.5 |
3 |
4 |
4 |
5.5 |
7.5×2 |
|
Speed adjusting way |
VFD |
Wuxi Datang Welding & Cutting Mechanical Equipment Co., Ltd. is a comprehensive manufacturing established in 2006 in China. Our main products are column & boom, rotators, positioners etc. Welding equipments and H-beam production line.
We build up our expertise through many years studying and experience, and our products can suitable for almost welding needs. The rang includes Oil & Gas Installations, Constructors and Heavy Engineering and Steel Structure.
We carry out a strict quality management system in accordance with ISO9001 requirements, and our products also have been CE Certificate. We do business with mostly countries and keep quality 100% and competitive prices.
We do business with more than 30 countries, and we are supplier for some world top 500 companies, such as Alstom, Oerlikon etc.
If you are interested in some of our products, please feel free to visit our website or contact us for more information and pictures. We are looking forward to establishing long-lasting business relationships with you in the near future.
