Features:

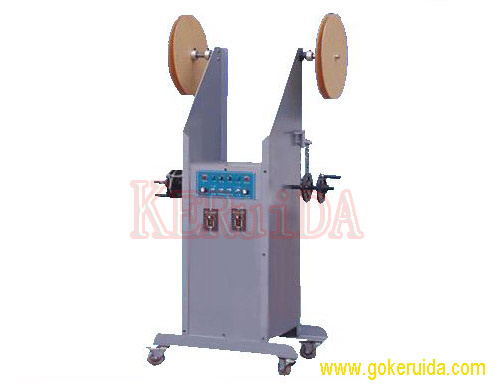

This model adopts electronic sensing automatical control, using hing-speed motor, with high sensitivity, less failure, forward/backward rotation, and lownoise. Based on press feeding speed the speed is adjustable, with single-side and double-side coiling. The power is single phase 220V commercial power; It occupies little space, the chassis is installed with brake wheel, convenient in mobility, capable of keeping stability during the work. Rational and novel designe, this model has unique and elegant style applicable for various material coiling from upper end and strip material, e. G. Electric wire, wire material etc. (Note: Total weight never exceed 20kg).
| Models | SQ-01 | SQ-02 | SQ-03 | SQ-04 | SQ-05 | SQ-06 |
| Materal Weight(kg) | 20 | 20 | 20 | 20 | 20 | 20 |
| Coil O.D.(mm) | φ600 | φ600 | φ600 | φ600 | φ600 | φ600 |
| Speed(m/min) | 20 | 20 | 20 | 20 | 20 | 20 |
| Power | 220V | 220V | 220V | 220V | 220V | 220V |
| Spool Shafts | 1–2 | 1–2 | 2–4 | 2–4 | 2–4 | 2–4 |
| Recoil Direction | Right | Left | Left←→Right | Right | Left | Left←→Right |
| Machine Dimensions(mm) | 405×450×1590 | 405×450×1590 | 600×410×1590 | 800×500×1850 | 800×500×1850 | 800×500×1650 |
| Weight(kg) | 67 | 67 | 95 | 120 | 120 | 120 |
KERuiDA is a German-funded corporation, one of the well-known brands in the world. It is specialized in punch machine and mould & die making.
Punch machine making:
In 2005, Keruide Machinery Equipment Co., Ltd. was set up in Dongguan. Introduce Germany advanced technology and professional R&D, to design and make KERuiDA big three round high-speed precision automatism punch and a range of automatic machinery and equipment. We followed the policy of "People-oriented, Morality for the first". With professional technical R&D team, to research a new type of superhigh speed punch according to the customers' special needs. We always continue to improve our products, and due to our high quality and good services, we received the vigorous support and high trust from our customers. Thus, it created "Dongguan Keruide Machinery Equipment Co., Ltd. " a good image in business. And we take "creating the first brand of nation" as a goal.
Mould and die making:
We can provide one-stop service including design and fabrication of tooling, molding products and secondary process such as Silk Screen Printing, Spray Printing and Pad Printing etc. Due to the rich experience, competitive price, on-time delivery and high quality, our moulds and products have been sold very well all over the world, especially in European countries and U. S. In order to adapt to the pace of market development, we earned ISO 9001-2000 certification in 2005, which embodies our efforts in quality management. Advanced equipment, excellent employees, sophisticated techniques, superior quality management, responsive service system, all of these will contribute to our competition. Therefore, we have always kept long-lasting trustworthiness and harmonious Win-win relationship with our customers.
We always keep in mind: To survive on quality, to profit from management, always keep improving. And our slogan is "Take customer's interests firstly, Think what you think, Worry what you worry. "
Therefore, "Choose us, you choose the success! "
