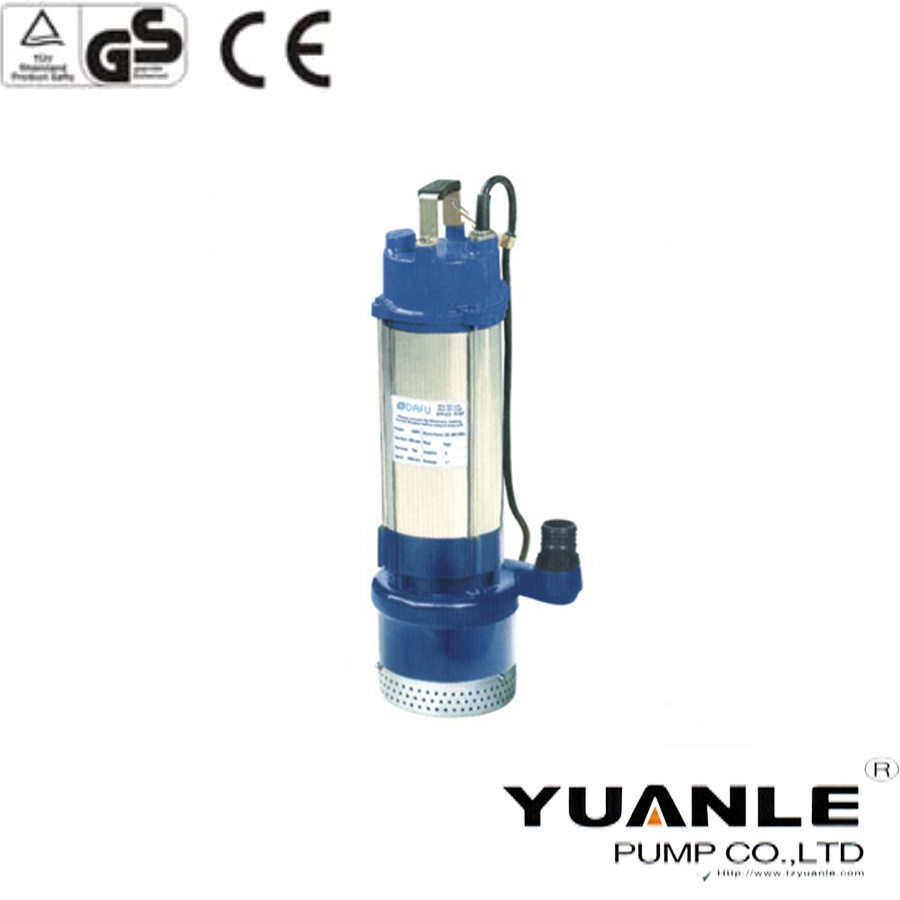

SUBMERSIBLE DISCHARGE PUMP
APPLICATION
Applied to pumping such liquid which is not clean, with solid matter or frictional matter, low viscous, lcorrosive, crystallizable, chemically neutral and close to water. Such as:
1. Domestic wastewater treatment system
2. School, hospital, community wastewater treatment system
3. Irrigation
Features
1.100% copper wire
2. Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision
3. Double sides mechanical seal graphite&ceramic
4. Demagnetization of stainless steel nuts
5. Anti-rust treatment castings and electrophoresis
6. New testing equipment
|
TYPE |
Input W |
Power HP |
H.max(m) |
Q.max(m) |
Packing Dimension(mm) |
G.W(kg) |
|
SPA6-32-1.5(F) |
1500 |
2 |
34 |
216 |
275×225×560 |
26 |
|
SPA6-28/2-1.1A(F) |
1100 |
1.5 |
30 |
208 |
275×225×535 |
23 |
|
SPA6-39/3-1.5A(F) |
1500 |
2 |
42 |
208 |
625×285×205 |
28.5 |
|
SPA3-70/3-2.2A(F) |
2200 |
3 |
78 |
100 |
590×350×250 |
36 |
YUANLE PUMP is a Chinese pump manufacturer, offering products not only for agricultural area, but industrial, commercial, residential areas and public utilities as well. Our main products include the surface pump, submersible pump, sewage pump, deep well pump, and multistage pump, which enjoy high reputation in the domestic and overseas markets. Additionally, we also have rich experience in exporting and supplying high quality products with excellent service.
