Sol Precision Casting, Mechanical Parts Precision Castings

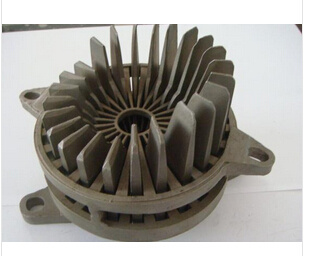

Name: Precision Casting Cabinet parts
Type: force structure
Model: 40Cr steel
Brand: Yong Sheng Precision Casting
Customization: can be formulated with customer demand
Item Number: YSMP
Description: Auto Parts Tools casting
Casting process: investment casting
Material: carbon steel casting, carbon steel casting
Product Description
Casting Process: Water glass investment casting process
Material Standards:... GB.ASTM AISI DIN BS JIS.
Maximum Size: 1000mm
Weight range: 0.10-100Kg
Casting Dimension Tolerance: CT7 level
Annual production: 8,000 tons
Advanced lost wax casting process to produce carbon steel, alloy steel precision castings mainly a domestic investment casting of large-scale professional production base, set Precision Casting and mechanical processing plant mainly exported to Europe and Australia and Japan and many other countries. Enterprises to implement a modern enterprise management mode, the full implementation of ISO9001: 2000 and TS16949: 2002 quality management system combines, and enhance the environment and maximize business performance.
Sol physicochemical parameters mainly by: SIO2 content, density, Na2o content, PH value, kinematic viscosity, colloidal particle diameter, these physical and chemical parameters affecting the powder-liquid ratio main shell strength, stability and paint coatings. Because precision casting business is difficult to detect these physicochemical parameters, so that on the one hand to strengthen the supply side of the selection, evaluation and confirmation.
    On the other hand, the surface layer and the backing layer should choose to use different sizes of silica, the surface layer of silica select S-830, S-1430 Select the backing layer of silica sol. Coatings formulated in precision casting method will directly affect the quality of the casting, that we first understand the preparation of the coating. Usually before adding silica coating formulation, coupled with a wetting agent mix of refractory powder is added with stirring, and finally add defoamers. In order to ensure quality when coating, surface coating all of the new material, mixing time should be greater than 24h can be used, as part of new ingredients, mixing time can be shortened to 12h. Transition layer and a backing layer coating stirring time may be less than the surface-layer coating, with all new paint is stirred for longer than 10h, part of the new feature, the stirring time can be shortened by half. With a good paint if not used, it should be capped to prevent evaporation.
Best not with paint in Shell operations, and set up a special coating formulation equipment.
