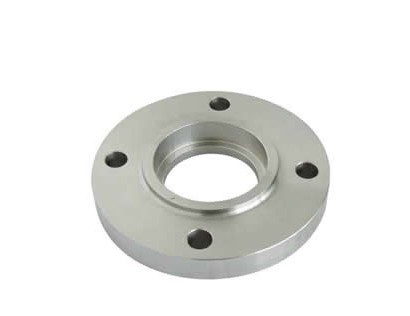

SOCKET WELDING FLANGES
Specifications
SOCKET WELDING FLANGES
1)Material: ASTM A105 Steel
2)Standard: ANSI B16.5
3)Pressure: 150LBS/300LBS/600LBS
4)Size: 1/2~24"
5)Properties: Forged steel flange is made of high quality carbon steel with skillful workmanship possessing splendid strength and toughness properties, It is widely used in pipeline works of petrochemical industry, chemical industry, chemical fertilizer equipments, etc.
Welding slip-on flanges. Smooth bore conditions in such a flange can easily be attained without having to bevel the flange face and, after welding, to re-face the socket weld flange as would be required with slip-on flanges. For this reason, the internally welded flange is popular in chemical process piping. The counter bore is slightly larger than the Outer Diameter of the matching pipe, allowing the pipe to be inserted. A restriction is built into the bottom of the bore, which acts as a shoulder for the pipe to rest on, and has the same I. D. Of matching pipe. The flow is not restricted in any direction.
Uses of socket weld flanges:
They are ideal for small diameter applications.
They are used for high pressure applications.
Socket weld flanges have an internal recess on the inside diameter which allow for a smooth flow of the process fluid.
They create a smooth bore with the proper welding and grinding
Main market
North America, South America, Eastern Europe, Southeast Asia
Africa, Oceania, Mid East, Eastern Asia, Western Europe
ISO9001: 2008 approved
Package: In plywood cases
Payment: 30% deposit, 70% balance after cargos shipped.
Delivery date: 30 days since firm order placed.
Packaging & Delivery
Packaging Detail: Plywood cases
Delivery Detail: 30~45 days
Ordering
1)Material and standard
2)Size(1/2"~24")
3)Pressure(150lbs/300lbs/600lbs)
4)Category(SW)
5)Quantity
